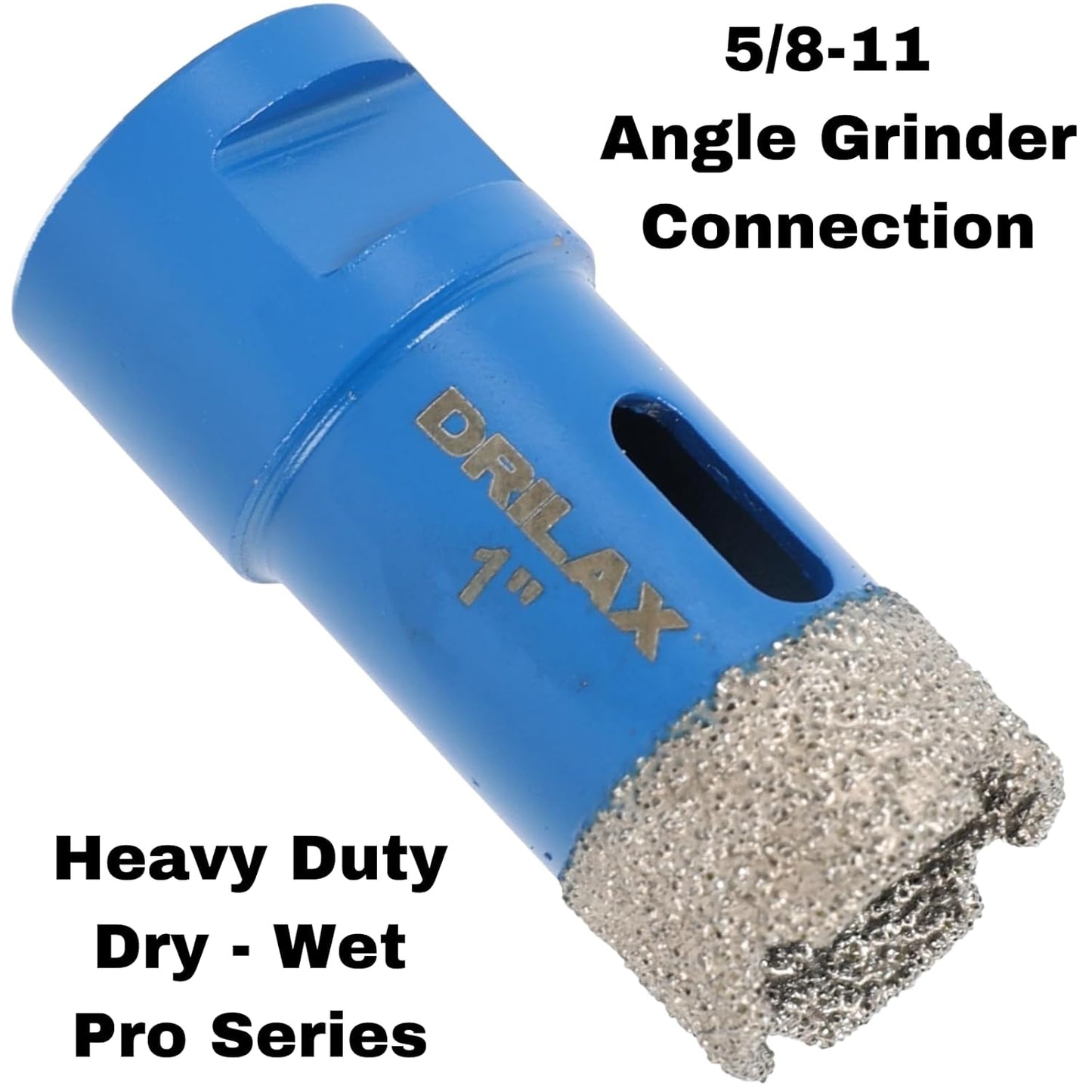

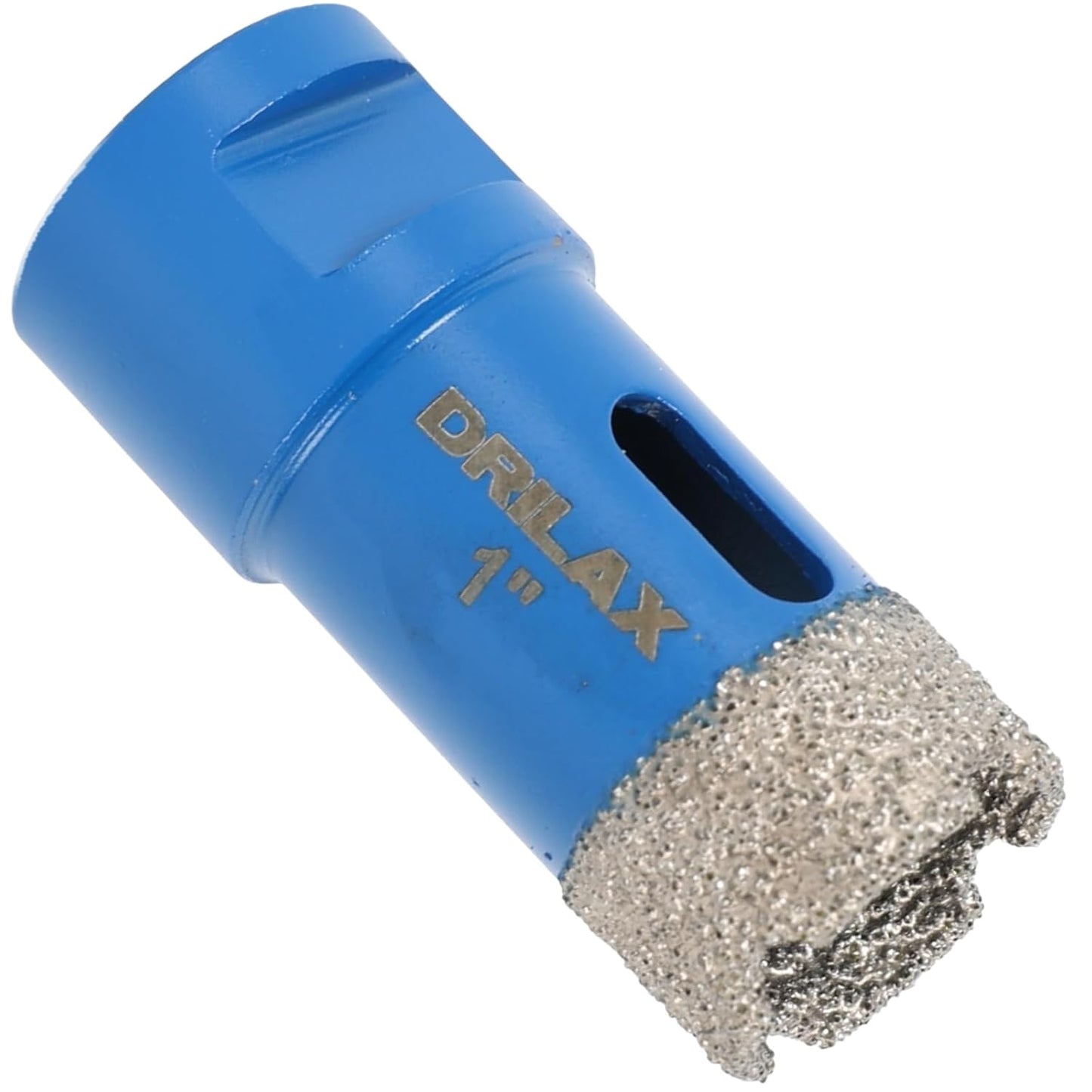

1 Inch Diamond Hole Saw | 5/8"-11 Angle Grinder | Concrete & Tile

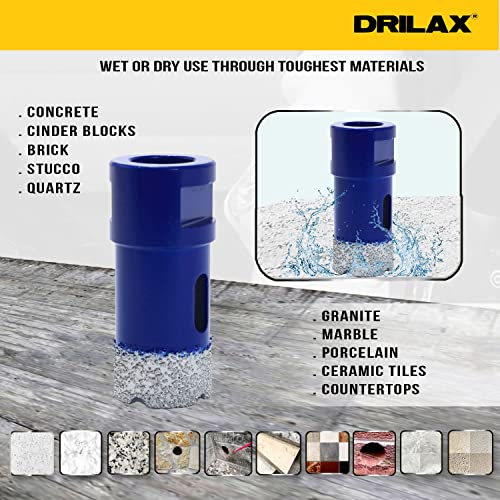

• Materials: Quartz, granite, concrete, brick, masonry, porcelain tile, ceramic tile, marble, and slate.
• Tool Compatibility: Direct mounting on 5/8"-11 threaded angle grinders. Compatible with standard power drills only if used with a separate hex adapter.
• Note: Not for use on glass, mirrored surfaces, or fragile decorative tiles.

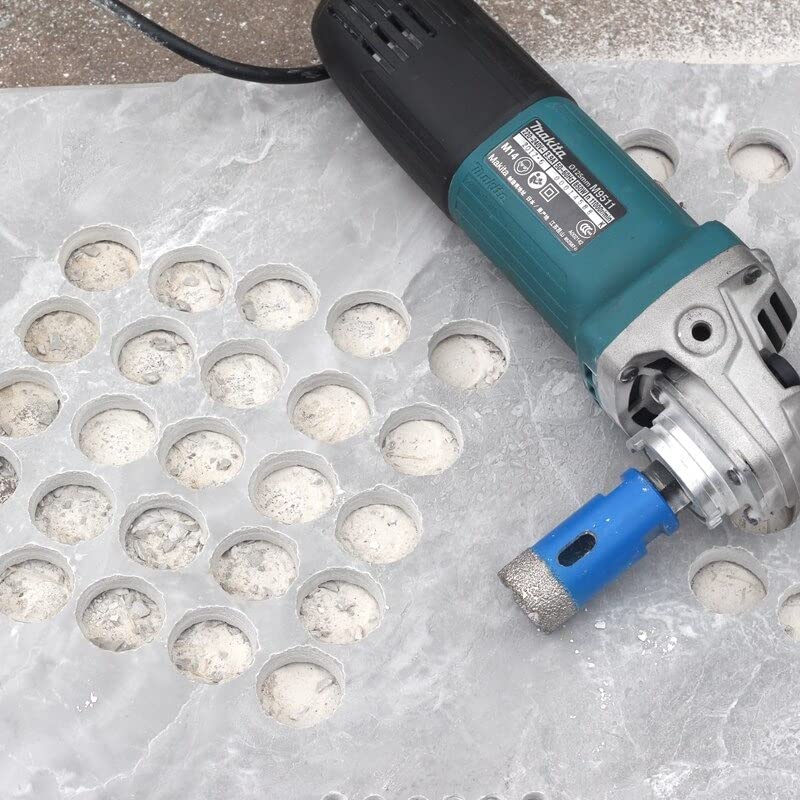

• Angle Grinder Mounting: Thread the hole saw directly onto the 5/8"-11 spindle of your angle grinder. Ensure the connection is tight before operation.

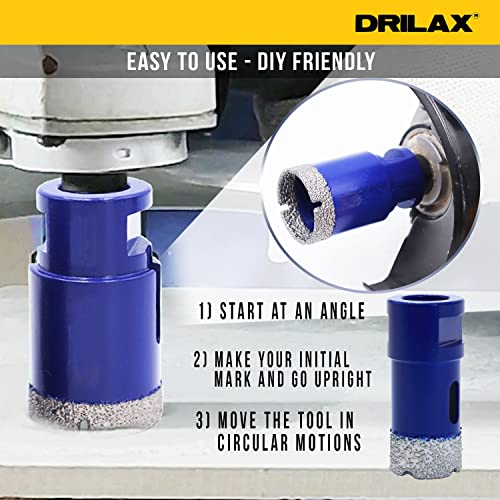

• Starting the Cut: Start at a 45-degree angle to create a "crescent" notch. This prevents the bit from wandering. Once the groove is established, slowly tilt the tool to a 90-degree angle.
• You can also cut a guide out of scrap wood. that will hold and guide the tool in place.
• Operating Technique: Use high RPMs and light, steady pressure. Let the vacuum-brazed diamonds do the cutting; do not force the tool into the material.

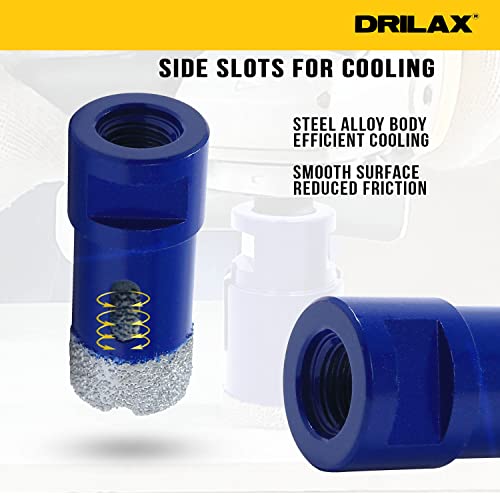

• Heat Management: For deep cuts in stone or masonry, periodically back the bit out of the hole to clear dust and allow the air-cooled side slots to manage heat buildup.

• Electrical & Data: Ideal for creating clean pass-throughs for conduit, security camera wiring, and electrical cables in stone or tile walls.
• Plumbing Supply Lines: Perfectly sized for passing 1/2" or 3/4" PEX and copper supply pipes through porcelain tile floors and masonry.
• Anchor Points: Precision core drilling for heavy-duty mounting bolts and architectural hardware in natural stone or concrete.
• Kitchen & Bath: Drilling access points for specialized reverse osmosis (RO) faucets or soap dispensers in quartz and granite countertops.

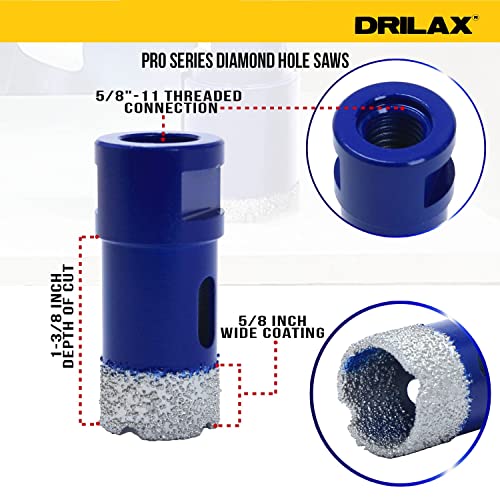

• Hole Diameter: 1 inch
• Cutting Depth: 1-3/8 inches

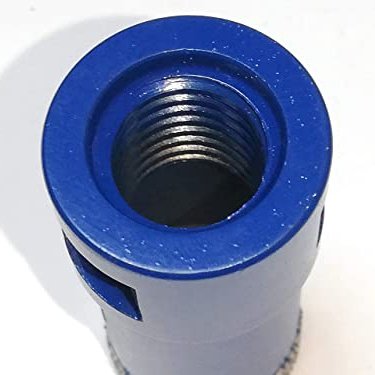

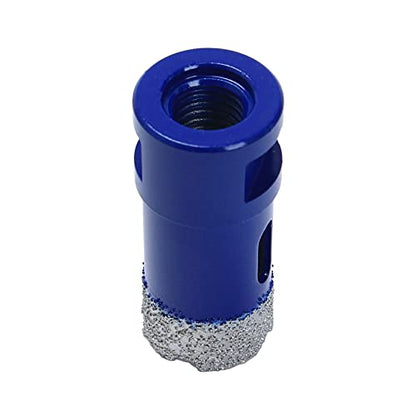

• Thread Size: 5/8"-11 (Standard Angle Grinder)
• Adapter Included: No

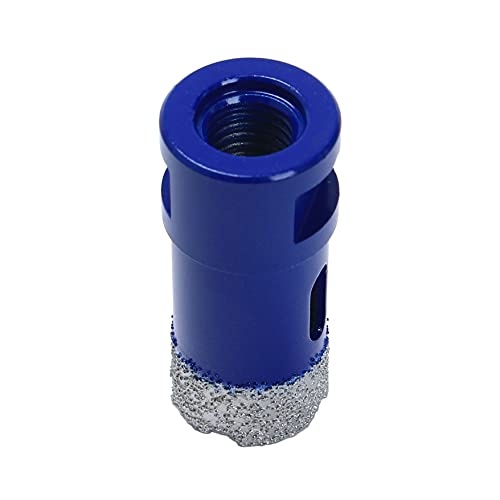

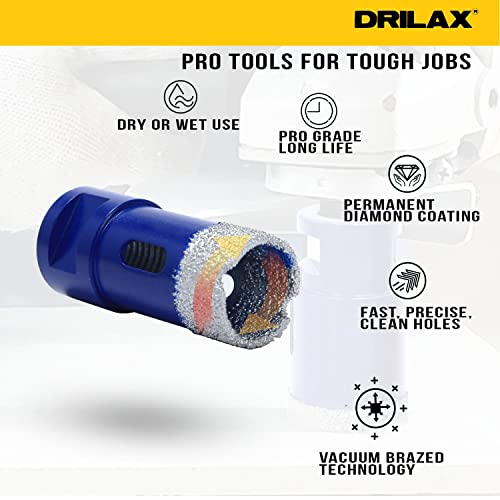

• Construction: Solid Alloy Steel Body with Vacuum Brazed Diamond
• Use Type: Optimized for Dry or Wet Drilling

Q: Do I need to use water?
A: No. This hole saw is specifically designed for dry drilling. However, wet use is possible if you prefer it for extra cooling or dust suppression.

Q: What tools does this fit?
A: It features a 5/8"-11 threaded connection, which is the standard size for most North American angle grinders.

Q: Can I use it with a standard drill?
A: Yes, but it requires a 5/8"-11 to Hex Shank adapter (sold separately) to fit into a standard 3/8" or 1/2" power drill chuck.

Q: How thick of a material can it cut?
A: The cutting depth is 1-3/8 inches, which is perfect for standard 3cm countertops, floor tiles, and masonry slabs.
