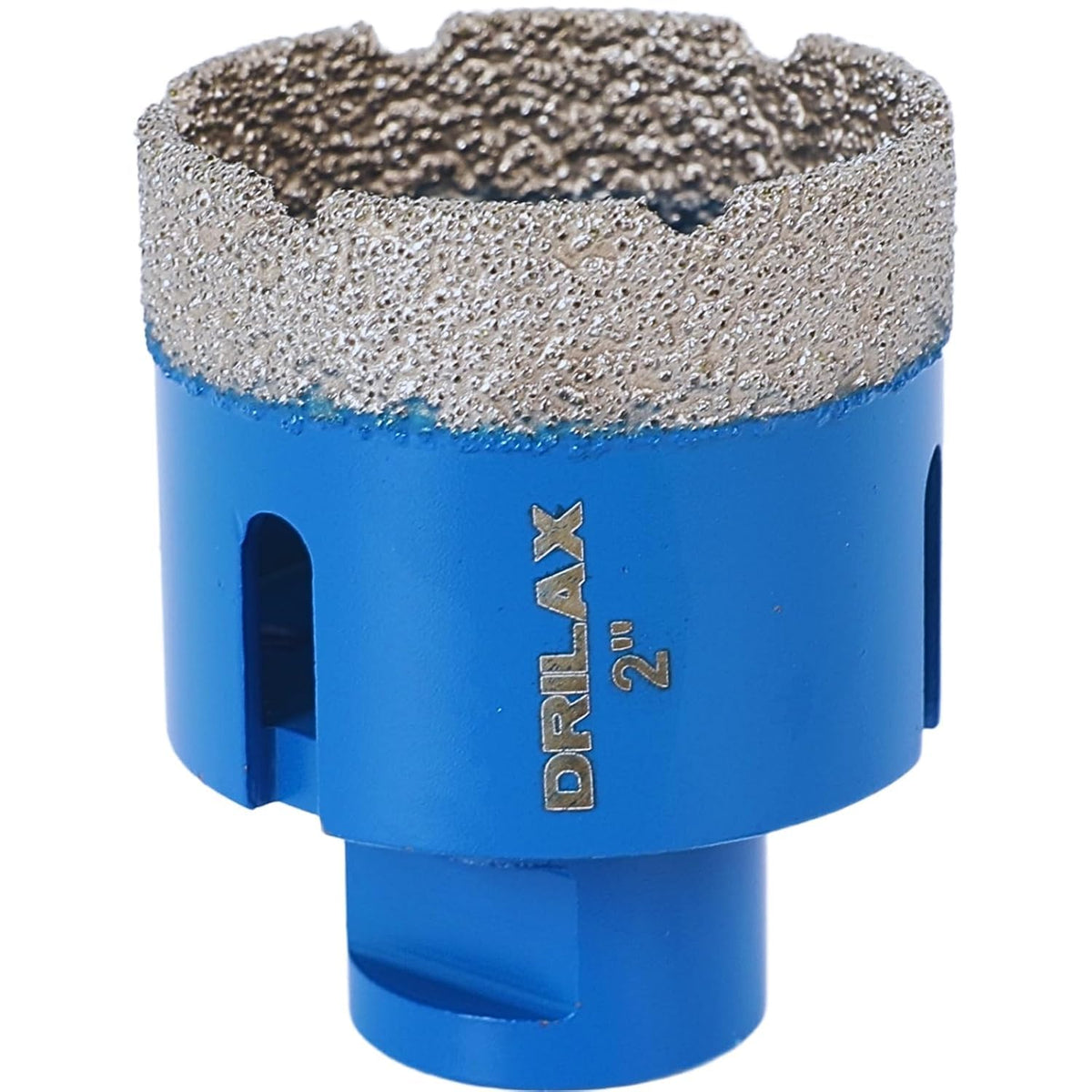

2 Inch Diamond Hole Saw | 5/8"-11 Angle Grinder | Stone, Brick & Tile

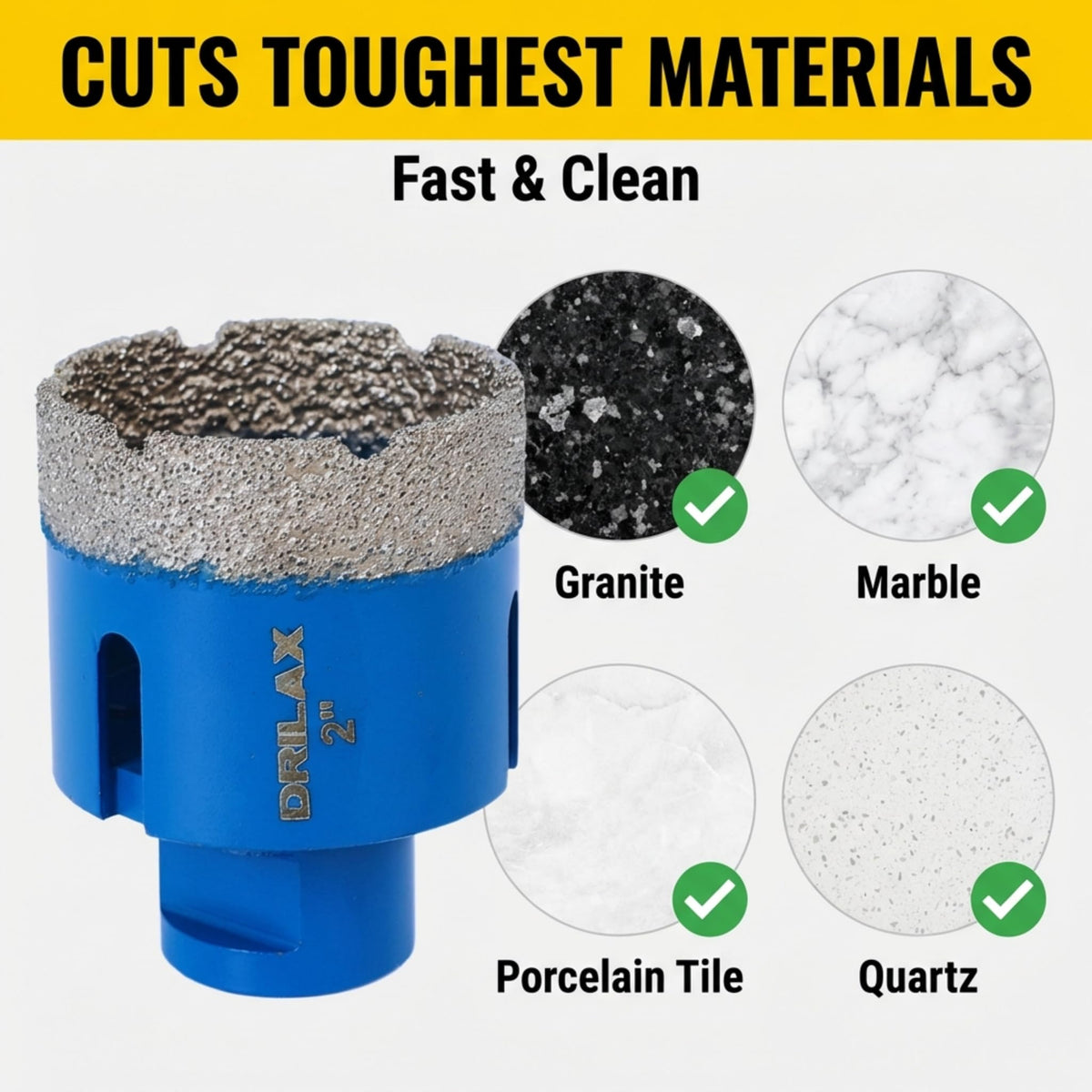

• Materials: Porcelain tile, ceramic tile, granite, quartz, marble, slate, brick, cinder block, and non-reinforced masonry.
• Tool Compatibility: Designed for direct fit on standard angle grinders and professional core drilling machines with 5/8"-11 spindles.
• Note: Not recommended for glass, mirrored surfaces, or fragile decorative tiles due to the aggressive nature of vacuum-brazed diamonds.

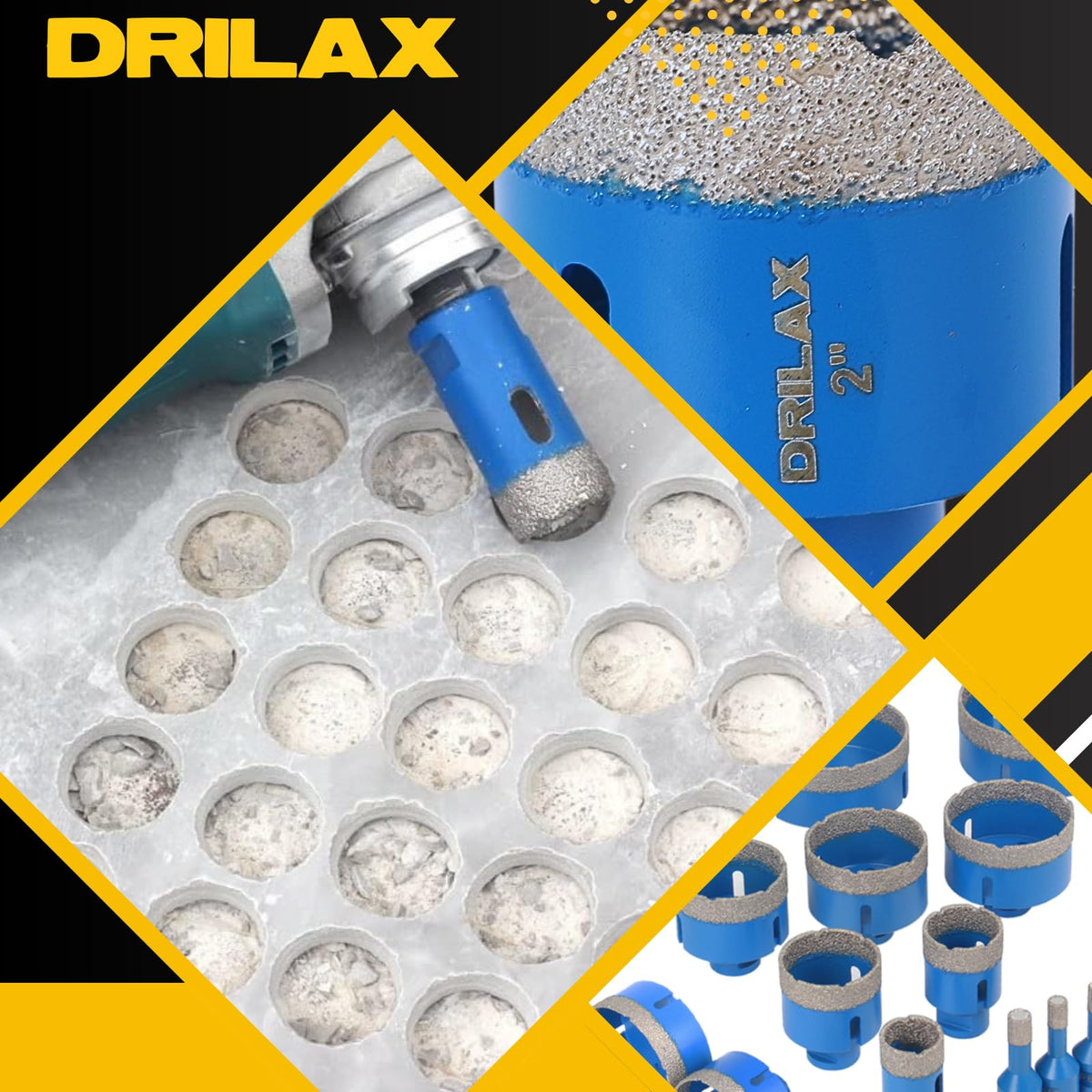

• Angle Grinder Mounting: Thread the hole saw directly onto the 5/8"-11 spindle of your angle grinder. Ensure the connection is tight before operation.

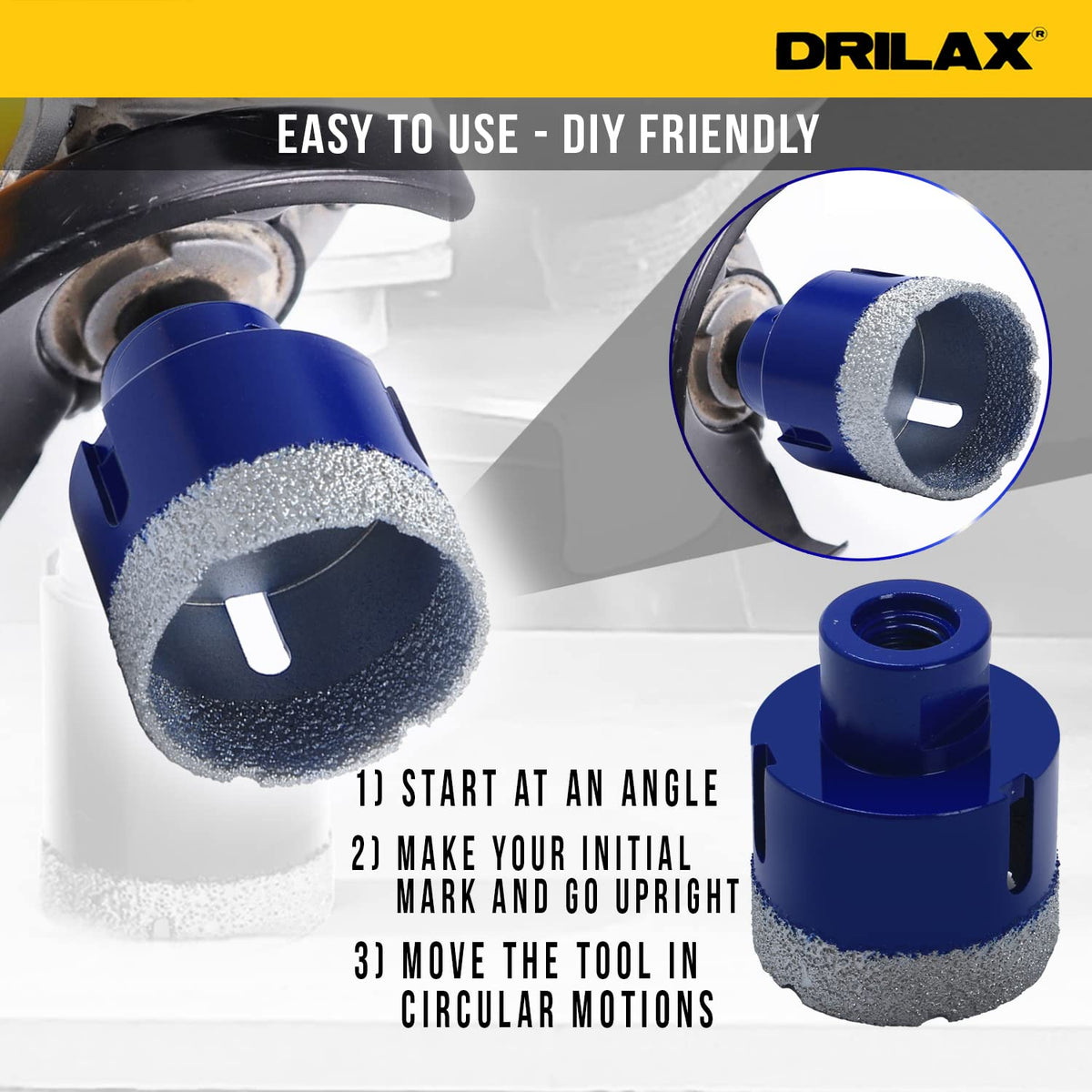

• Starting the Cut: Start at a 45-degree angle to create a "crescent" notch. This prevents the bit from wandering. Once the groove is established, slowly tilt the tool to a 90-degree angle.
• You can also cut a guide out of scrap wood. that will hold and guide the tool in place.
• Operating Technique: Use high RPMs and light, steady pressure. Let the vacuum-brazed diamonds do the cutting; do not force the tool into the material.

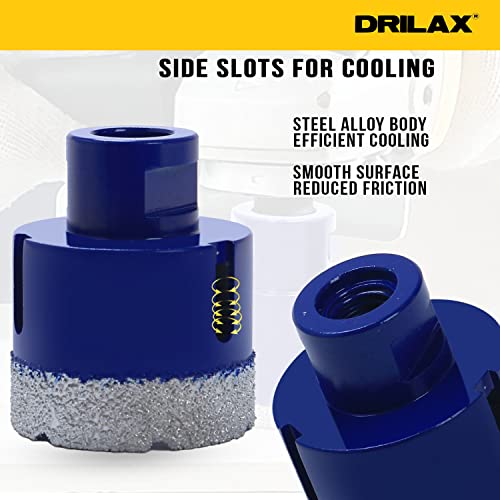

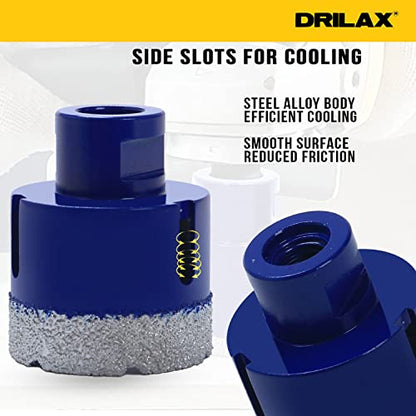

• Heat Management: For deep cuts in stone or masonry, periodically back the bit out of the hole to clear dust and allow the air-cooled side slots to manage heat buildup.

• Plumbing Installations: Perfectly sized for standard 2-inch PVC pipes and the installation of shower drain assemblies.
• Kitchen & Bath Renovation: Creating precise openings in granite, quartz, and marble countertops for plumbing fixtures.
• Flooring Projects: Drilling clean, chip-free holes in porcelain, ceramic, and natural stone floor tiles.
• Masonry Core Drilling: Effective for passing through brick, cinder block, and natural stone walls.

• Hole Diameter: 2 inches
• Cutting Depth: 2 inches
• Thread Size: 5/8"-11 (Angle Grinder Native)
• Adapter Included: No (Requires 5/8"-11 to Hex adapter for standard drills)

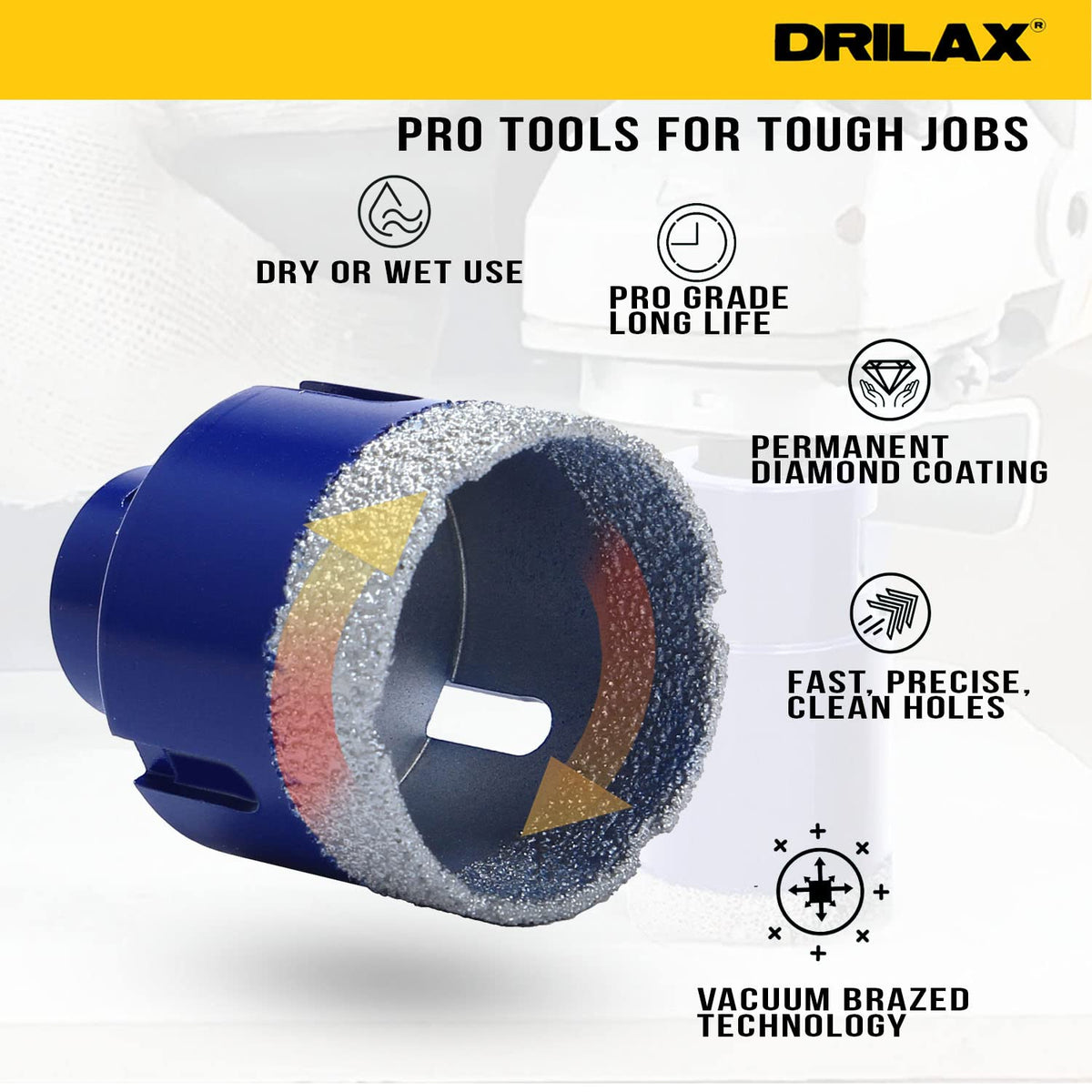

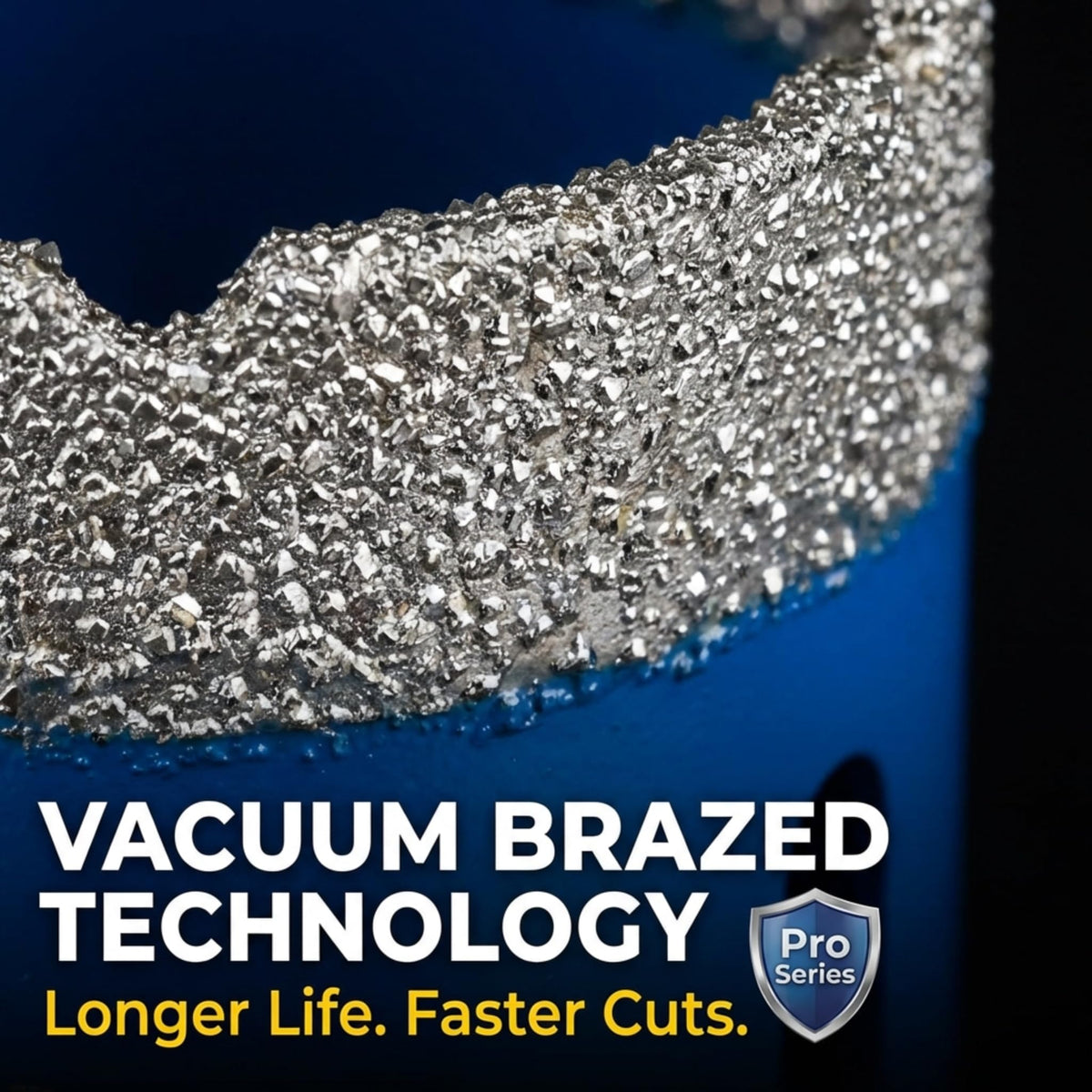

• Construction: Premium Vacuum-Brazed Diamond

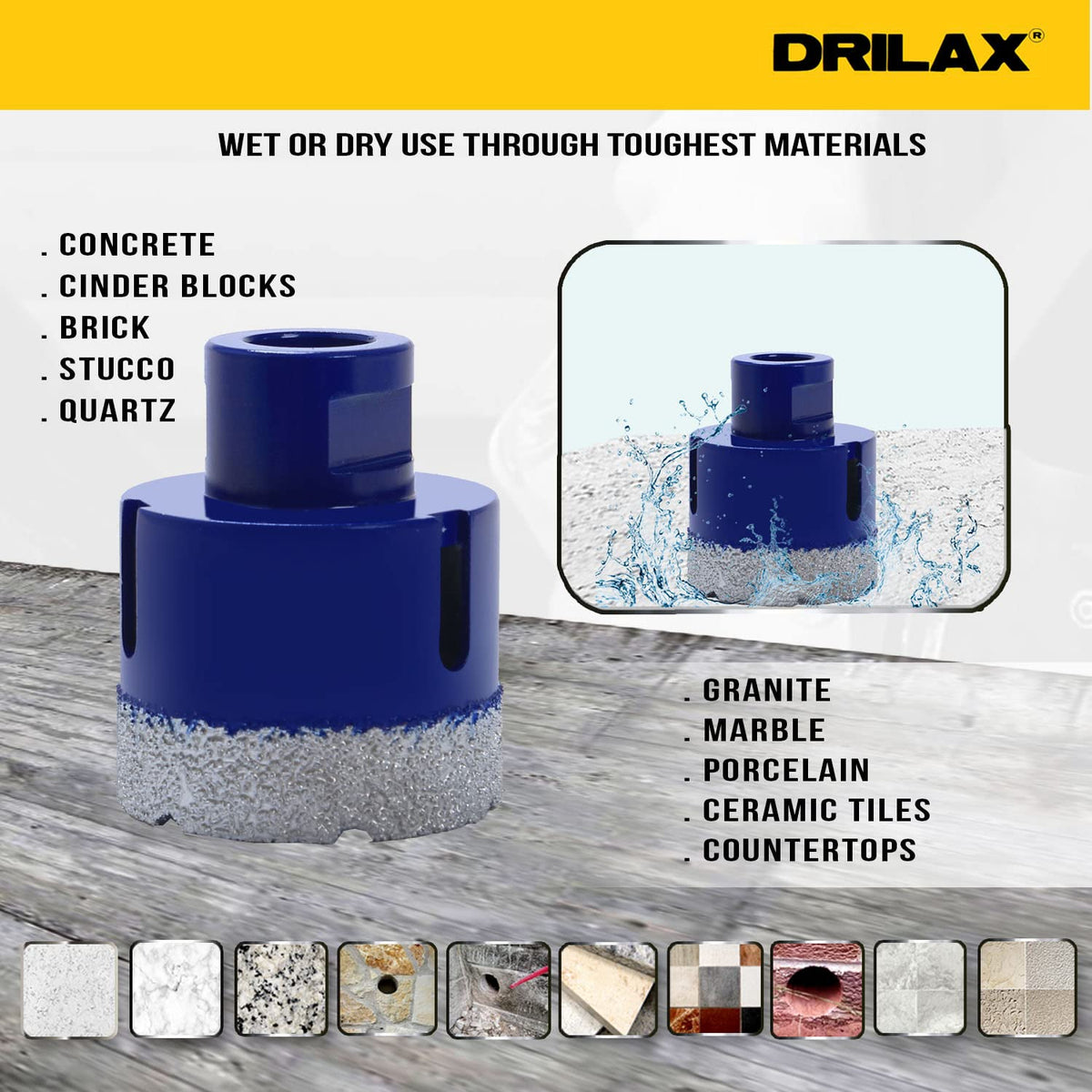

• Use Type: Optimized for Dry or Wet Drilling

Q: Does this fit a standard hand drill?
A: This bit features a 5/8"-11 threaded connection designed specifically for angle grinders. To use this with a standard 3/8" or 1/2" power drill chuck, a 5/8"-11 to Hex Shank adapter is required (sold separately).

Q: Can I use this for dry drilling?
A: Yes, the advanced vacuum brazed technology is engineered for dry drilling. However, using water as a coolant will significantly extend the life of the diamonds and provide a cleaner, faster cut.

Q: How many holes can I expect to get?
A: While results vary by material hardness, our Pro Series bits are tested to handle over 100+ holes in standard tile and stone when used with proper cooling and steady pressure.

Q: What is the maximum drilling depth?
A: The standard core depth for this series is approximately 2 inches, allowing you to pass through standard countertops and floor tiles with ease.
