3 Inch Diamond Hole Saw | 5/8"-11 Angle Grinder | Tile, Masonry & Concrete

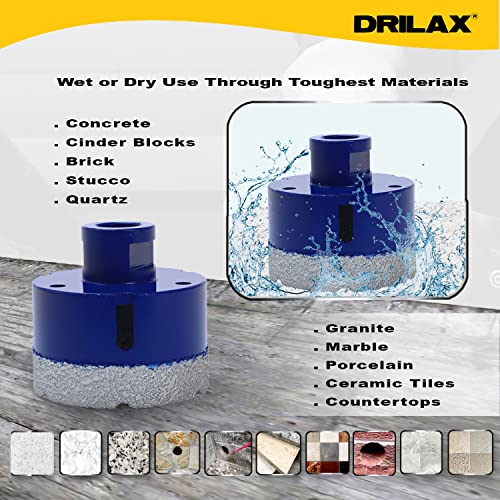

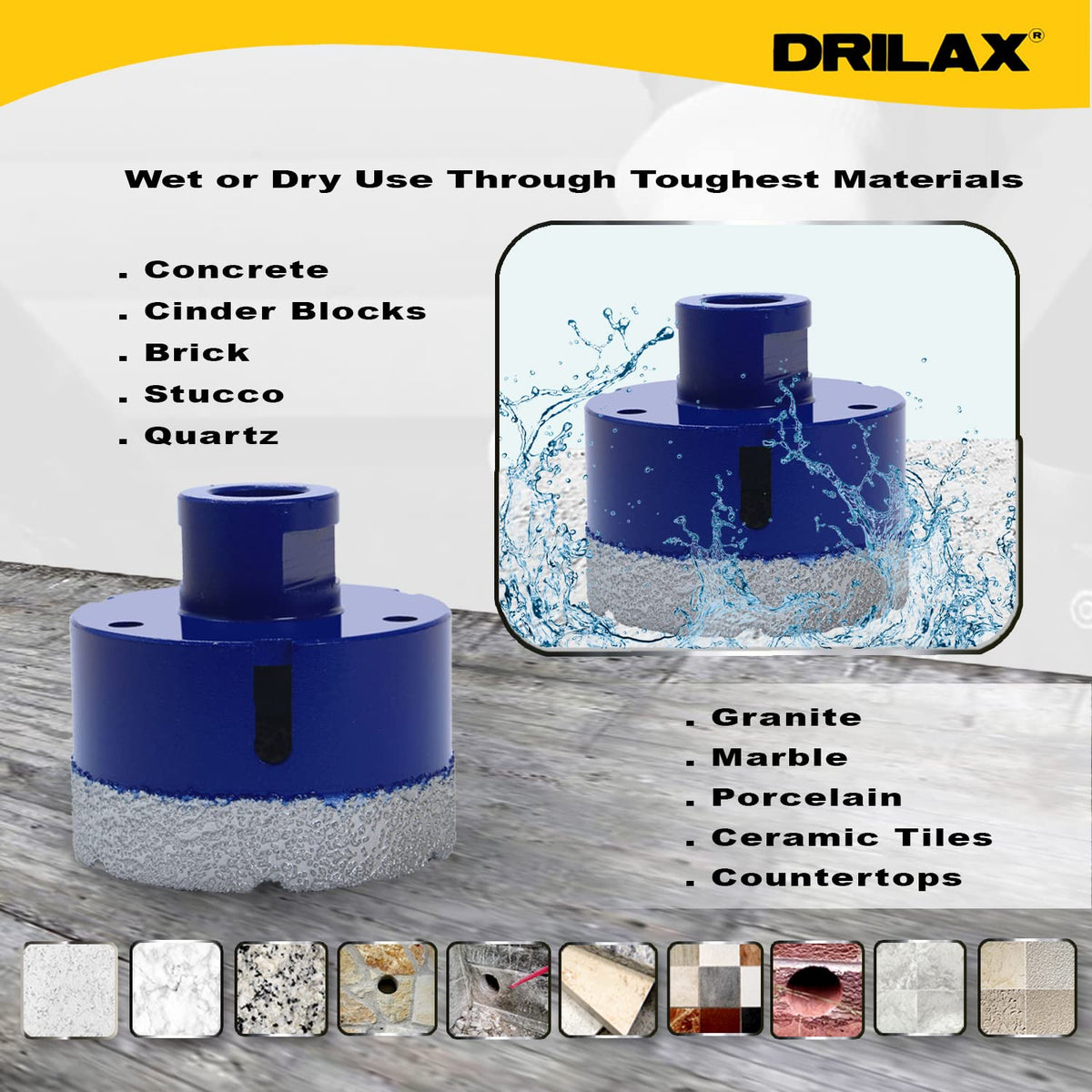

• Materials: Porcelain tile, ceramic tile, granite, quartz, marble, slate, brick, block, and non-reinforced masonry.
• Tool Compatibility: Direct fit for angle grinders (5/8"-11 thread) and compatible with all standard drills (Ryobi, Milwaukee, DeWalt, etc.) via the included adapter.
• Note: Not recommended for glass or fragile decorative tiles.

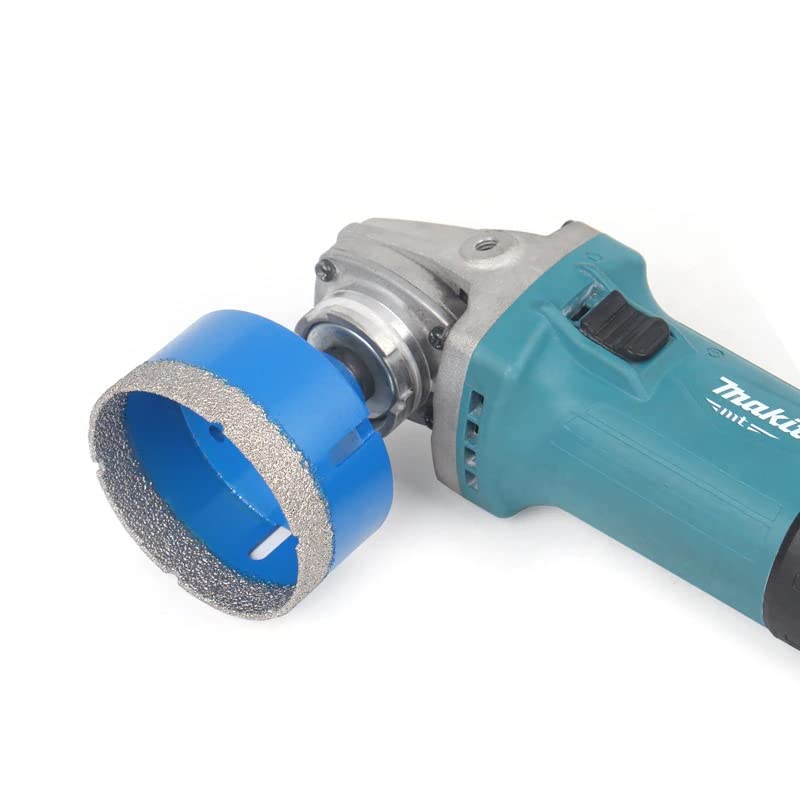

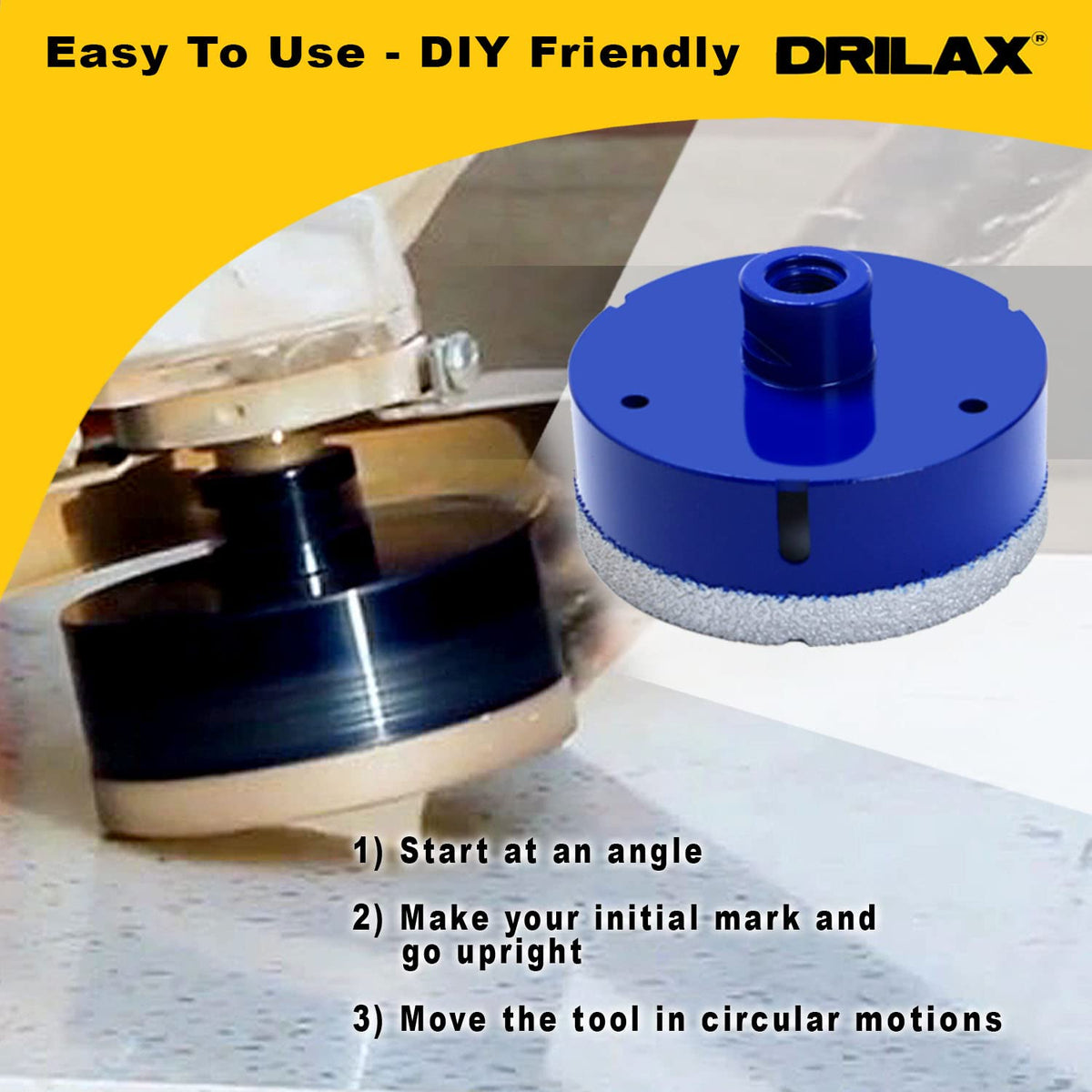

• Angle Grinder Mounting: Thread the hole saw directly onto the 5/8"-11 spindle of your angle grinder. Start the cut at a 45-degree angle to establish a "crescent" notch, then gradually bring the tool to a 90-degree angle.

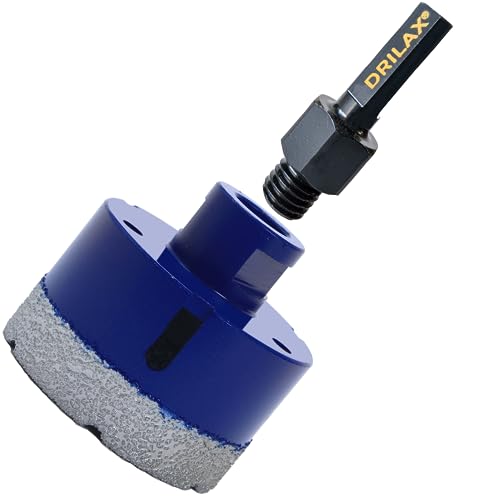

• Standard Drill Mounting: Use the included adapter to connect the hole saw to any standard 3/8" or 1/2" drill chuck.
• Operating Speed: Operate at a high RPM. Use a light, steady pressure and a slight "oscillating" circular motion to help clear dust from the cutting path.

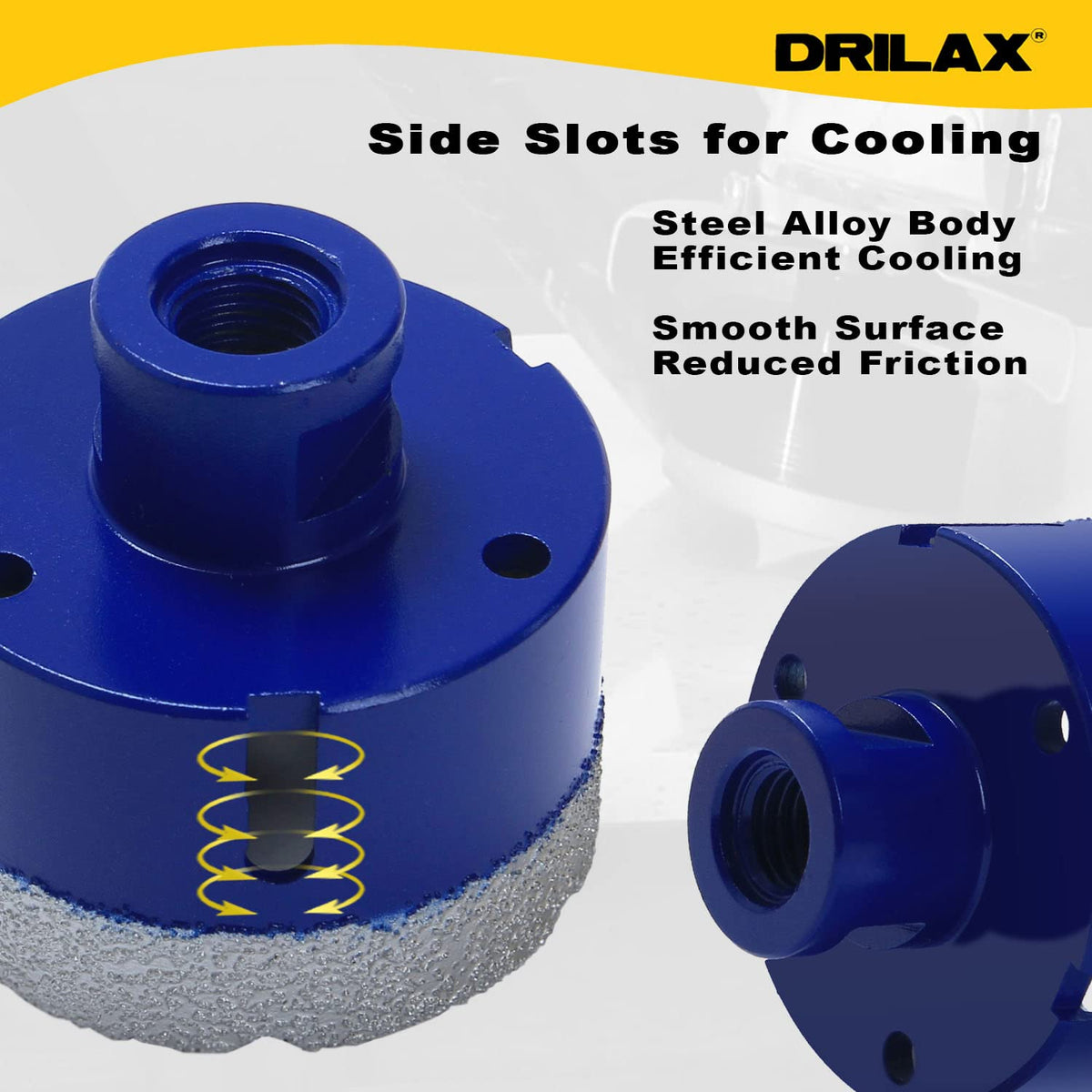

• Heat Management: For deep cuts in hard stone, pause for 10 seconds every 30 seconds of drilling to allow the air-cooled slots to dissipate heat.

• Plumbing & HVAC: Perfect for 3-inch pipe sleeves, vent lines, and drainage penetrations through floor tiles or exterior stone.
• Kitchen & Bath Renovation: Creating precise openings for shower mixing valves and larger faucet assemblies.
• Masonry Work: Drilling pass-throughs for conduit or plumbing in brick, block, and natural stone walls.

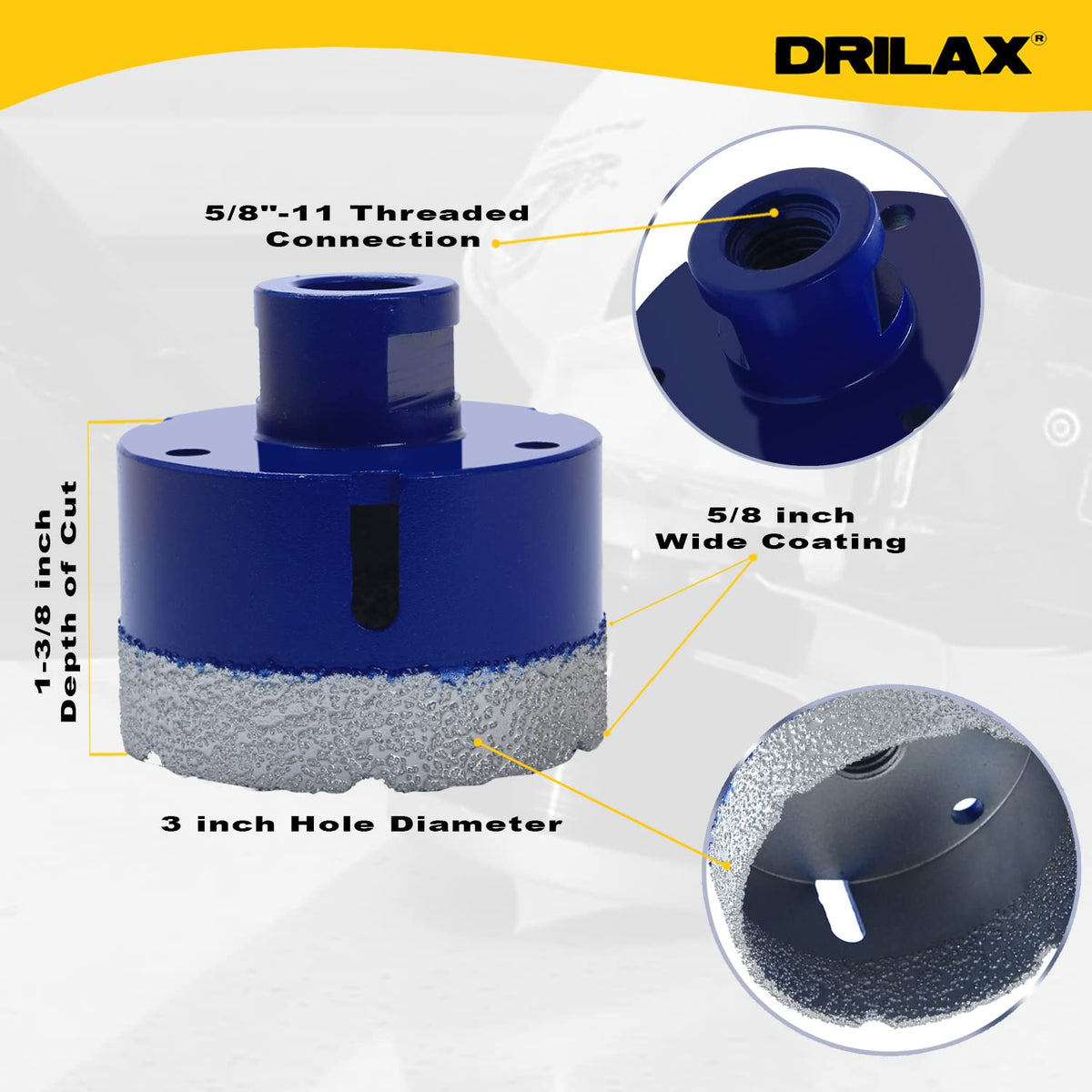

• Hole Diameter: 3 inches
• Cutting Depth: 1-3/8 inches
• Connection Type: 5/8"-11 Threaded (Angle Grinder)

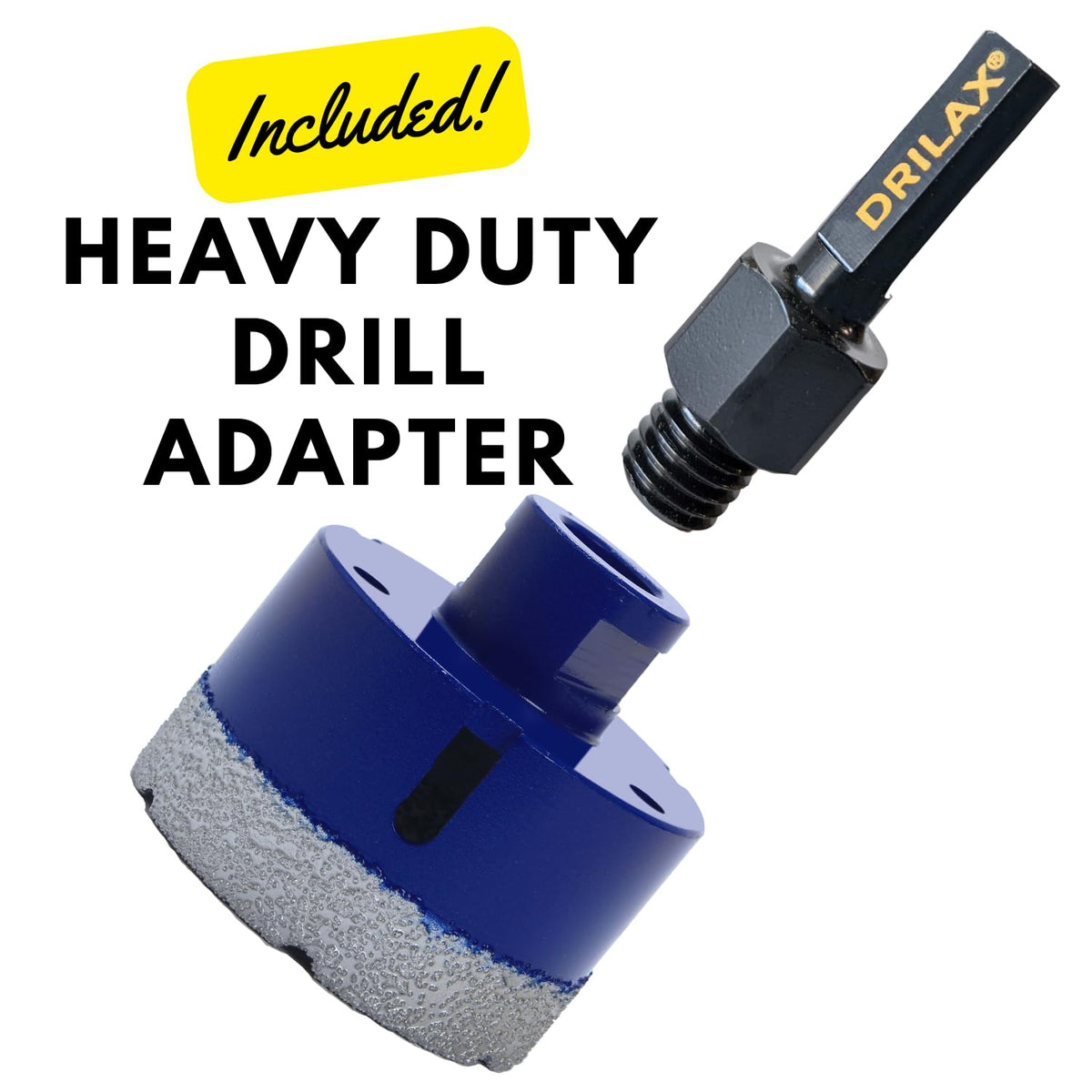

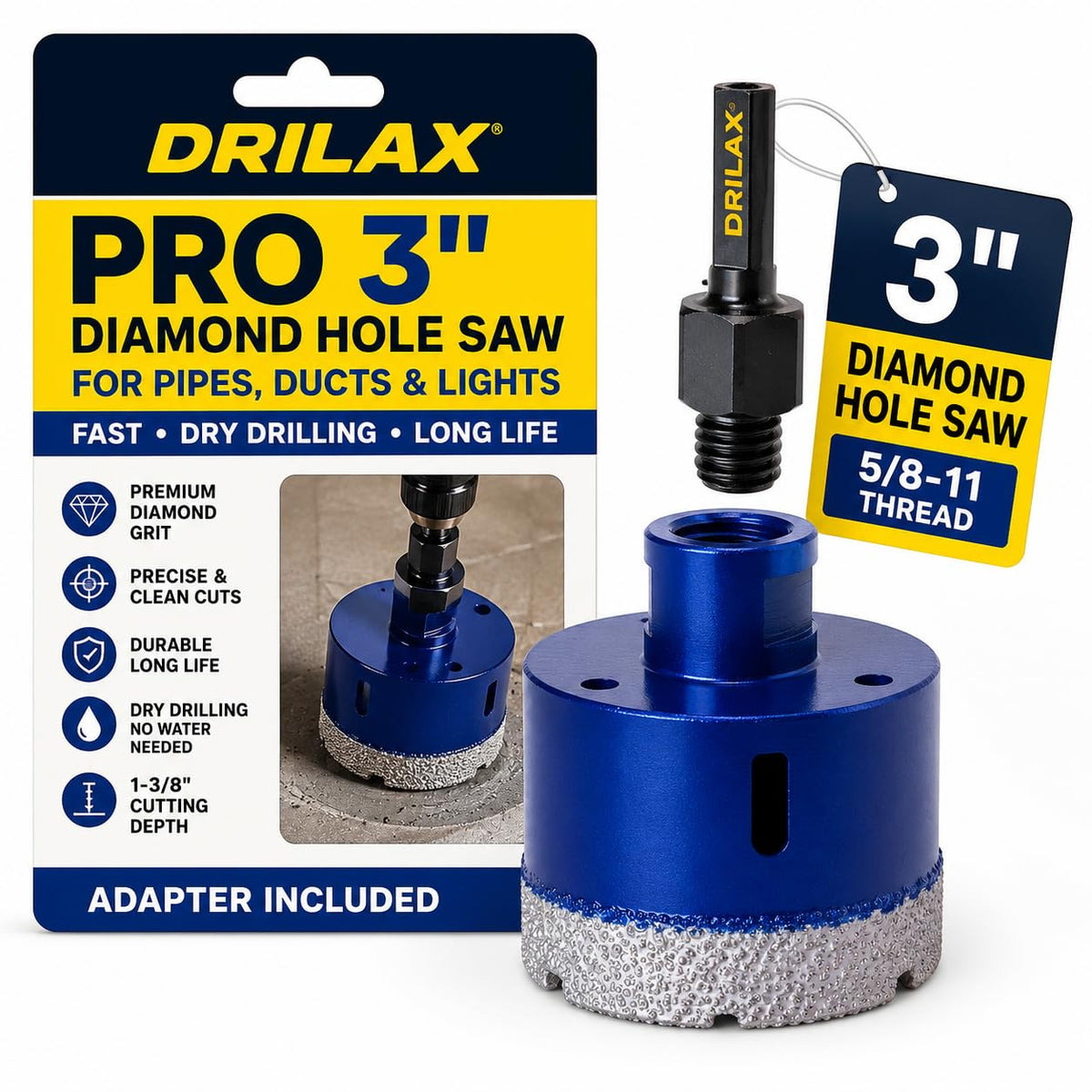

• Adapter Included: Yes (Hex Shank for standard drills)

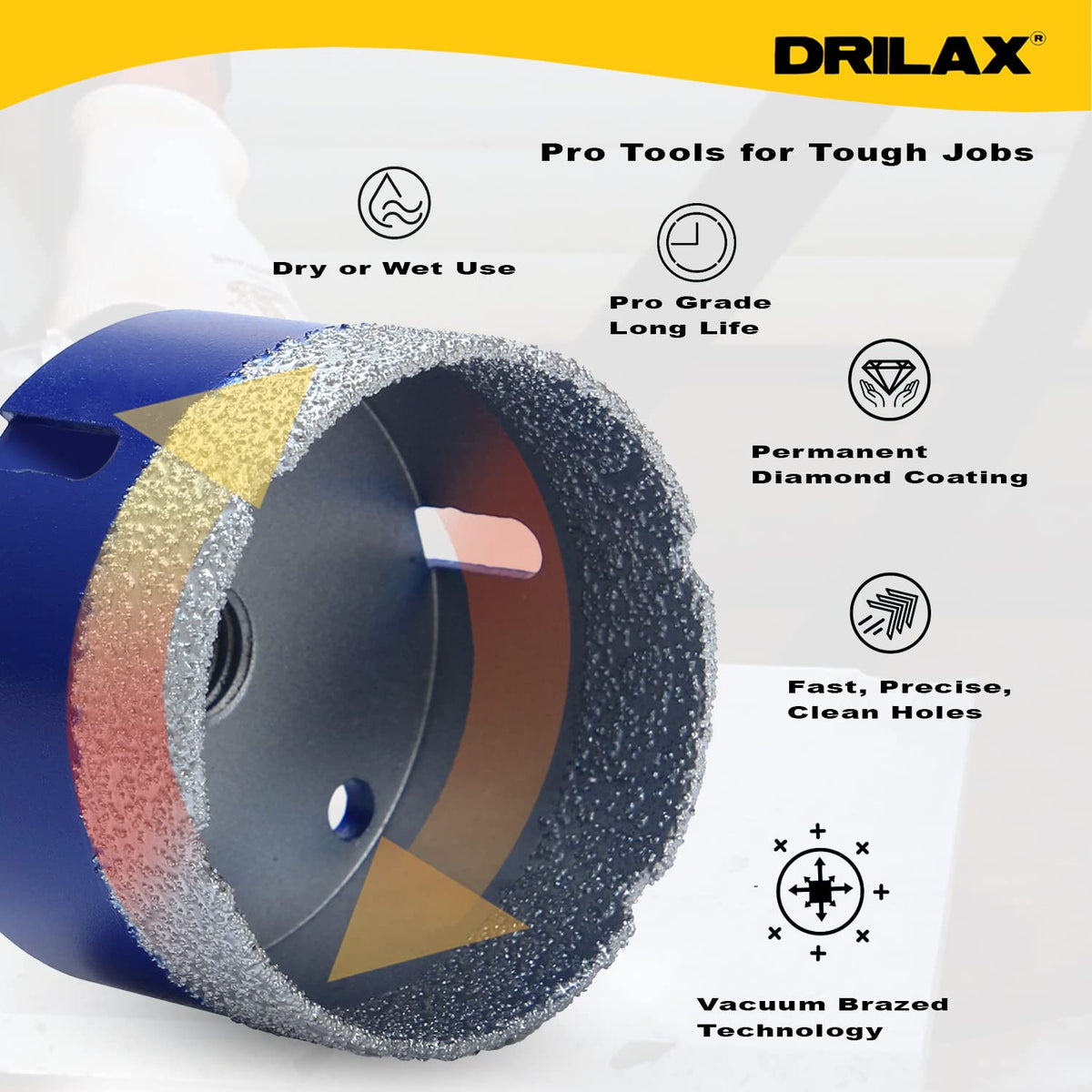

• Diamond Technology: Vacuum-Brazed Industrial Grade
• Usage Type: Dry or Wet Drilling

• Can I use this with an angle grinder?
  Yes. The hole saw is threaded for 5/8"-11 angle grinders and also includes an adapter for standard drills.
• Does this hole saw require water?
  No. It is designed for dry drilling. Optional light misting may be used to reduce dust, but water is not required.
• What materials can it cut?
  Porcelain and ceramic tile, granite, quartz, stone, brick, block, and non-reinforced masonry.
• What is it commonly used for?
  Plumbing pipe penetrations, HVAC ducts, recessed lighting, speaker mounts, and electrical access holes.
• Can I use this on reinforced concrete?
  No. This hole saw is not designed to cut rebar or heavily reinforced concrete.
• How do I start the hole cleanly?
  Begin at a slight angle, then gradually bring the tool upright once the diamonds bite into the surface.

Q: Does this hole saw require water for cooling?
A: No, the Pro Series is engineered for dry drilling. While a light mist can help control dust, it is not required for the tool to function effectively.

Q: Can I use this on glass or mirrors?
A: No. This vacuum-brazed bit is designed for heavy-duty masonry and stone. It is too aggressive for glass. For glass projects, please use our Drilax Chrome Series wet-drilling bits.

Q: Is the drill adapter included?
A: Yes. This 3-inch model includes a 5/8"-11 to hex shank adapter so you can use it with both angle grinders and standard power drills.
