Timely 49T Geometric Designer Drafting Template – Made in USA
Timely 49T Geometric Designer Drafting Template – Made in USA
Geometric drafting template with small sizes of common shapes, made in the USA.
Couldn't load pickup availability
- Free shippingContiguous U.S., no minimum
- Ships in 1–2 daysUPS, USPS or FedEx
- 30-day returnsSee return policy
Questions about fit or sizing? Email sales@drilax.com

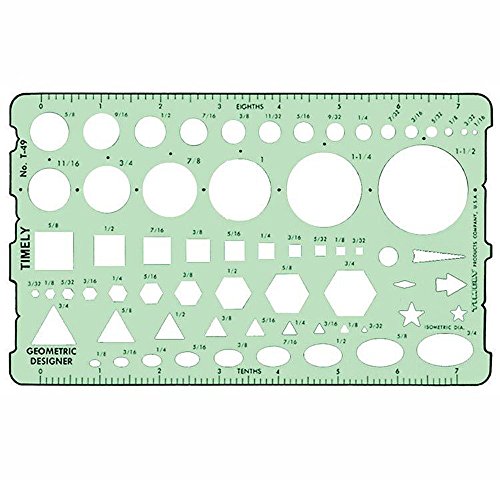

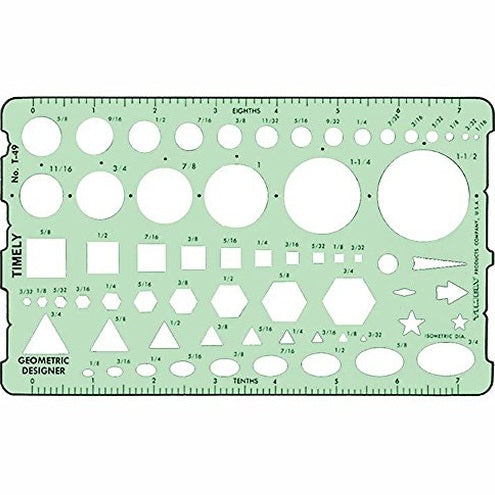

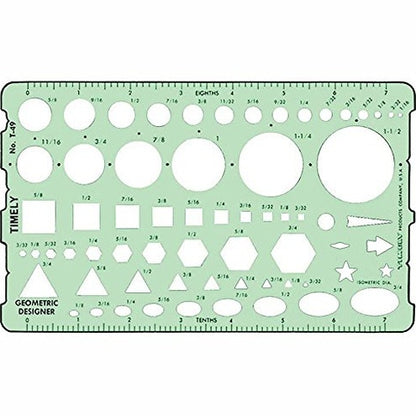

The Timely 49T Geometric Designer Template has small sizes of the shapes most used in drafting, drawing and design: circles, squares, triangles, hexagons, ellipses and more, with inch scales along the edges.
About 4-7/8" x 8" x 0.020" thick. Made in the USA.
What's in the box
- 1 x Timely 49T geometric designer template
Key Features
Key Features
- Common shapes: Circles, squares, triangles, hexagons, ellipses and more.
- Small sizes: For detail drafting, diagrams, journals and design work.
- Made in USA: Produced in the United States.
Compatible Materials
Compatible Materials
- Pencils and technical pens
- Drafting paper and journals
How To Use
How To Use
- Place the template on your drawing and align it with your guide lines.
- Trace the shape with a fine pencil or technical pen.
- Lift straight up to avoid smudging.
Use Cases
Use Cases
- Technical and mechanical drafting
- Diagrams and flowcharts
- Design sketches
- Journals and planners
Technical Specifications
Technical Specifications
- Model: 49T
- Size: Approx. 4-7/8" x 8" x 0.020"
- Shapes: Circles, squares, triangles, hexagons, ellipses and more
- Origin: Made in USA
F.A.Q.
F.A.Q.
How big is it?
About 4-7/8" x 8" and 0.020" thick.
Where is it made?
In the USA.
Shipping & Returns
Shipping & Returns
Orders ship within 1–2 business days via UPS, USPS, FedEx or our logistics partners. Shipping is free to the contiguous U.S. (48 states + DC) on every order, no minimum. We do not ship to Alaska, Hawaii, Puerto Rico, APO/FPO addresses or outside the U.S.
Returns are accepted within 30 days. See our Refund Policy.
