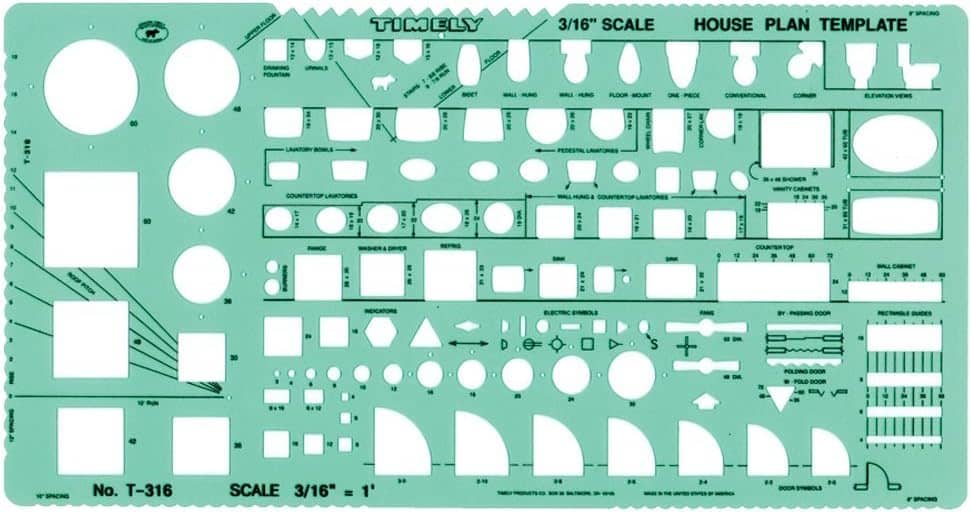

Timely T-316 House Plan Drafting Template, 3/16" Scale – Made in USA
Timely T-316 House Plan Drafting Template, 3/16" Scale – Made in USA
3/16" scale house plan drafting template with architectural symbols, made in the USA.
Couldn't load pickup availability
- Free shippingContiguous U.S., no minimum
- Ships in 1–2 daysUPS, USPS or FedEx
- 30-day returnsSee return policy
Questions about fit or sizing? Email sales@drilax.com
The Timely T-316 house plan template is drawn to 3/16" = 1' scale and includes the standard house plan symbols plus extra circles, squares and plumbing symbols.
Spacing notches along the edges, a stair planner and a roof pitch gauge help keep plans consistent. Made in the USA.
What's in the box
- 1 x Timely T-316 house plan template
Key Features
Key Features
- 3/16" scale: 3/16" = 1' house plan symbols.
- Plumbing symbols: Plus extra circles and squares.
- Planning aids: Spacing notches, stair planner and roof pitch gauge.
- Made in USA: Produced in the United States.
Compatible Materials
Compatible Materials
- Pencils and technical pens
- Drafting paper and vellum
How To Use
How To Use
- Align the template with your plan's grid or wall lines.
- Use the spacing notches to step off even spacing.
- Trace symbols with a fine pencil or technical pen.
Use Cases
Use Cases
- House and floor plans
- Remodel layouts
- Architecture and drafting classes
Technical Specifications
Technical Specifications
- Model: T-316
- Scale: 3/16" = 1'
- Includes: House plan and plumbing symbols, spacing notches, stair planner, roof pitch gauge
- Origin: Made in USA
F.A.Q.
F.A.Q.
What scale is it?
3/16" = 1'.
Where is it made?
In the USA.
Shipping & Returns
Shipping & Returns
Orders ship within 1–2 business days via UPS, USPS, FedEx or our logistics partners. Shipping is free to the contiguous U.S. (48 states + DC) on every order, no minimum. We do not ship to Alaska, Hawaii, Puerto Rico, APO/FPO addresses or outside the U.S.
Returns are accepted within 30 days. See our Refund Policy.
