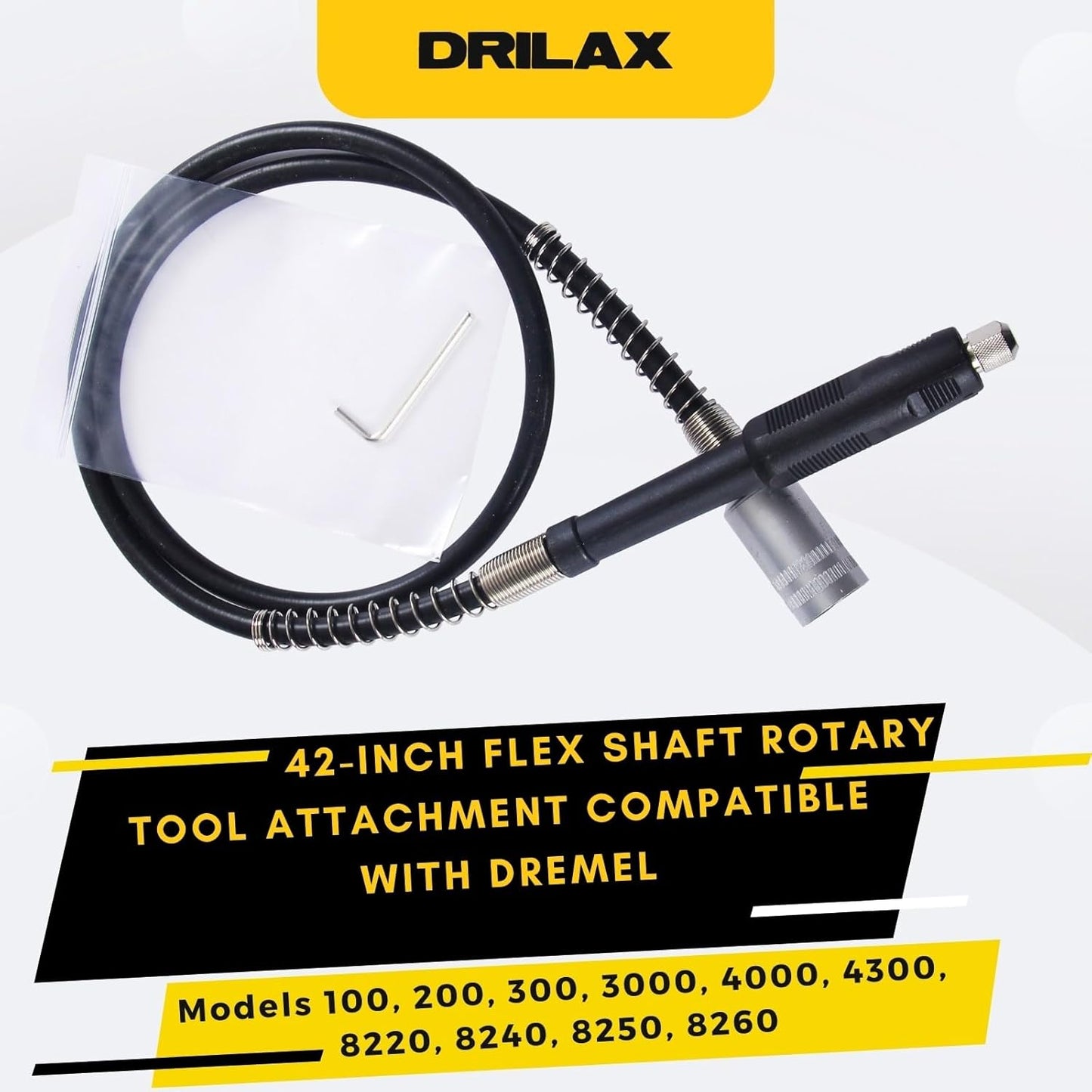

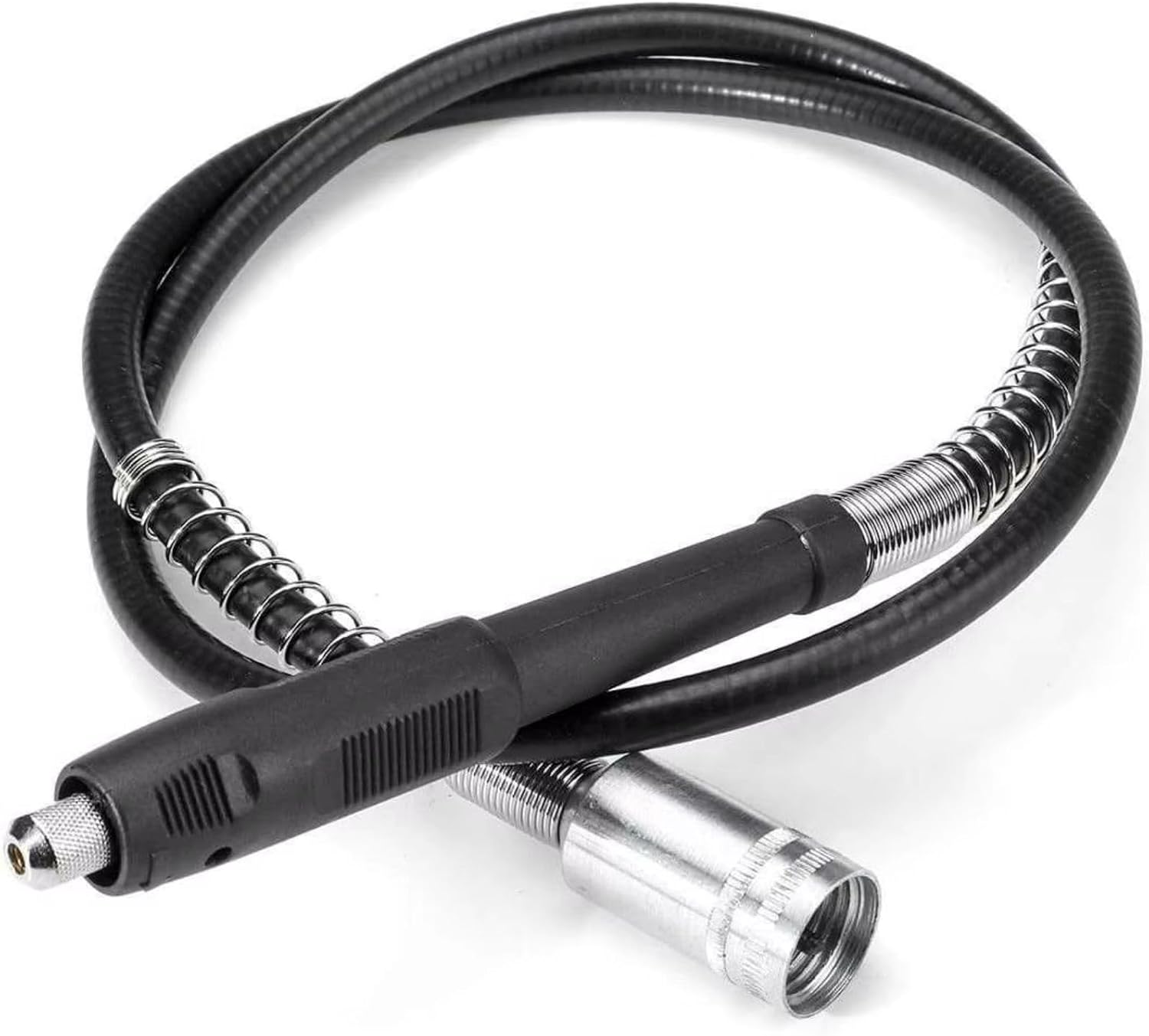

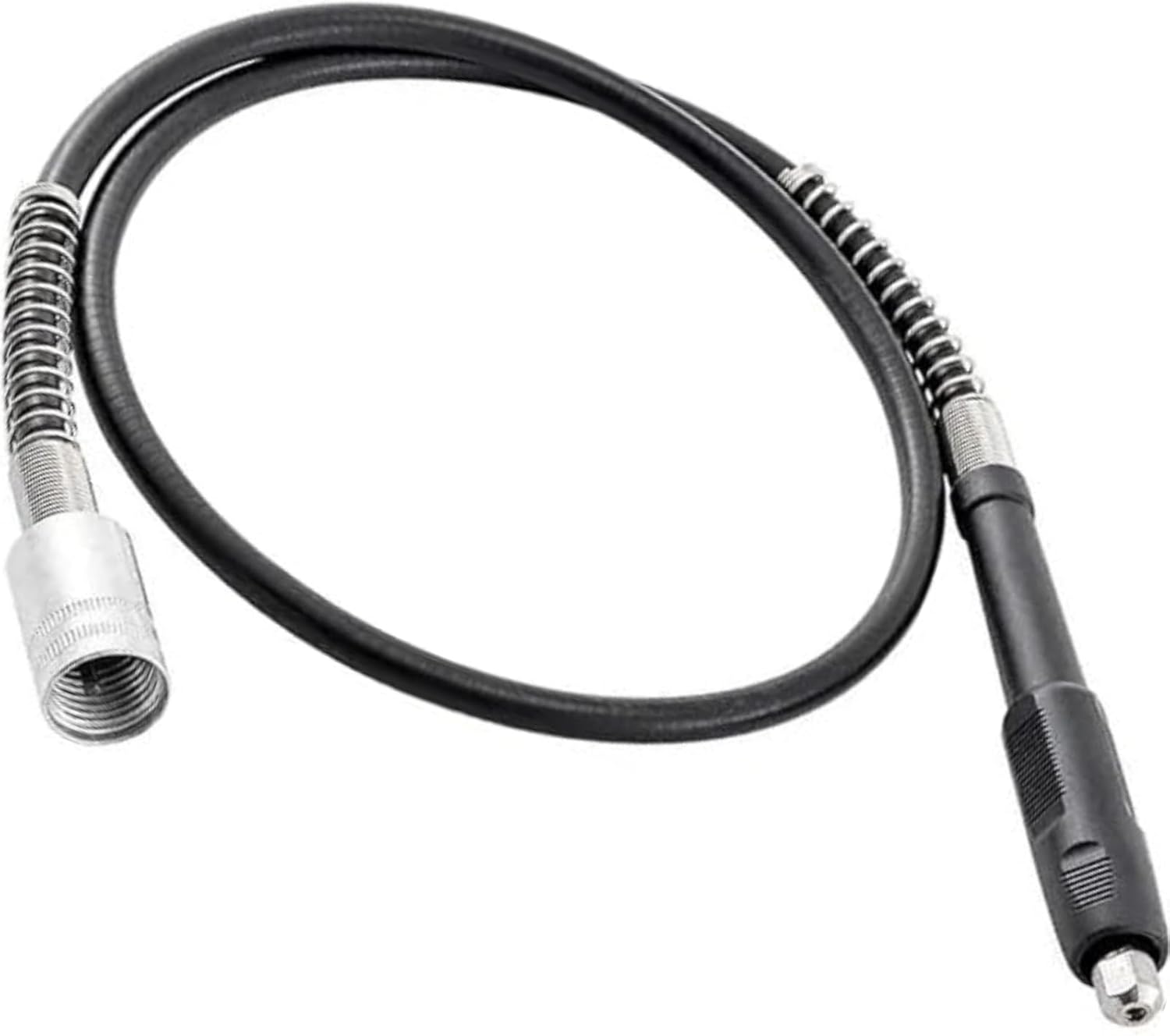

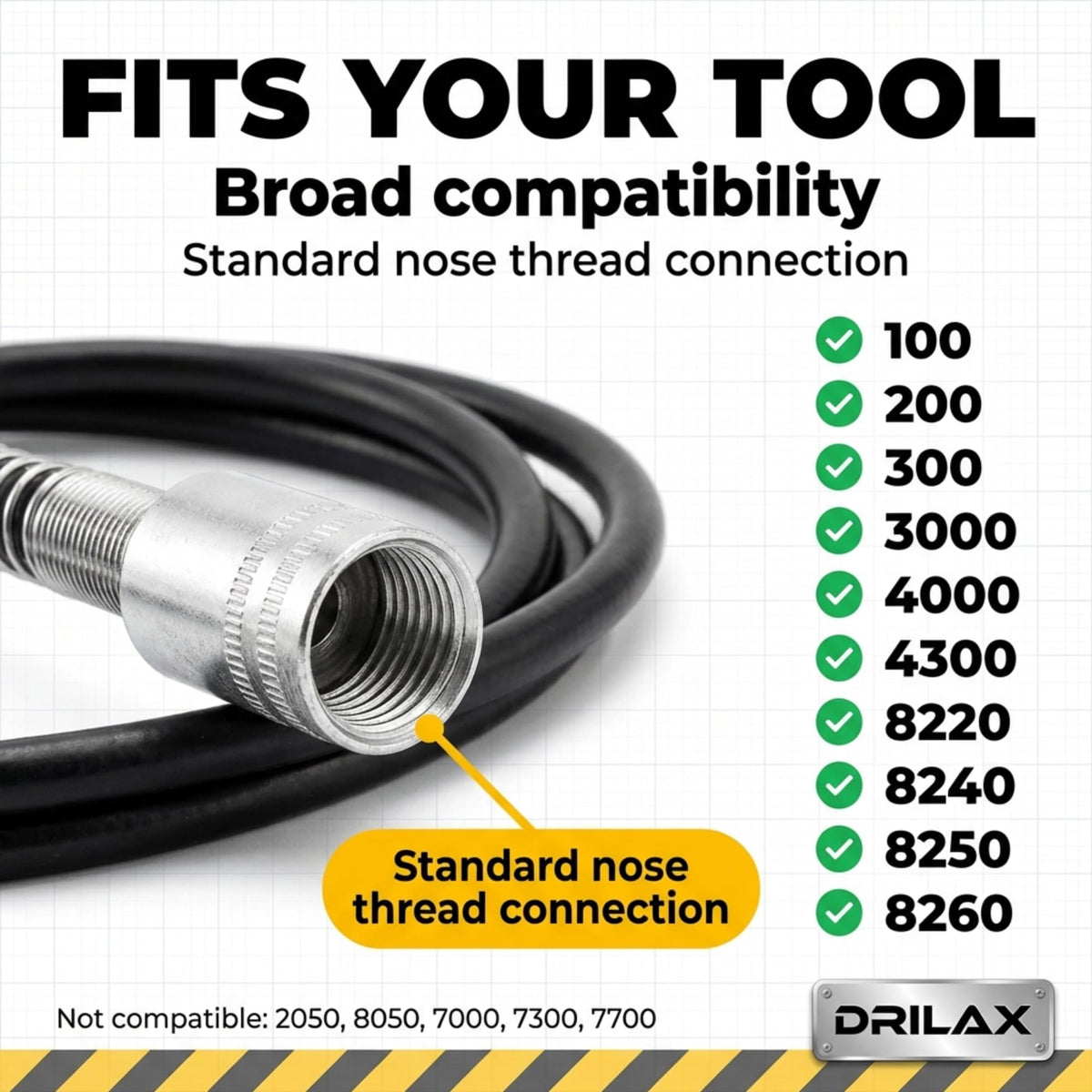

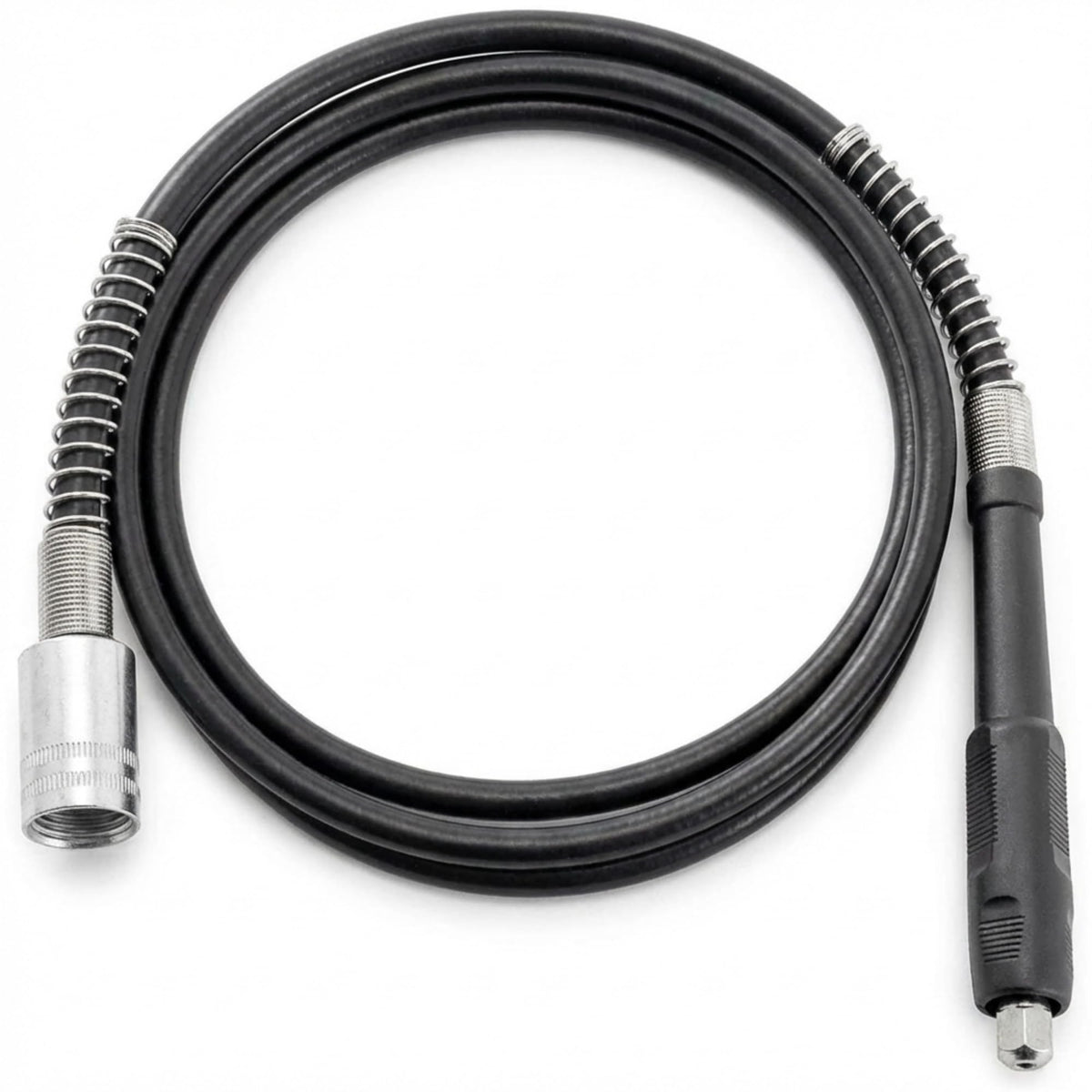

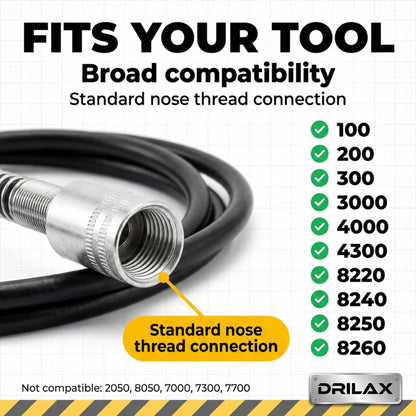

Drilax Flexible Rotary Drill Tool Drive Flex Shaft Attachment 42 inch Extension Fits 1/8 inch Collet Grinding, Polishing Compatible with Standard Rotary Tools

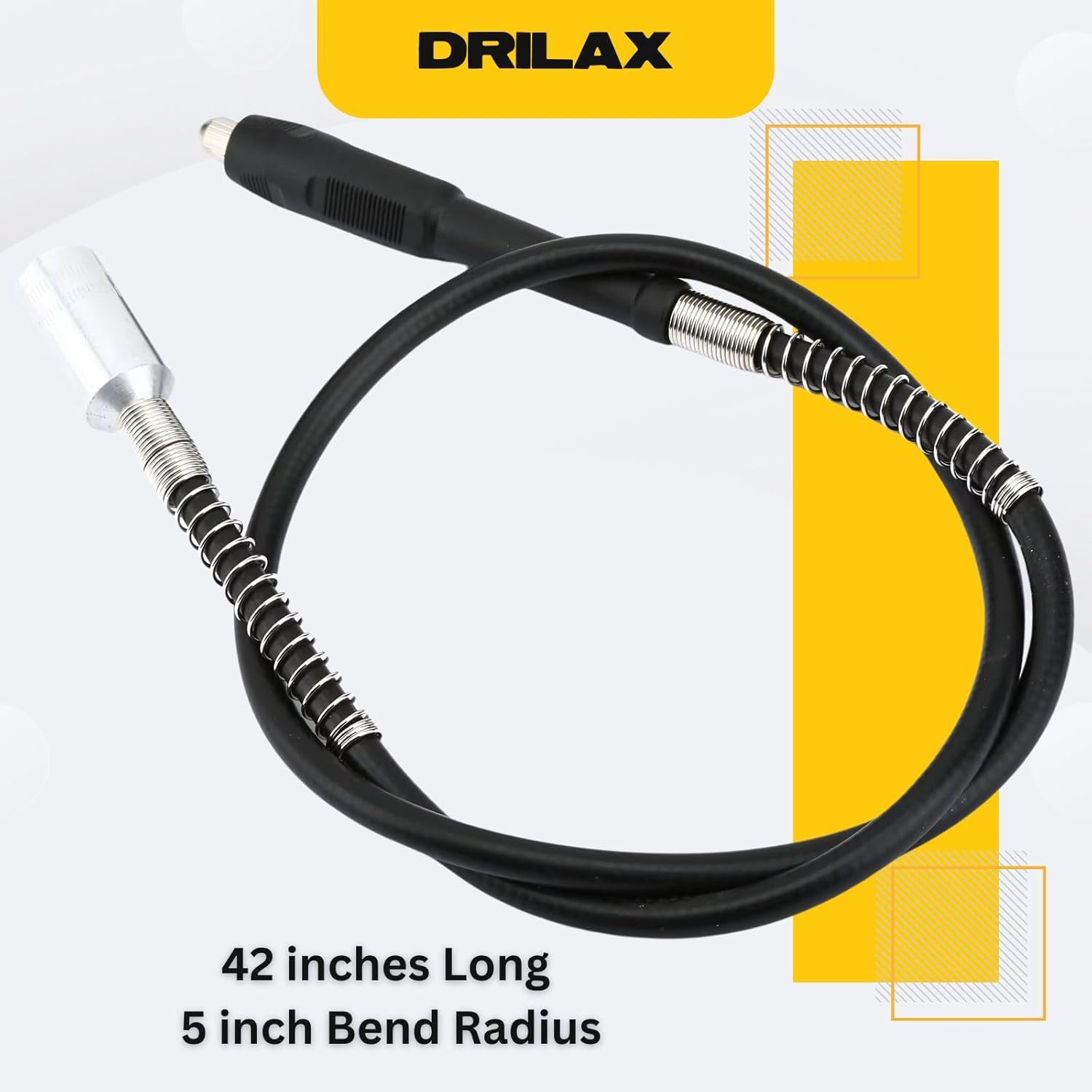

- FLEXIBLE and DURABLE Design - 42 inch Long Flexible Drive Shaft Can Run Up To 35,000 RPM at no load
- COMFORTABLE GRIP SUITABLE for detail work, cutting, engraving, carving, touch-up, drilling and finishing. GREAT for Jewelry Design, Lapidary Work, Hobby, Crafting, Modeling, Repairs, Drilling and Shaping Gemstones, Seashells, Sea Glass
- QUICK - EASY - SECURE CONNECTION- Keyless Chuck and 1/8 inch Universal Collet

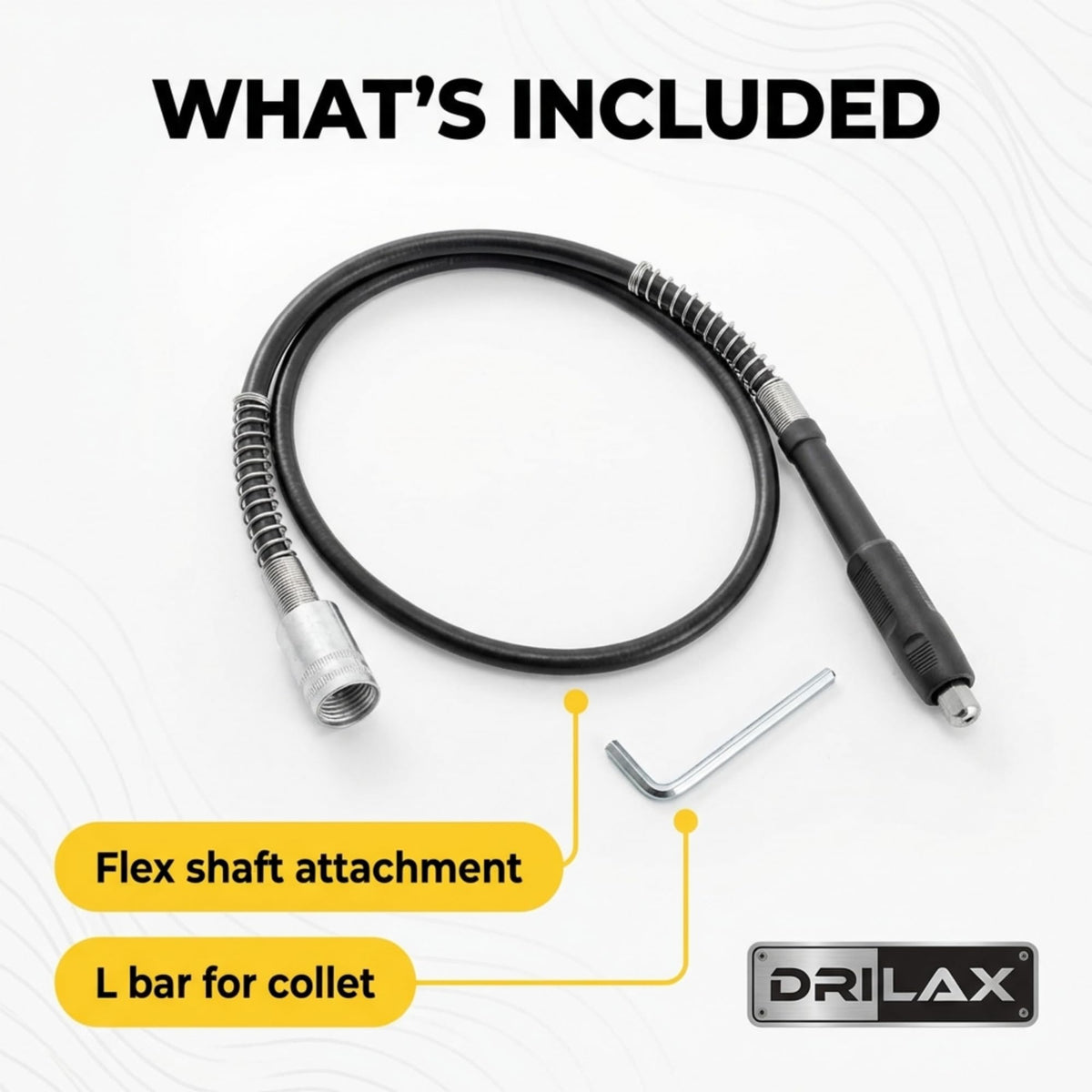

- PLEASE LUBRICATE THE FLEX-SHAFT Core with grease before use. Allen wrench included
- 100% SATISFACTION GUARANTEE - We also provide detailed instruction with pictures. Please lubricate the inner core.
Visit drilax.com/instructions for Full Instructions with Pictures

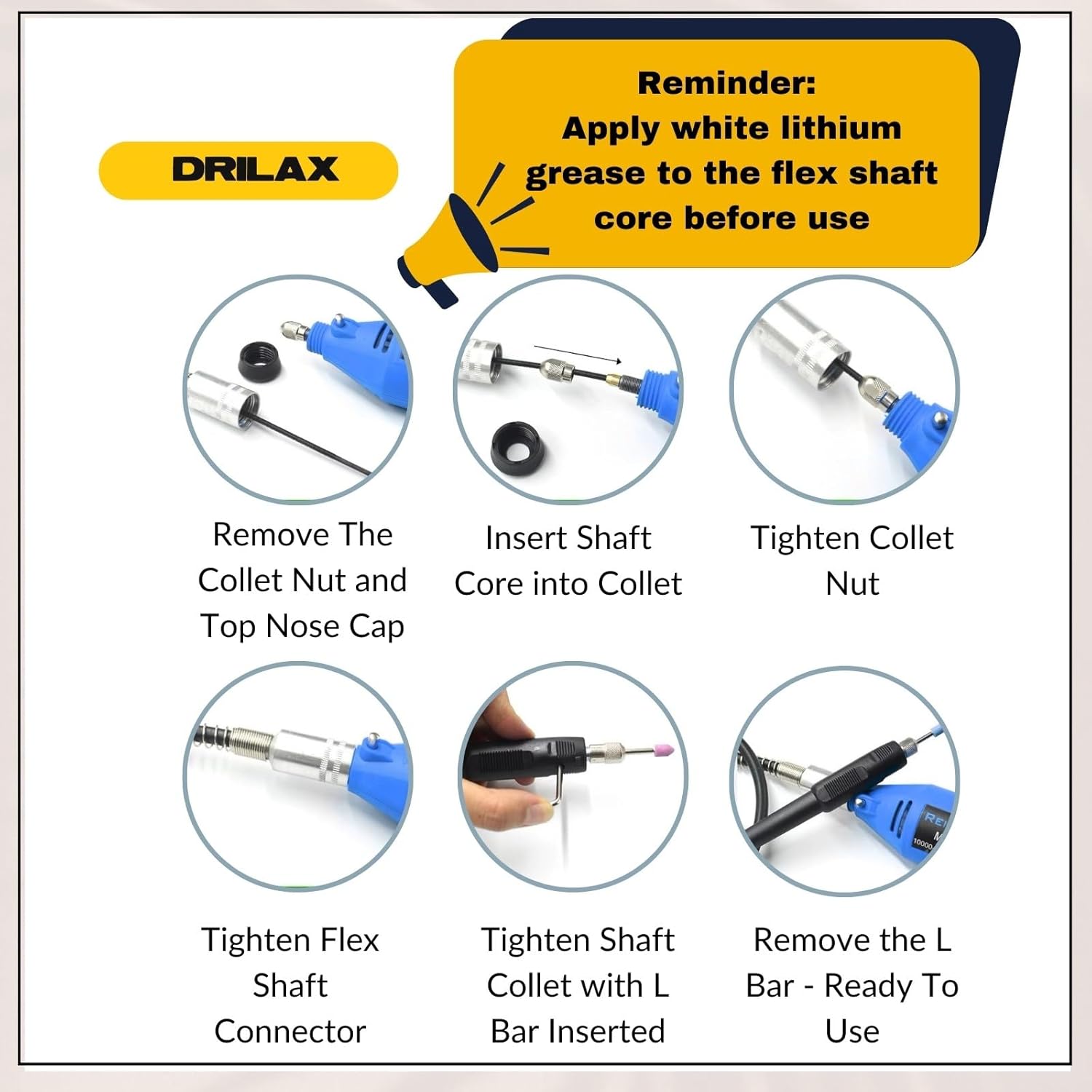

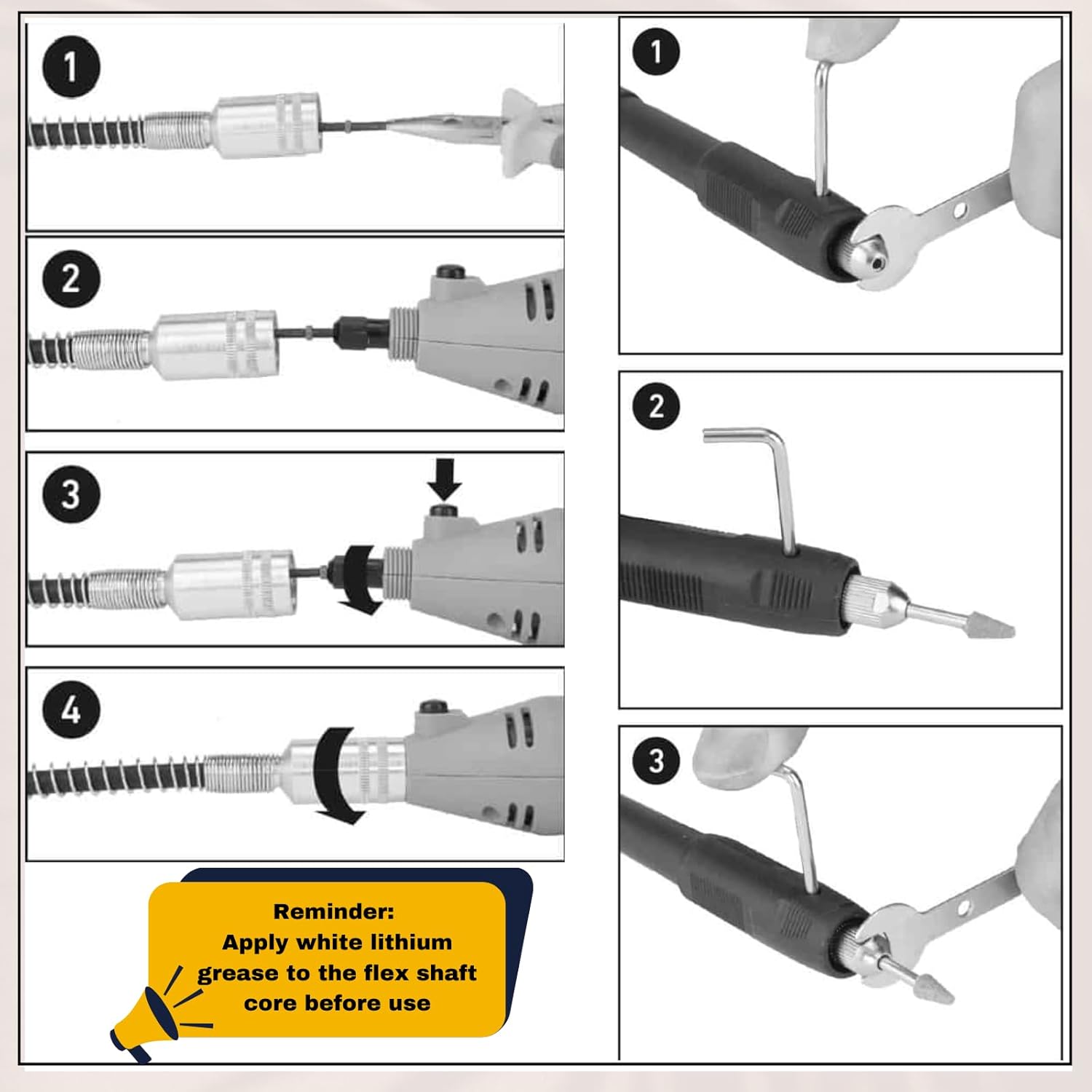

1- First, if is your rotary tool has a threaded collars on the motor end, you will need to remove it by turning ccw (counter clock wise). You will need the collar when you attach a tool directly to the rotary tool. You will not need it with the flex shaft.
2- Hold the flexible shaft by the silver color fitting end (you will be able to see the inner shaft core). And pull the inner core about 2 inches. If you need a pair of pliers to hold it, that is normal.
MAKE SURE THE ROTARY TOOL IS UNPLUGGED FOR THE NEXT STEPS
3-The flex shaft is there to transfer the rotation, that is it. It is just like an extension. Push the core of the flex shaft into the rotary tool collet and tighten the collet. You can use the collet lock button to prevent it from turning while you are tightening the nut.

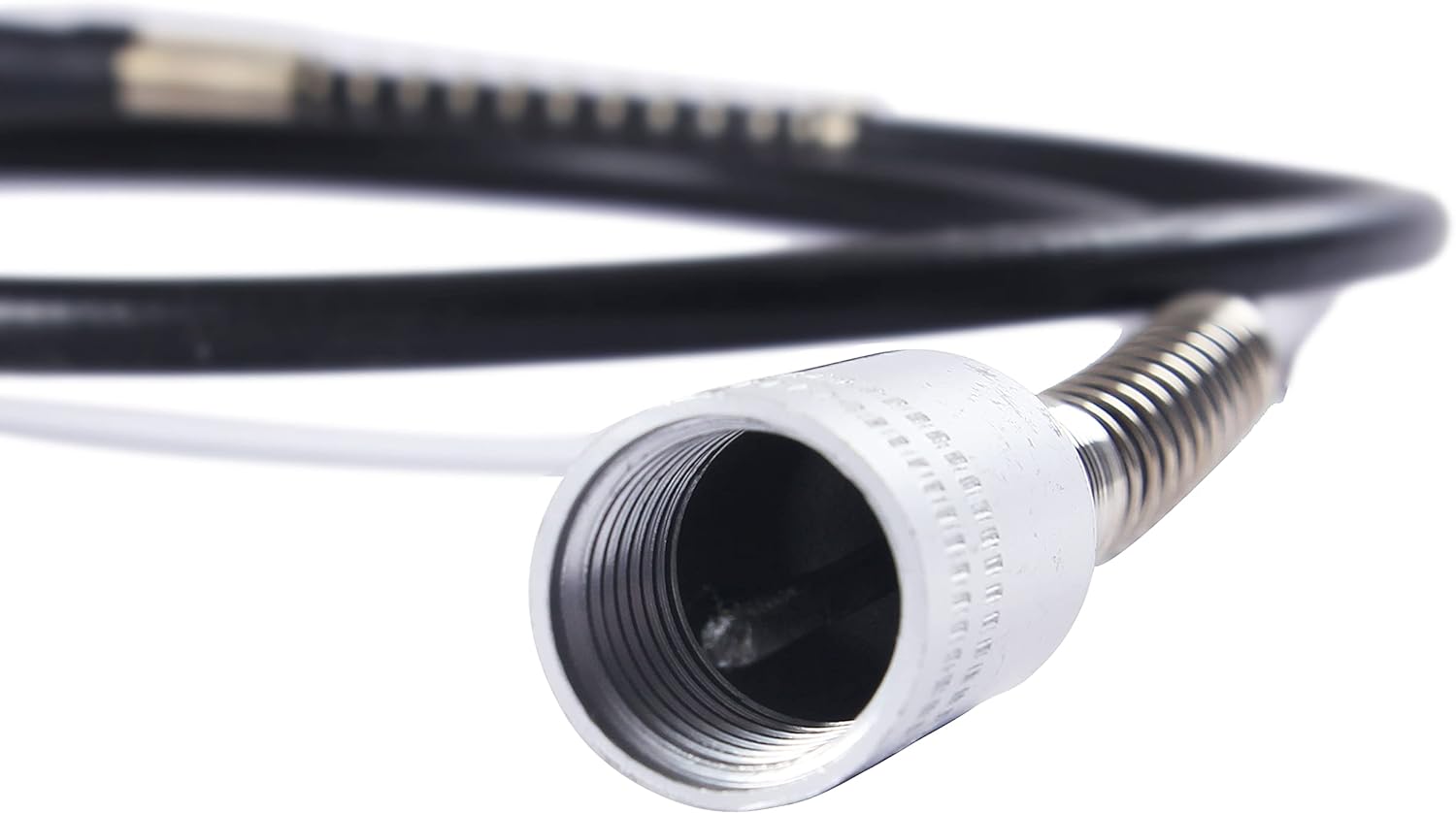

4- You can now screw the silver color fitting end of the flex shaft onto the rotary tool housing. This is where you removed the collar.

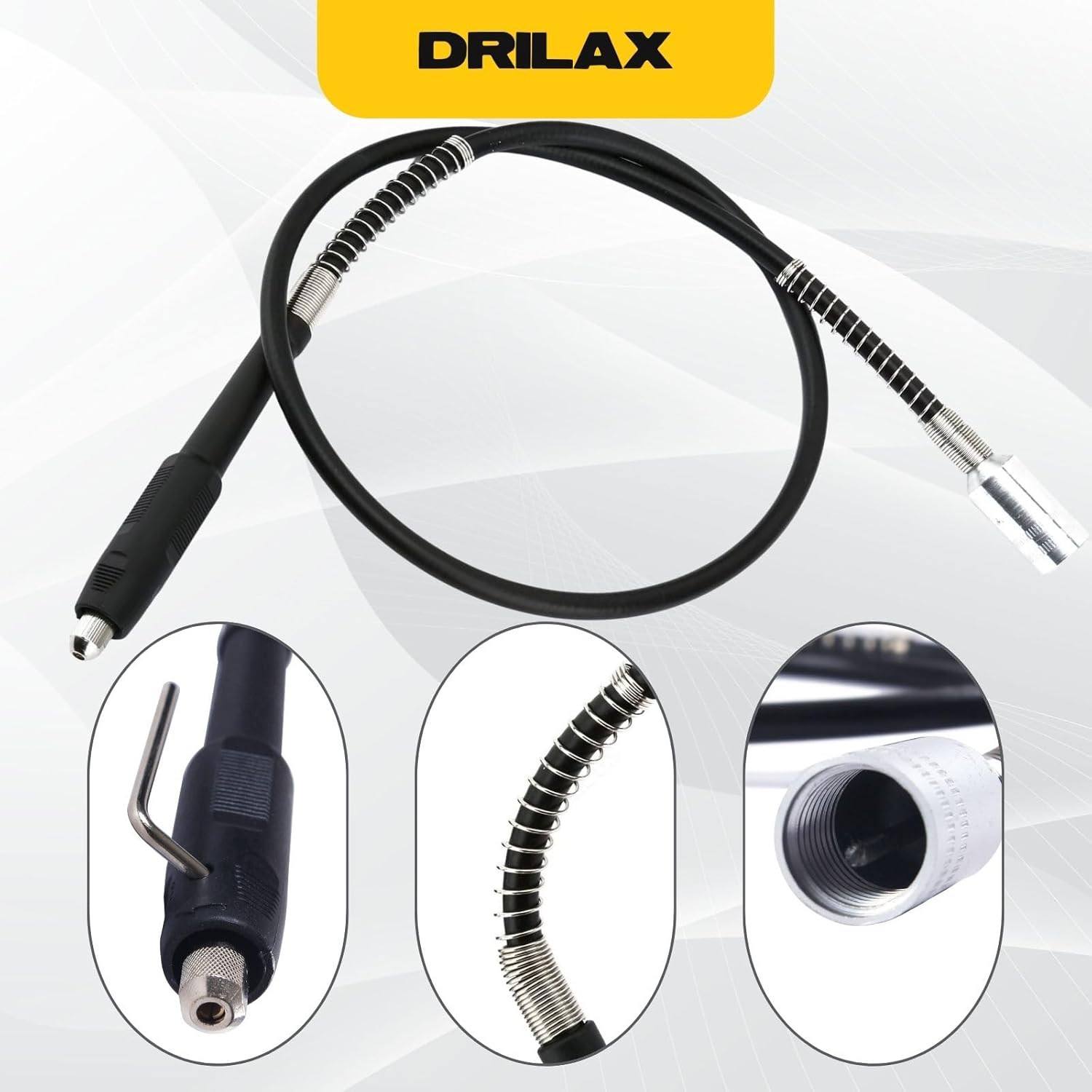

5- The other end (BLACK COLOR) of the flex shaft is where you will insert the desired attachment tool such as a diamond disc or a burr. You will be using the silver chrome L shaped piece for this stage. There is a hole on the side of the black side of the flex shaft. And there is another hole under the black side. When you align these two holes by turning the silver tip on the black end, insert the L shaped metal. This step may sound confusing but it is simple. The inner metal part on the black end of the shaft will want to turn as you try to attach the tool. The L shaped metal is there to help you hold it while you try to twist the tip.
6- You can now attach the bit. And tighten the nut at the tip of the black end of the flex shaft.
Item Condition: New
