5-Piece Diamond Drill Bit Set 3/8 to 1 Inch – Tile, Glass, Granite & Planters
5-Piece Diamond Drill Bit Set 3/8 to 1 Inch – Tile, Glass, Granite & Planters
A 5-piece diamond drill bit set, 3/8 to 1 inch, with 1-1/8 inch cut depth for tile, glass, stone and planters.
Couldn't load pickup availability
- Free shippingContiguous U.S., no minimum
- Ships in 1–2 daysUPS, USPS or FedEx
- 30-day returnsSee return policy
Questions about fit or sizing? Email sales@drilax.com

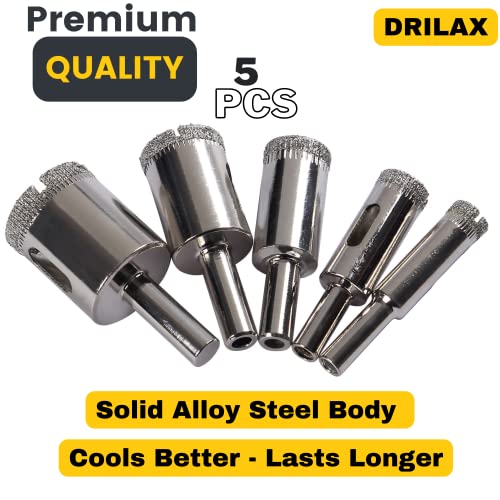

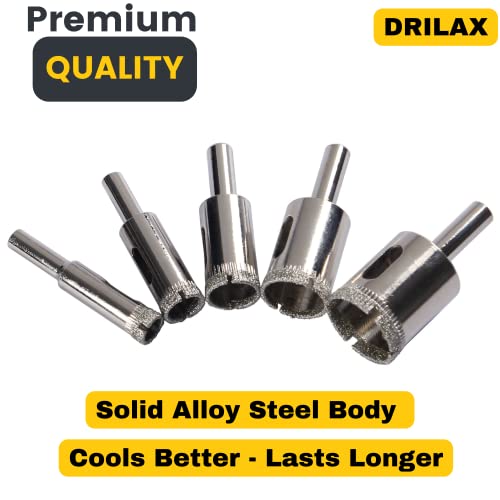

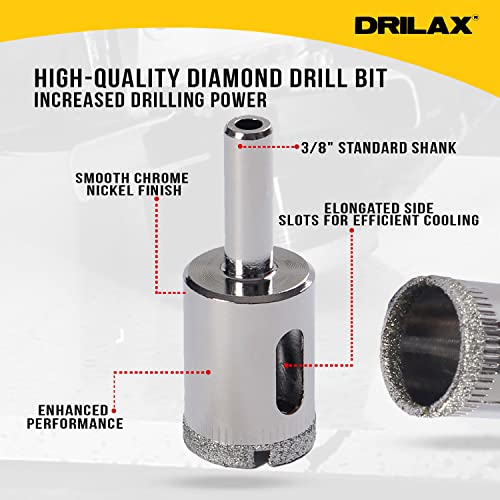

The Drilax 5-Piece Diamond Drill Bit Set includes 3/8, 1/2, 5/8, 3/4 and 1 inch bits for tile installation, bottle lamps, faucets, soap dispensers and drainage holes in planters. Each bit is solid alloy steel with a triple-layer diamond coating and a 1-1/8 inch cutting depth, and drills clean holes in ceramic, porcelain, glass, granite, quartz, clay and terracotta. The hollow core makes plug removal easy.
Benefits
5 Sizes: 3/8 to 1 inch for crafts, fixtures and tile.
Triple-Layer Diamond Coating: Fast cutting and long life on hard materials.
1-1/8 Inch Depth: Handles thick tile and common install jobs.
Fits Standard Drills: Works with corded and cordless drills.
Key Features
Key Features

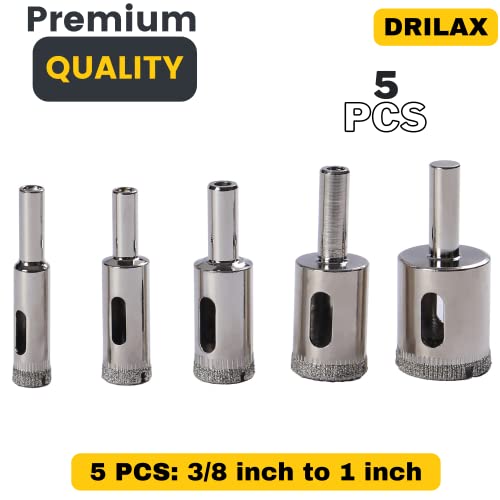

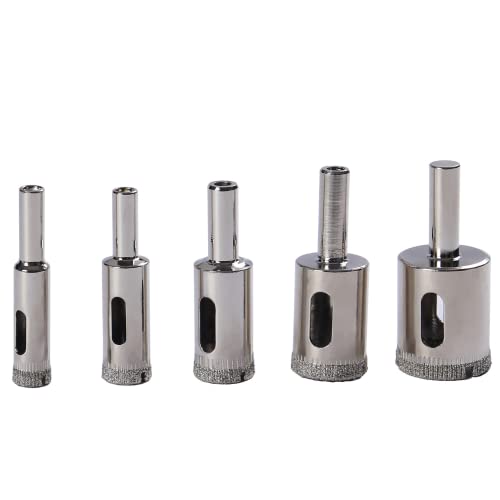

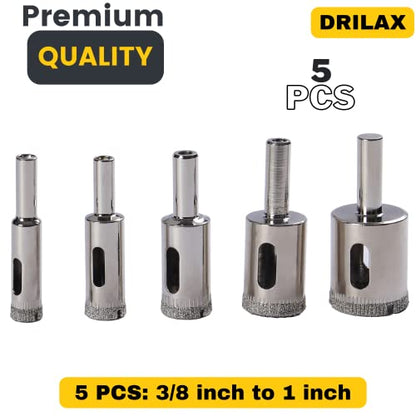

- 5-Piece Set: 3/8, 1/2, 5/8, 3/4 and 1 inch diamond drill bits.

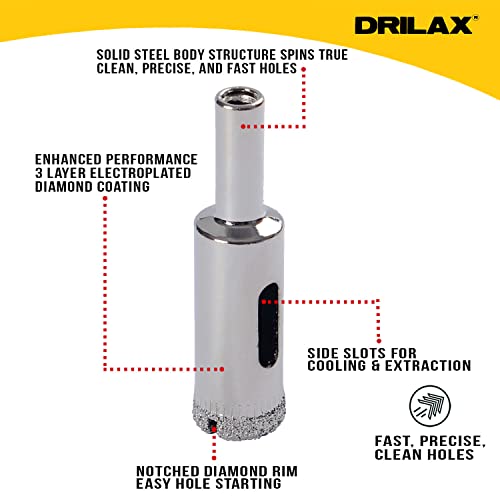

- Triple-Coated Diamond Edge: Durable, fast-cutting coating.
- Hollow Core: Easy plug removal.
- Solid Alloy Steel: Stable, controlled handheld drilling.
Compatible Materials
Compatible Materials

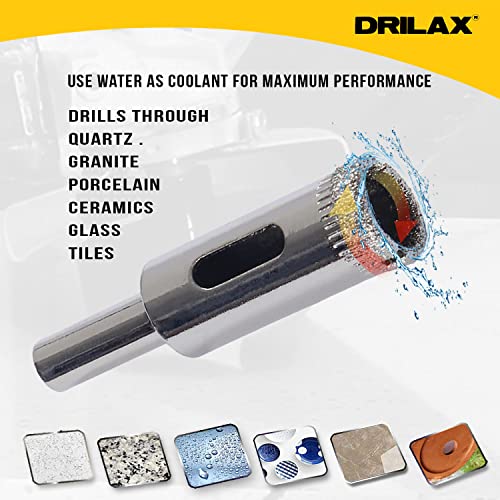

- Materials: Porcelain, ceramic tile, glass, granite, quartz, marble and natural stone, plus clay and terracotta.
- Tool Compatibility: Standard corded and cordless drills with a 3/8 inch or larger chuck.
- Not For: Concrete, masonry block, wood or metal. Do not use hammer mode.
How To Use
How To Use

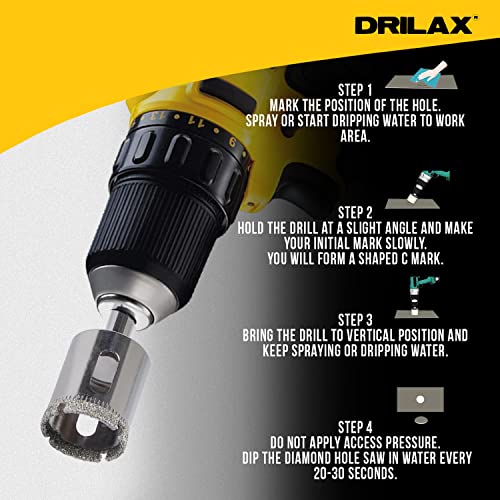

- Mark & Wet: Mark the hole and spray or drip water on the work area.
- Start at an Angle: There is no pilot bit. Hold the drill at a slight angle to cut a small C-shaped groove, or start through a drill guide or scrap-wood template.
- Bring to Vertical: Slowly bring the drill upright and keep adding water to the cut.
- Light Pressure: Let the diamonds do the work. Dip the bit in water every 20 to 30 seconds and don't use hammer mode.
Use Cases
Use Cases
- Bottle Lamps: Wire holes in glass bottles.
- Planters: Drainage holes in clay, terracotta and ceramic pots.
- Bathrooms: Fixture and anchor holes in tile.
- Kitchens: Faucet accessory and soap dispenser holes.
Technical Specifications
Technical Specifications
- Sizes: 3/8, 1/2, 5/8, 3/4 and 1 inch
- Pieces: 5 drill bits
- Depth of Cut: 1-1/8 inches
- Body: Solid alloy steel
- Cutting Edge: Triple-layer electroplated diamond
- Use Type: Wet drilling
F.A.Q.
F.A.Q.
Q: What sizes are included?
A: 3/8, 1/2, 5/8, 3/4 and 1 inch.
Q: How deep can it cut?
A: 1-1/8 inches.

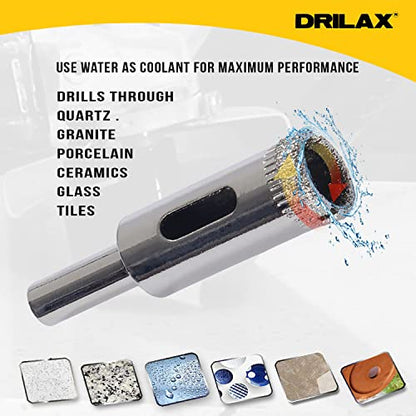

Q: Do I need water?
A: Yes. These are wet-use diamond bits. Keep the cut wet the whole time to cool the bit, control dust and get a clean, chip-free hole.
Q: Can I drill a glass bottle?
A: Yes. Use plenty of water, low speed and light pressure, and start at a slight angle.
