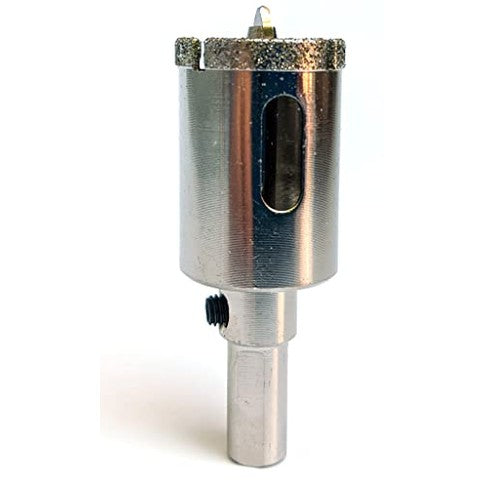

1 Inch Diamond Drill Bit with Pilot - Porcelain & Tile Hole Saw
1 Inch Diamond Drill Bit with Pilot - Porcelain & Tile Hole Saw
A durable 1 inch diamond drill bit engineered for clean, fast, and precise cuts in tile, stone, and glass.
Couldn't load pickup availability

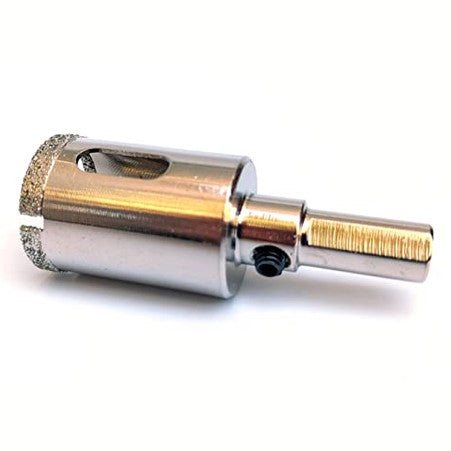

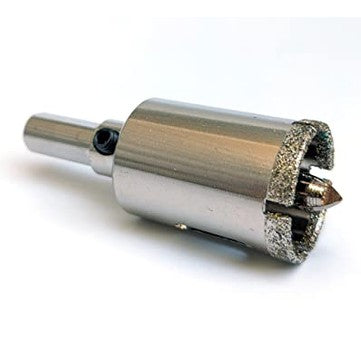

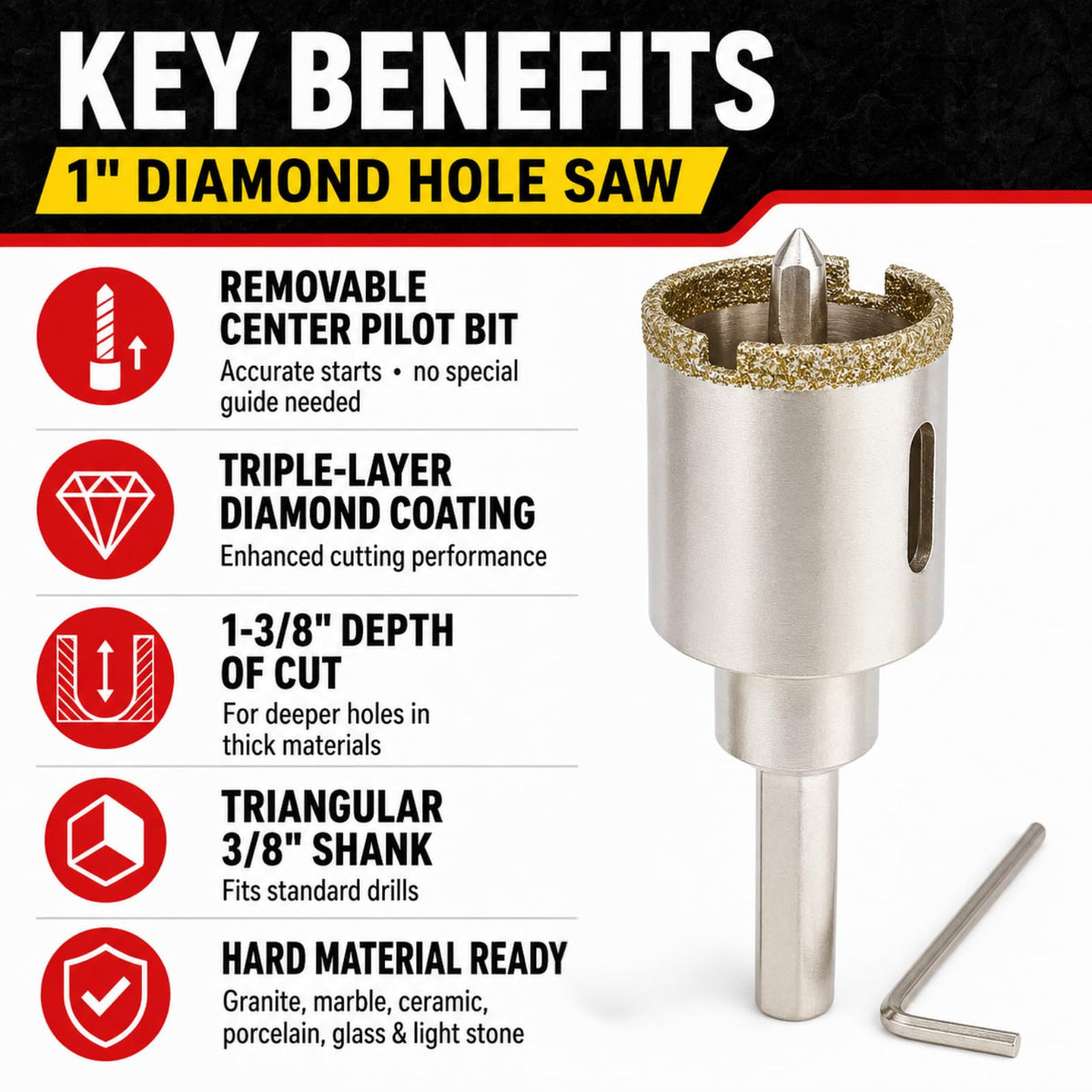

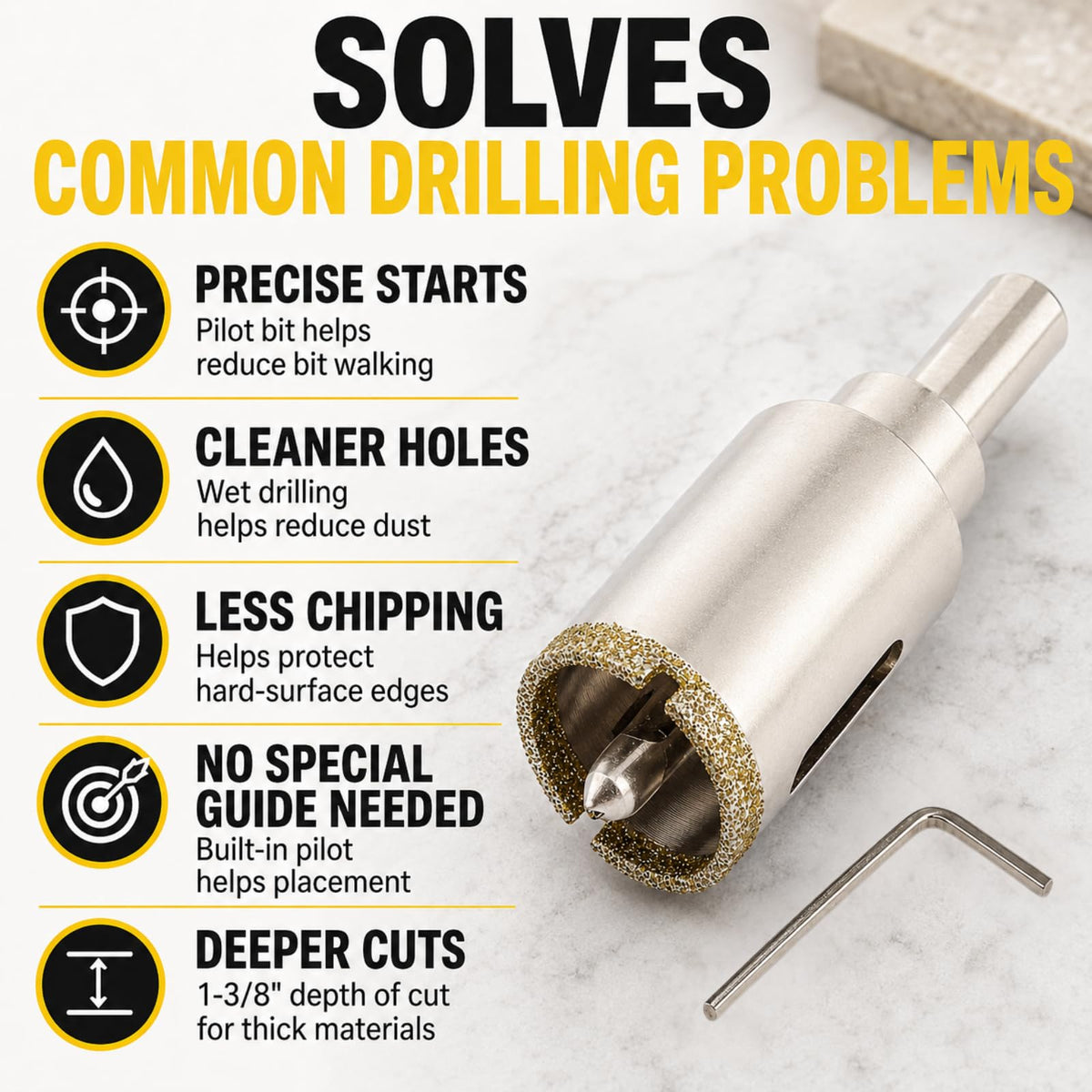

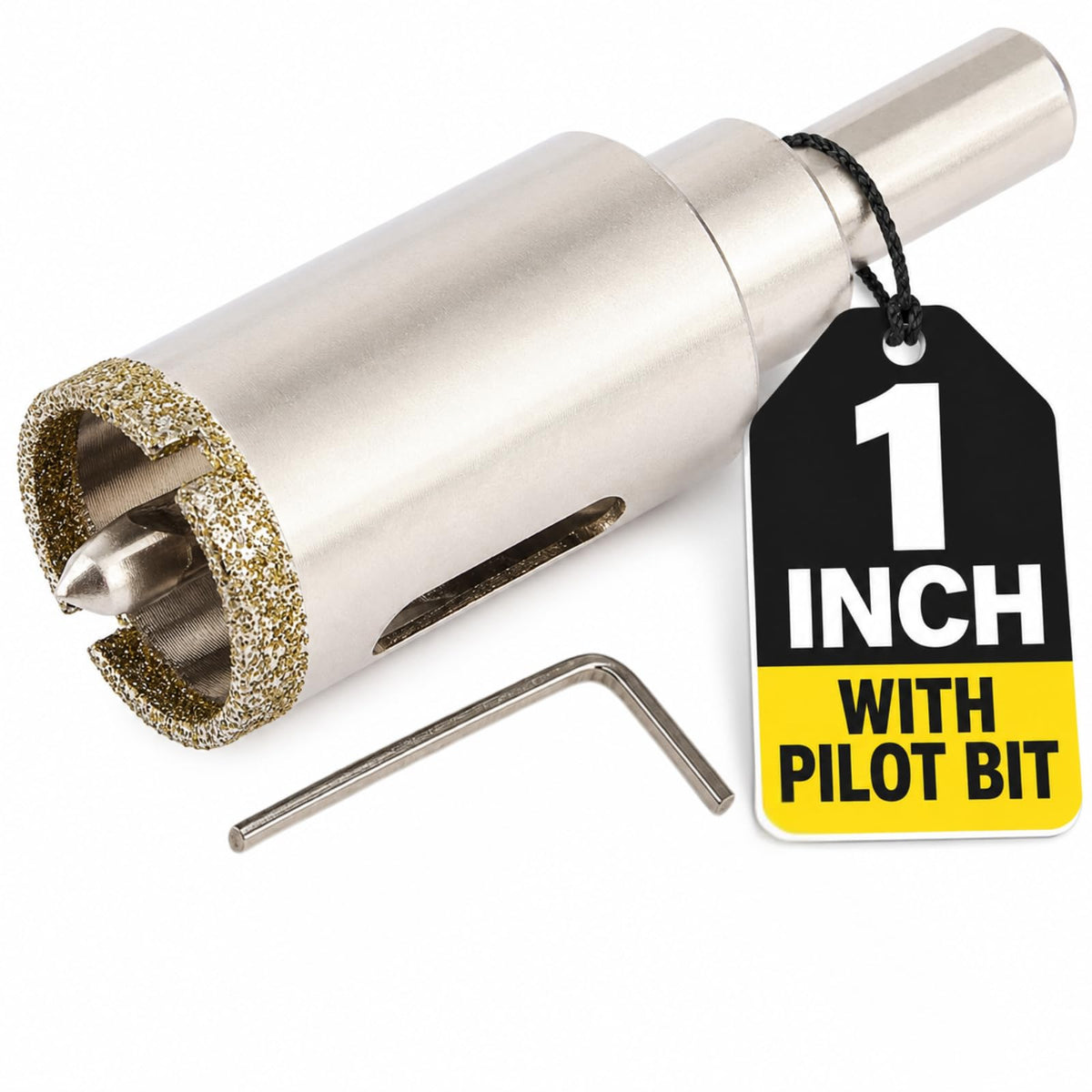

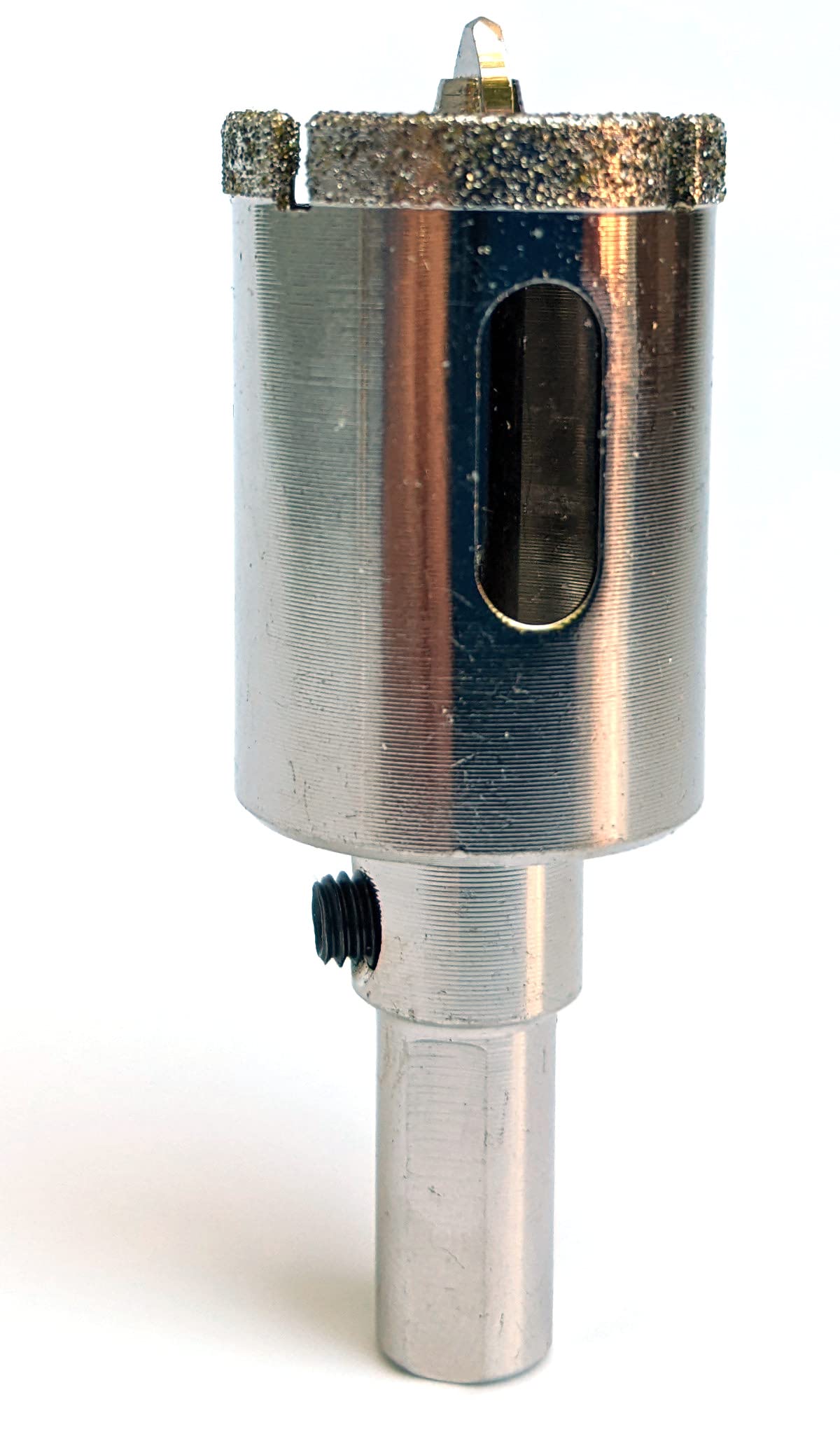

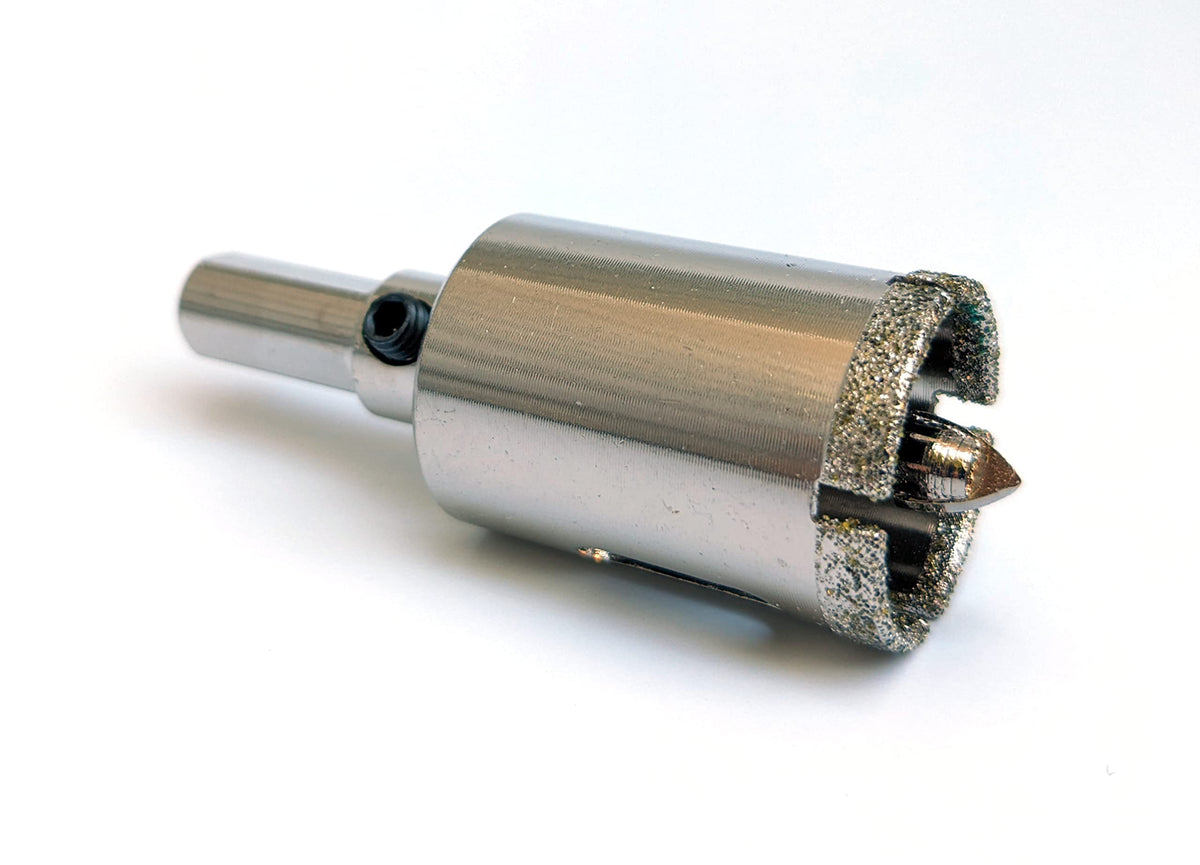

The 1 inch diamond drill bit features a removable pilot drill bit that allows you to create a clean locator ring before continuing the cut. This ensures accurate positioning on smooth tile, quartz, and granite surfaces—especially important for countertop and plumbing installations.
A triple‑layer diamond coating provides enhanced cutting speed, durability, and long‑lasting performance. This advanced coating delivers smooth, chip‑free holes through quartz, granite, porcelain, ceramic tile, and even glass.

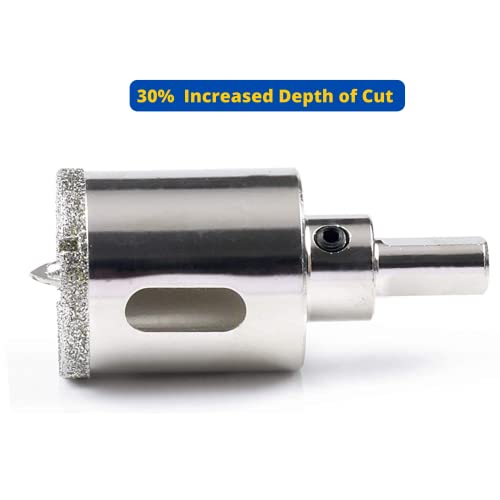

The solid steel body spins true and cools efficiently, reducing vibration and improving precision. Its balanced construction ensures consistent, dust‑free cutting across a wide range of materials.

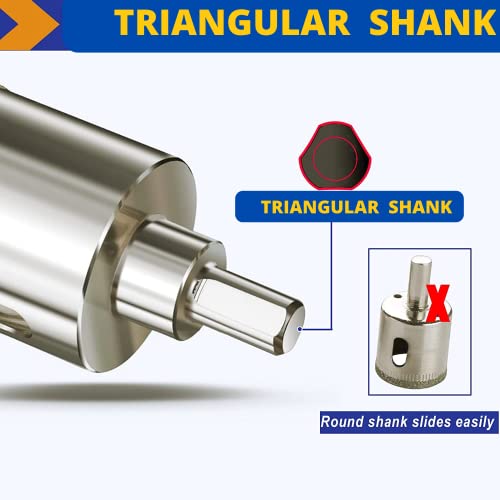

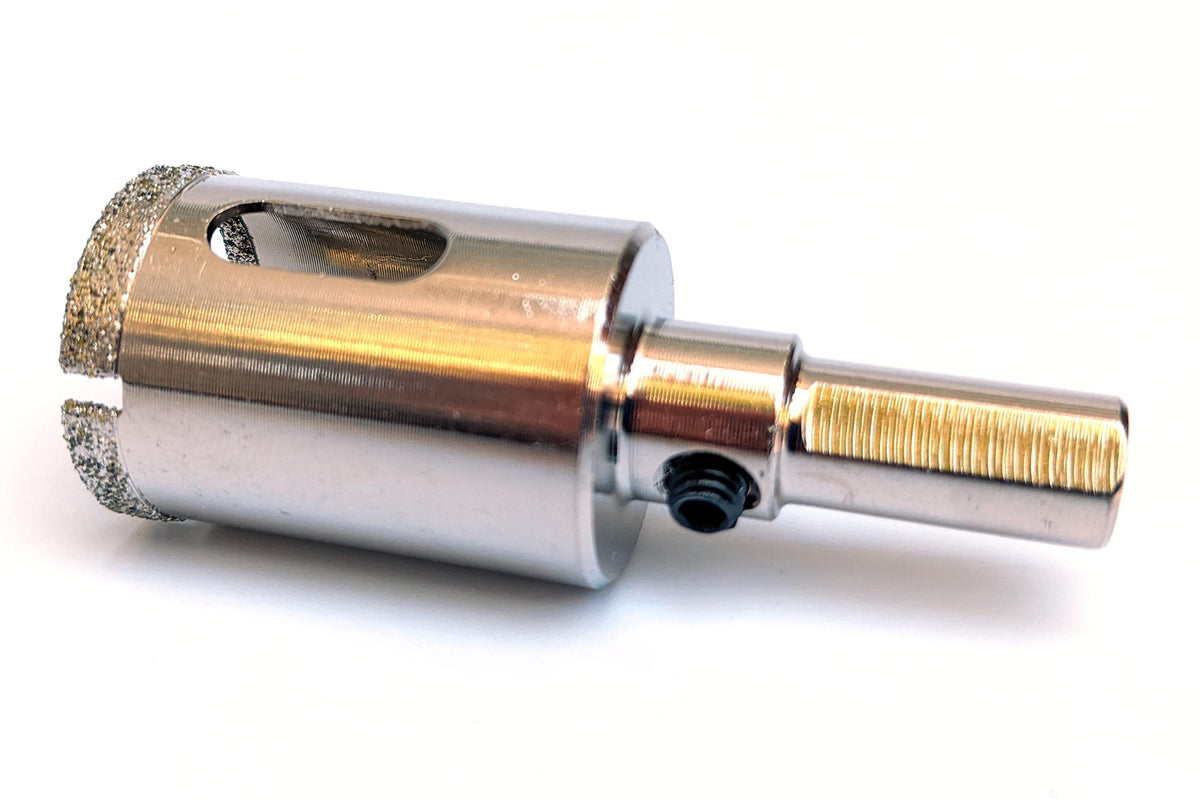

A standard 3/8 inch shank makes it compatible with common household drills. For glass drilling, the bit is used without the pilot drill to prevent cracking and ensure a clean entry.
Compatible Materials
Compatible Materials

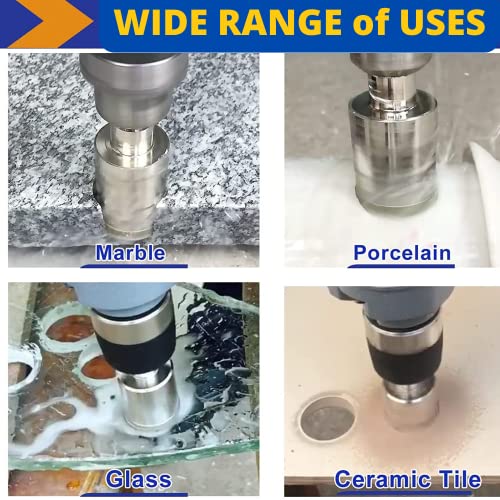

Materials: Tile, porcelain, granite, quartz, marble, ceramic, glass (without pilot drill)
Applications (Sized for 1 inch holes): Countertop accessory openings, small plumbing pass‑throughs, decorative stone or tile cutouts, and general home improvement drilling tasks.

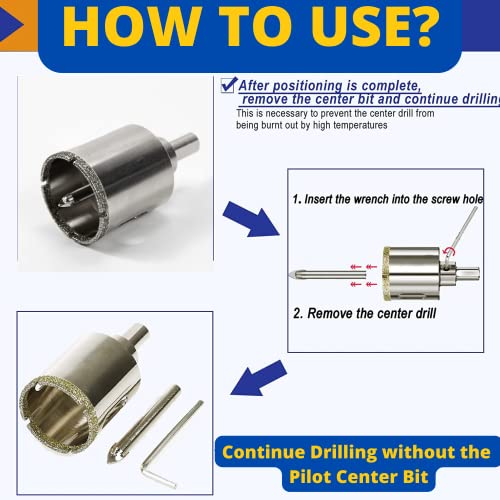

How To Use
How To Use
- Mark & Secure: Mark your center point on the tile. Use the included pilot drill bit to create a shallow 1/8-inch guide ring.
- Remove the Pilot: For best results and to prevent binding, remove the pilot bit after creating the guide ring. The diamond hole saw will use this ring to stay on track.

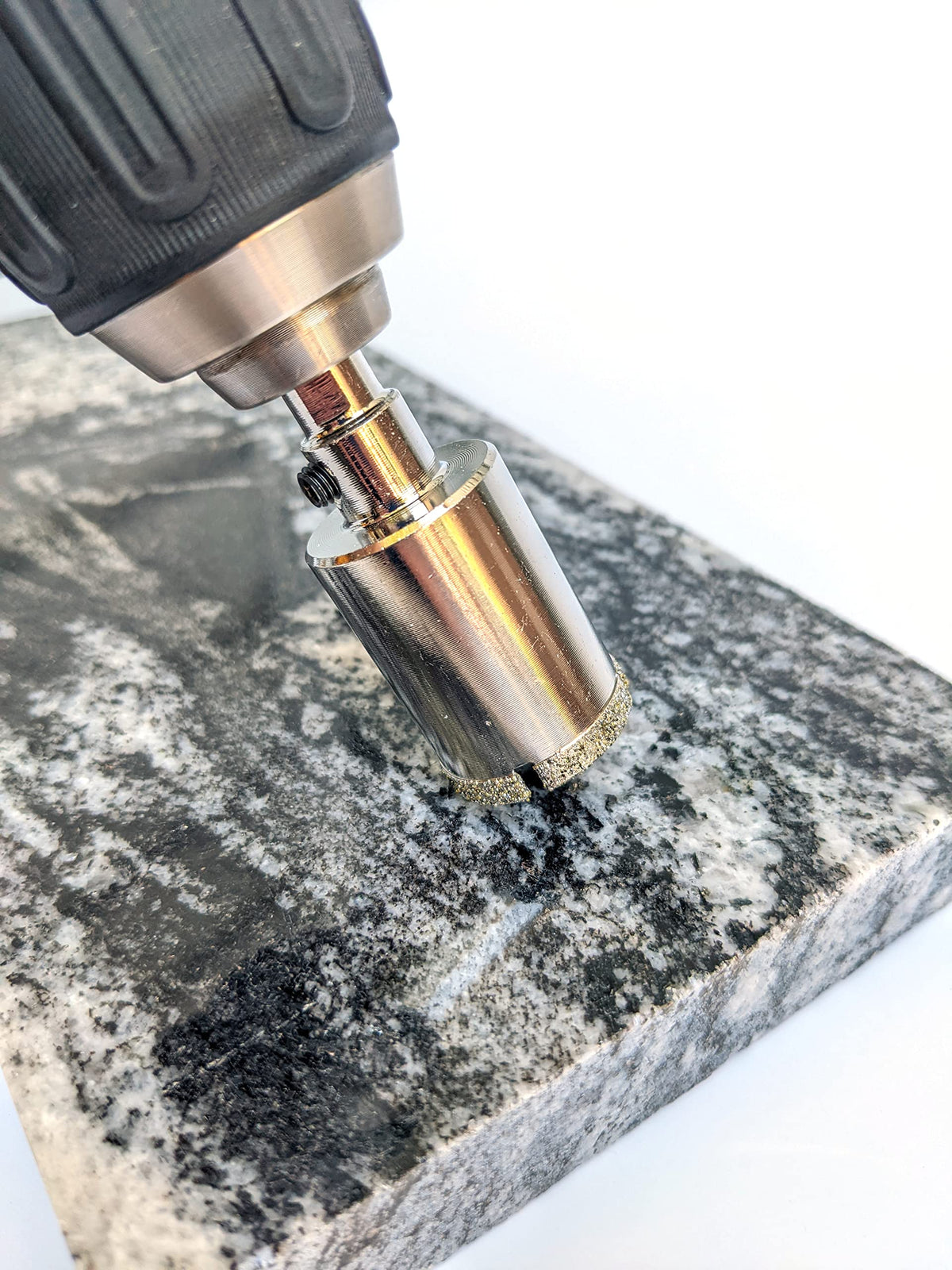

- Drill at Low Speed: Using a standard drill with a 3/8 inch chuck, apply steady, light pressure. Use a low RPM setting (300-500 RPM) and keep the area lubricated with water for cooling and dust control.
- Complete the Cut: Continue drilling until you cut through the material. The diamond grit does the work—let the tool's weight provide the pressure for a clean, precise finish.

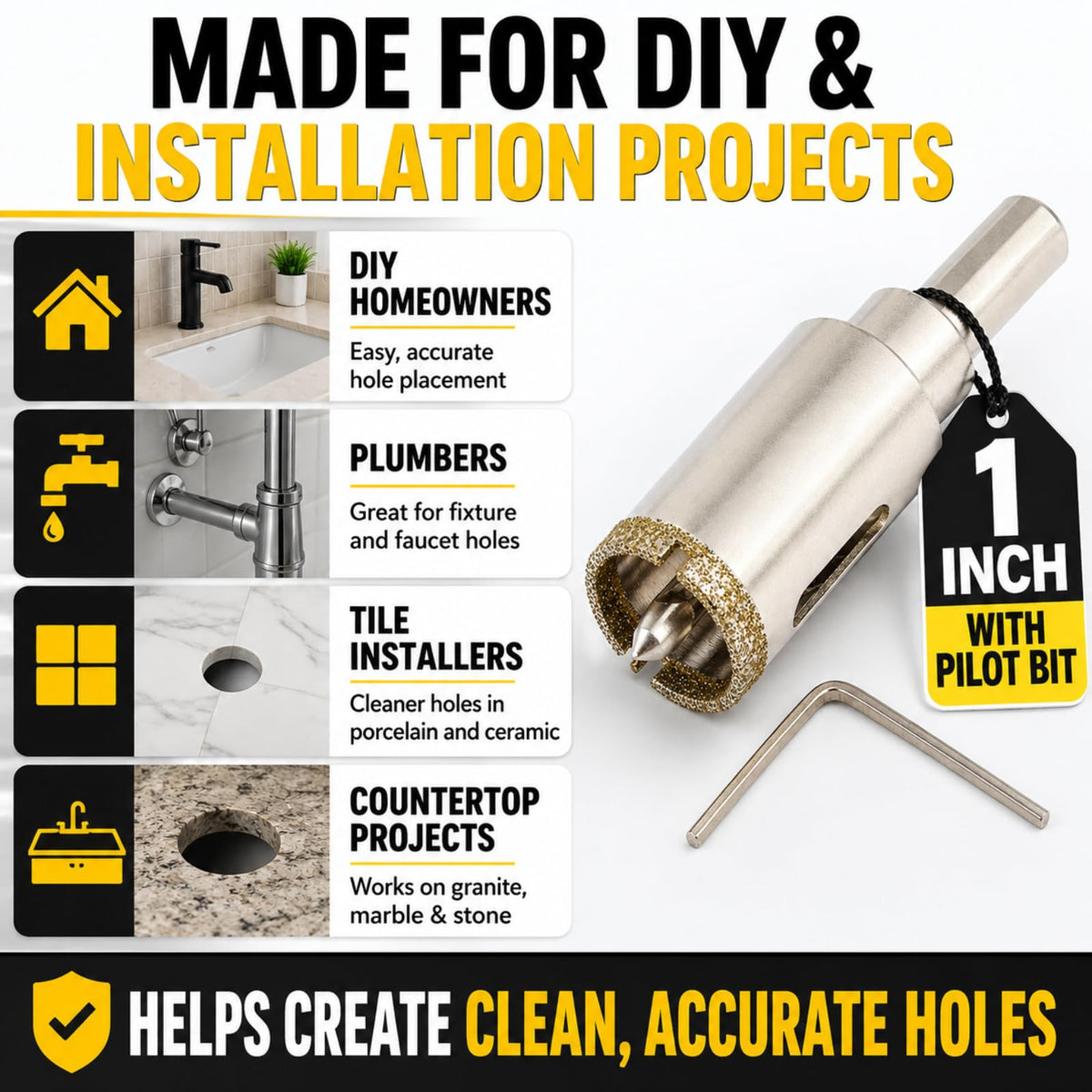

Use Cases
Use Cases

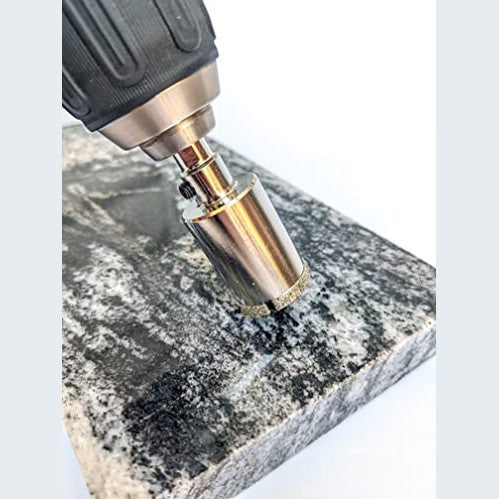

Countertop openings for small fixtures
Plumbing penetrations
Tile and stone backsplash installations
Terra cotta and ceramic pot drilling
Glass drilling (without pilot bit)
Shower and bathroom accessory installations

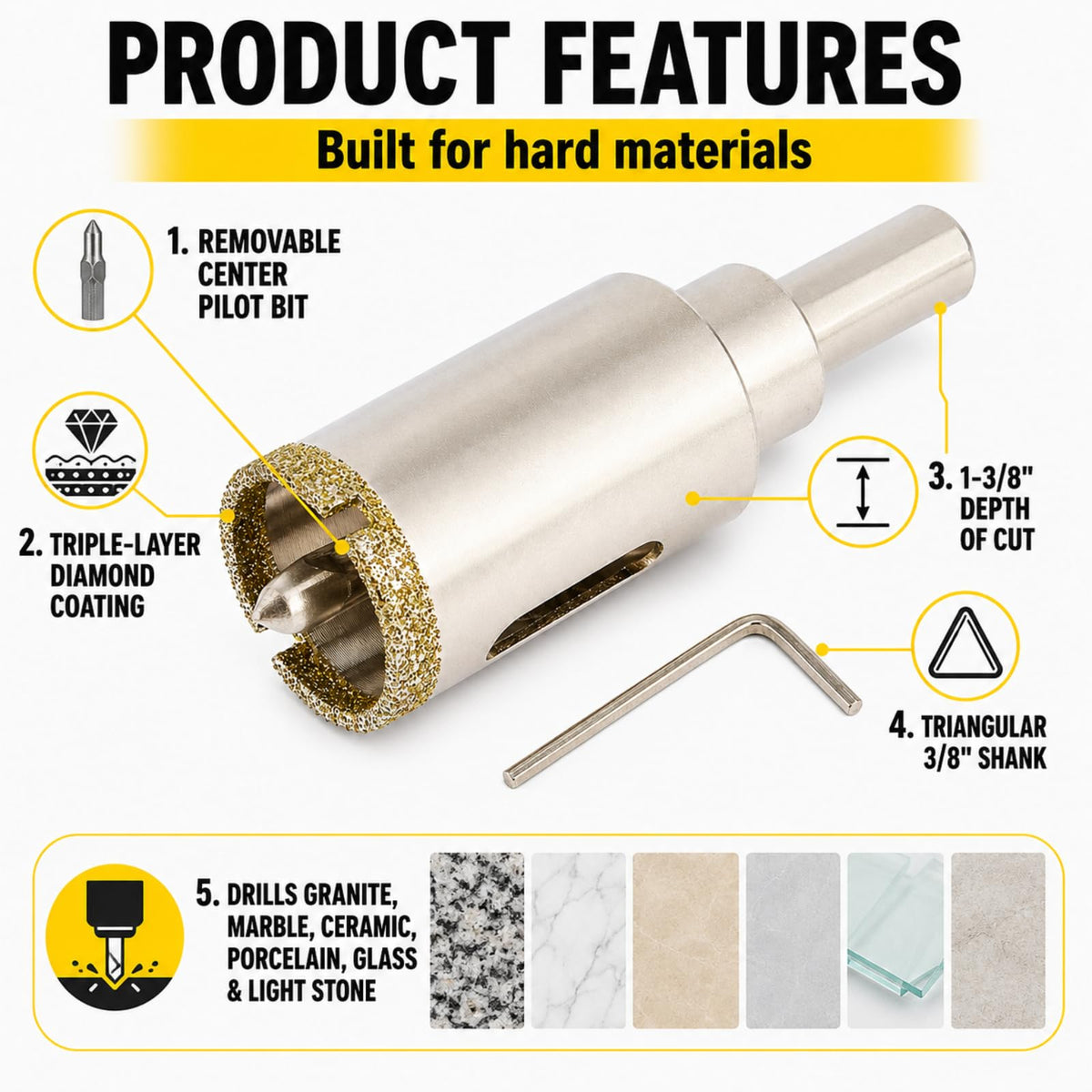

Technical Specifications
Technical Specifications
Diameter: 1 inch
Type: Diamond Drill Bit
Shank: Standard 3/8 inch
Body Material: Solid steel
Cutting Surface: Triple‑layer industrial diamond coating
Pilot Bit: Removable locator pilot
Color: Chrome
UPC: 850004328682
EAN: 0850004328682
Condition: New
F.A.Q.
F.A.Q.
Q: What materials can this diamond hole saw cut?
A: This bit is engineered for hard, brittle materials including ceramic tile, porcelain tile, marble, quartz, granite, and slate. It is not designed for wood, metal, or plastic.
Q: Is it compatible with my drill?
A: Yes. It features a standard 3/8-inch round shank, making it compatible with most standard corded drills, cordless drills, and drill presses. No special adapter is needed.
Q: Why should I remove the pilot drill bit?
A: The pilot bit's sole purpose is to create a small starter guide ring. Removing it prevents the bit from binding in the material, reduces friction and heat, and allows the diamond core to cut more efficiently for a smoother, faster result.
Shipping & Returns
Shipping & Returns
All DRILAX orders are fulfilled directly from our New Jersey headquarters or a regional warehouse strategically located near you. We offer Free Shipping on all orders with no minimum purchase required. Most customers receive their precision tools within 2-3 business days, ensuring your project stays on schedule.
We have a 30-day return policy.
