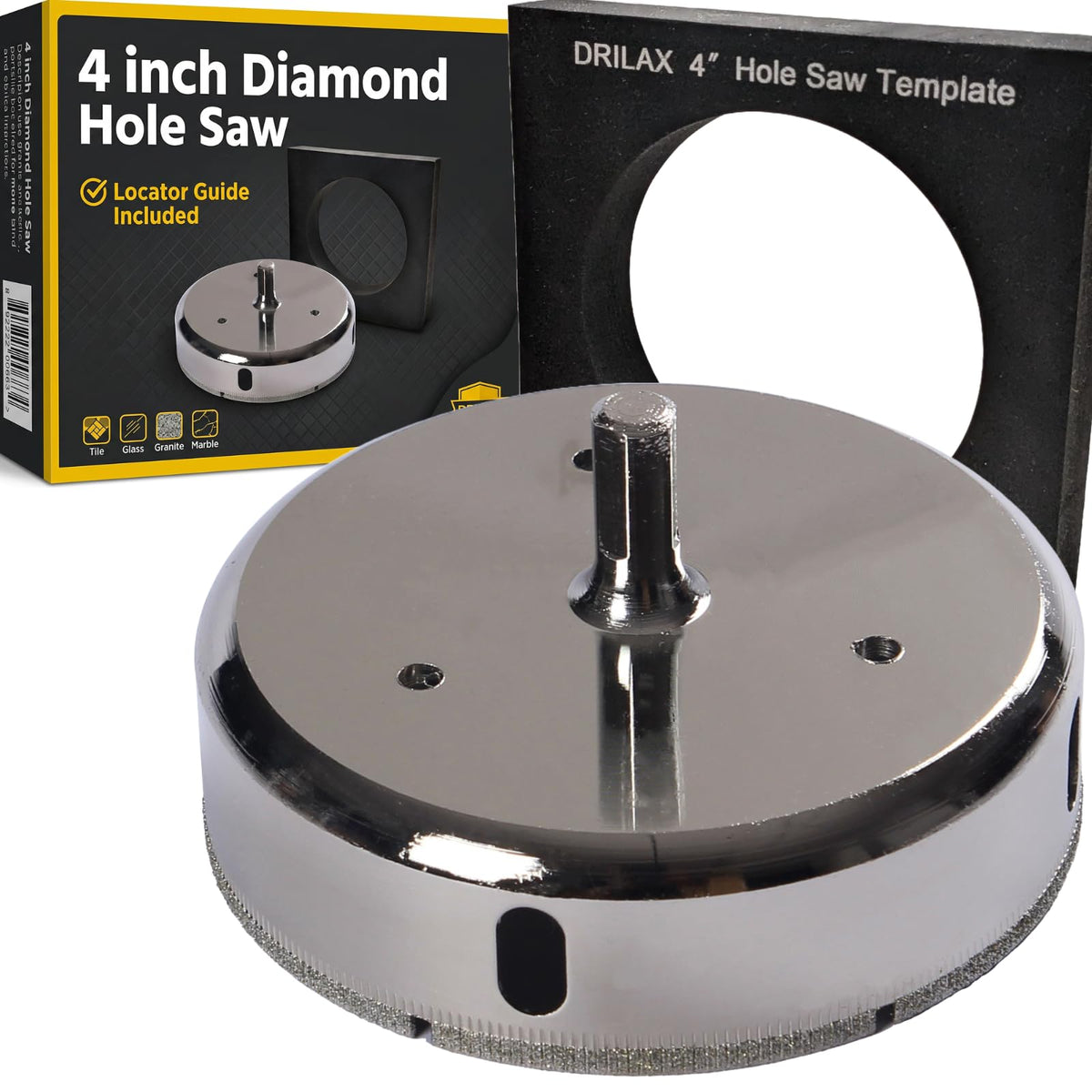

• 4 inch diamond hole saw kit with locator guide

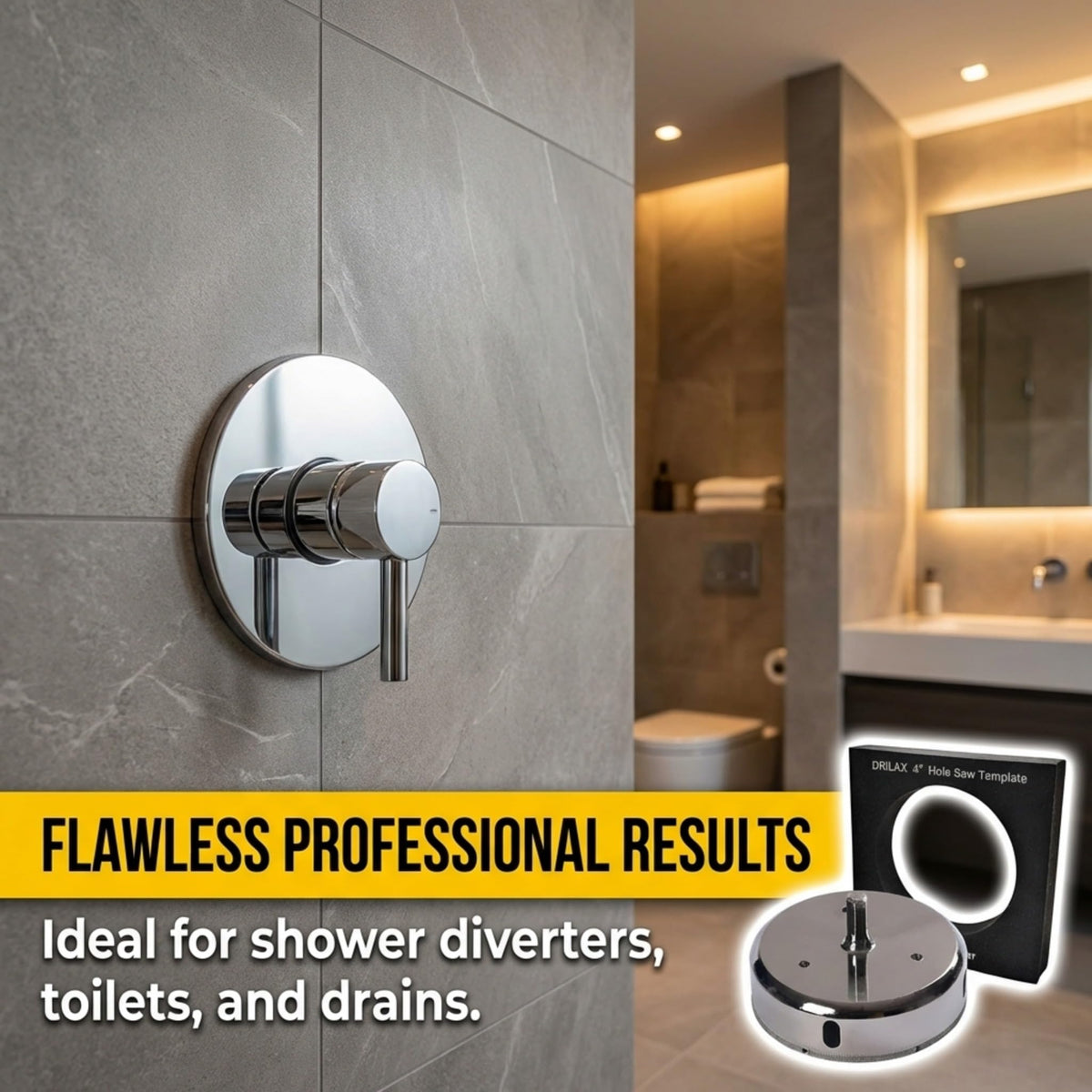

  • Ideal for shower diverters, toilets and drains

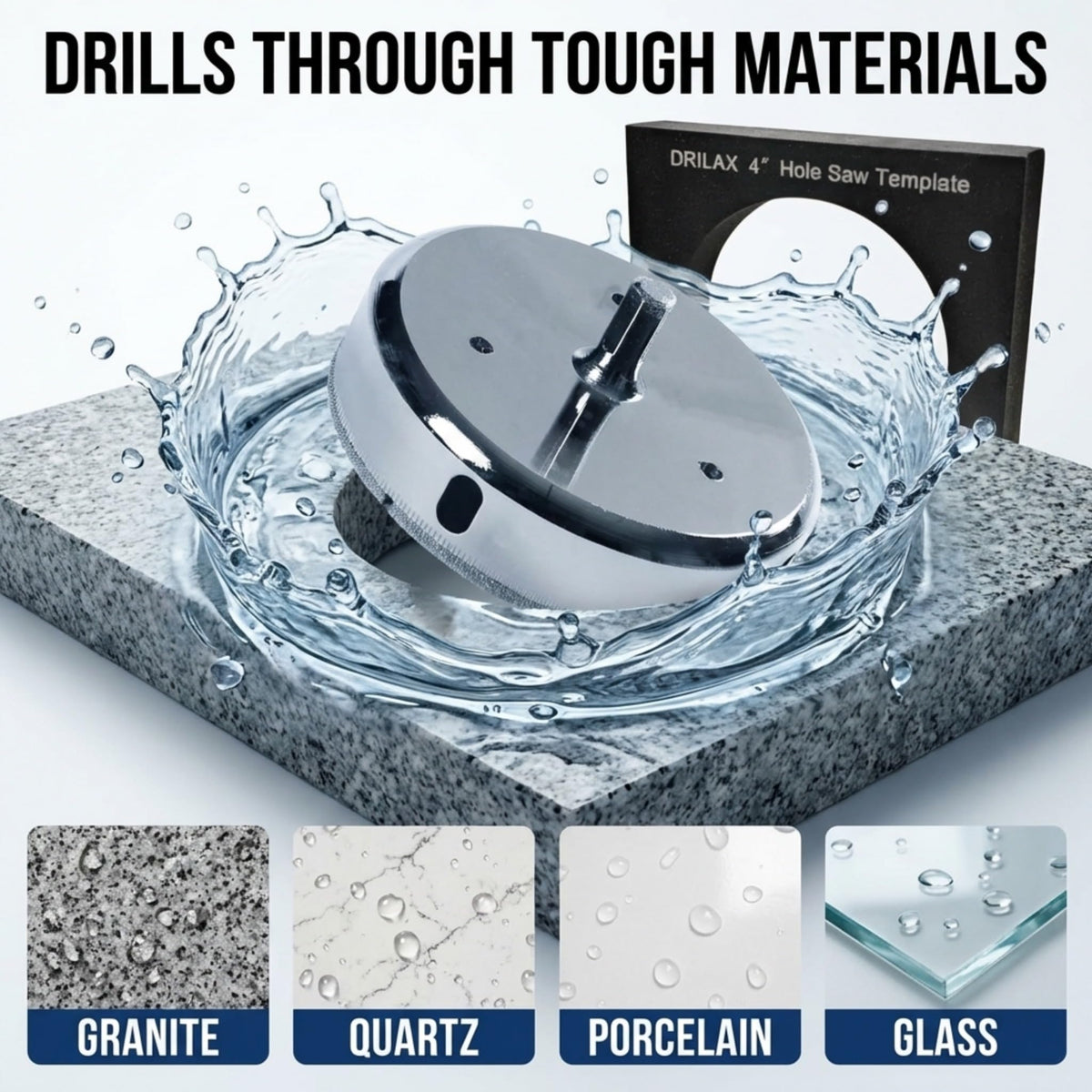

  • Drills granite, quartz, porcelain and glass

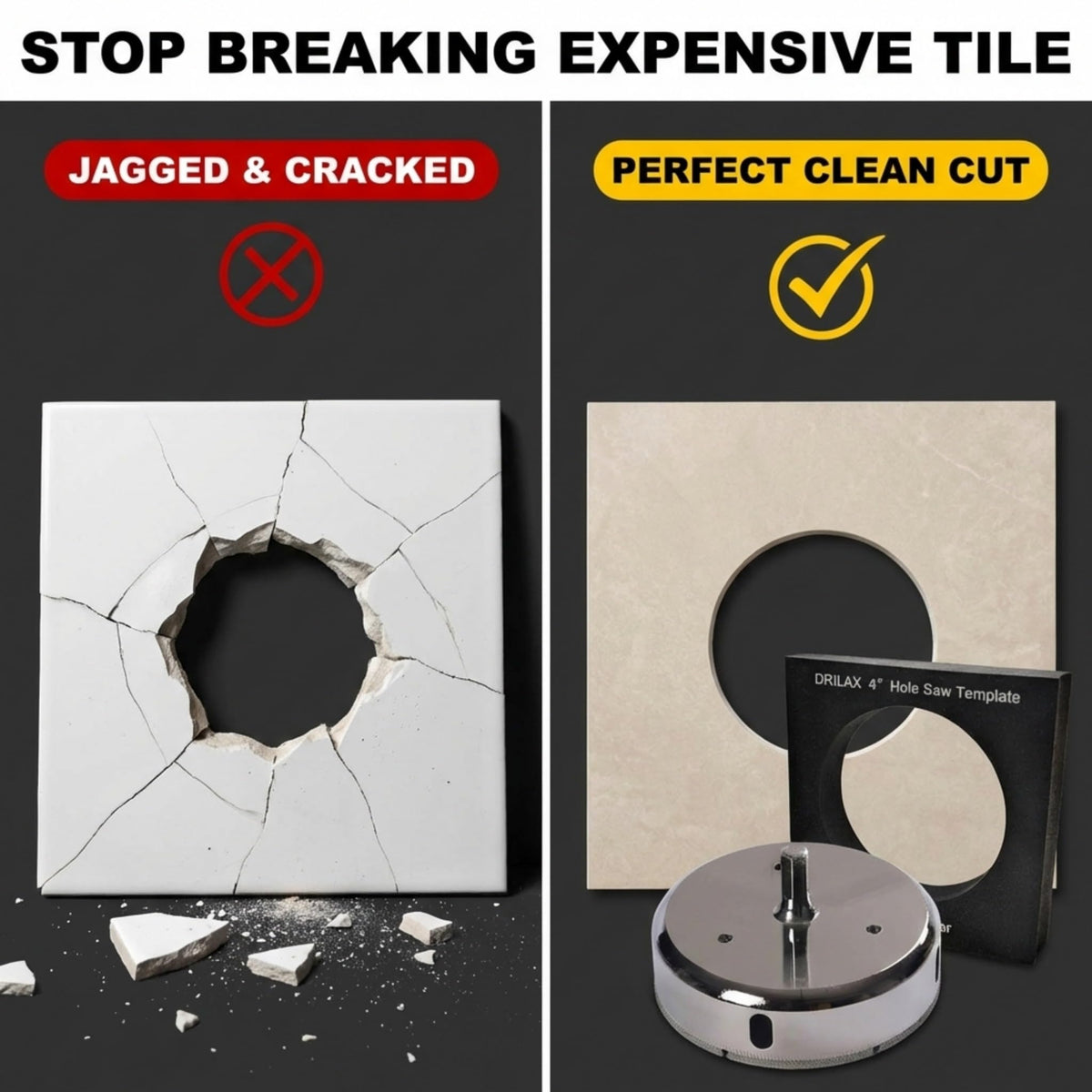

  • With the guide: a clean cut instead of jagged, cracked tile

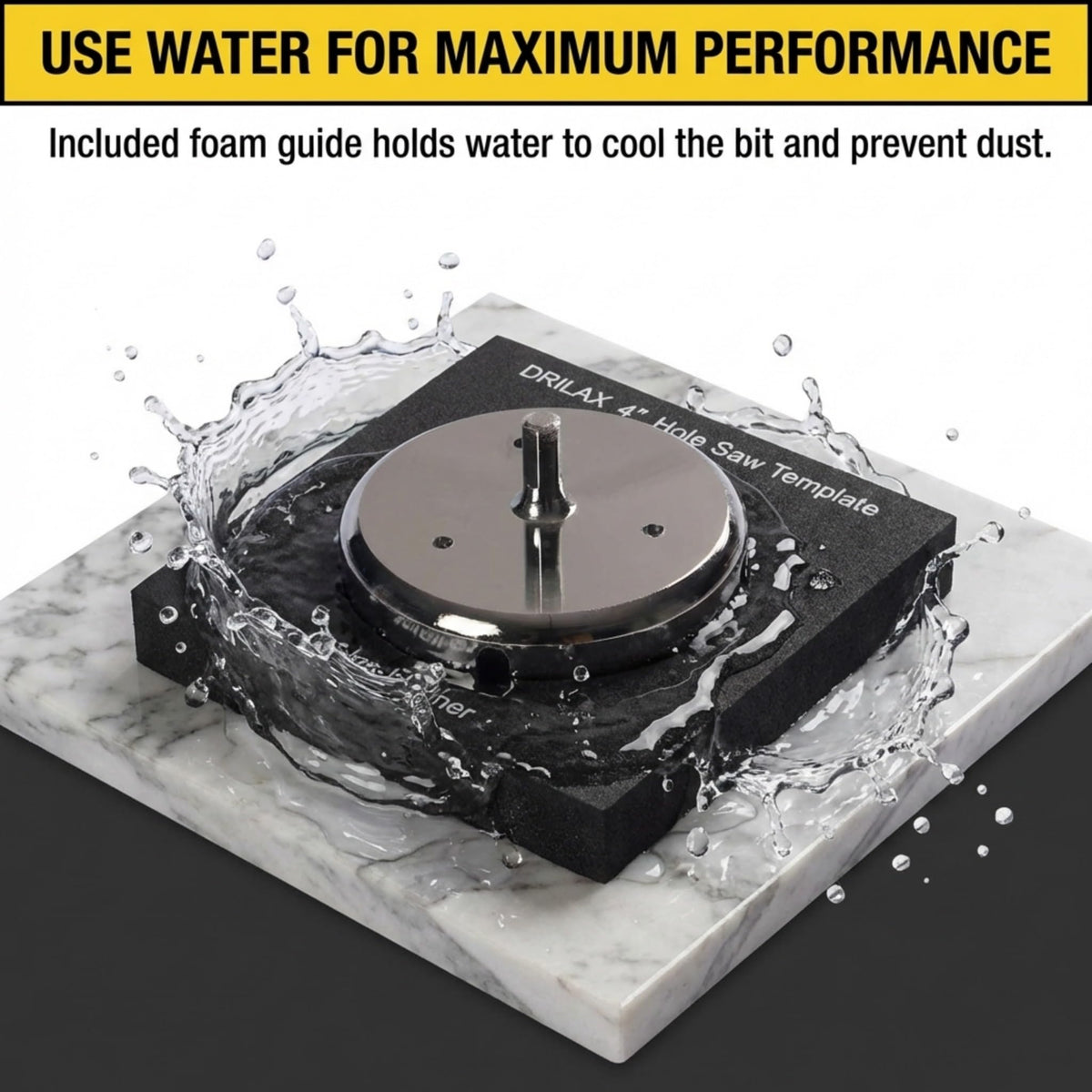

  • Included guide holds water to cool the bit and reduce dust

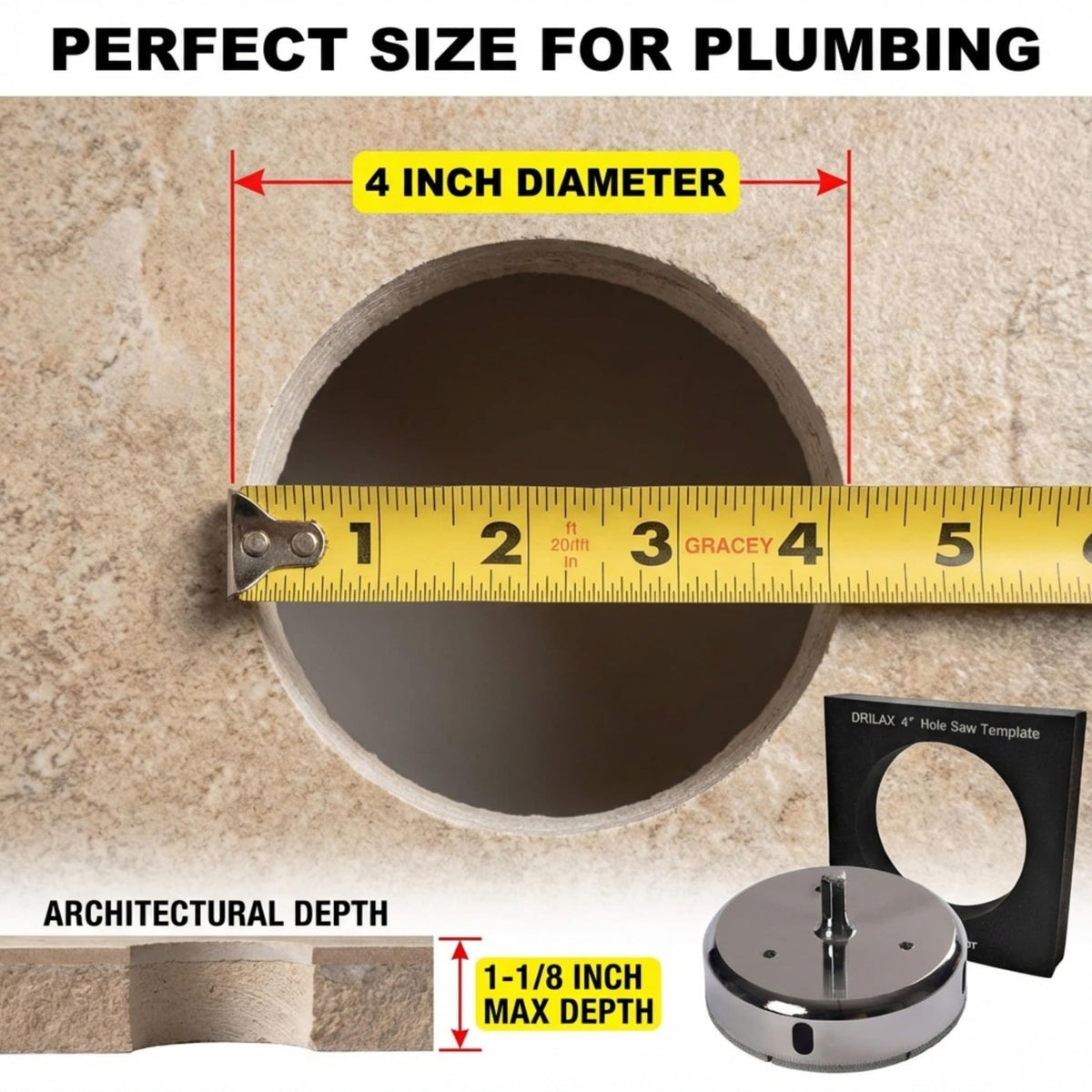

  • 4 inch diameter hole, 1-1/8 inch maximum depth

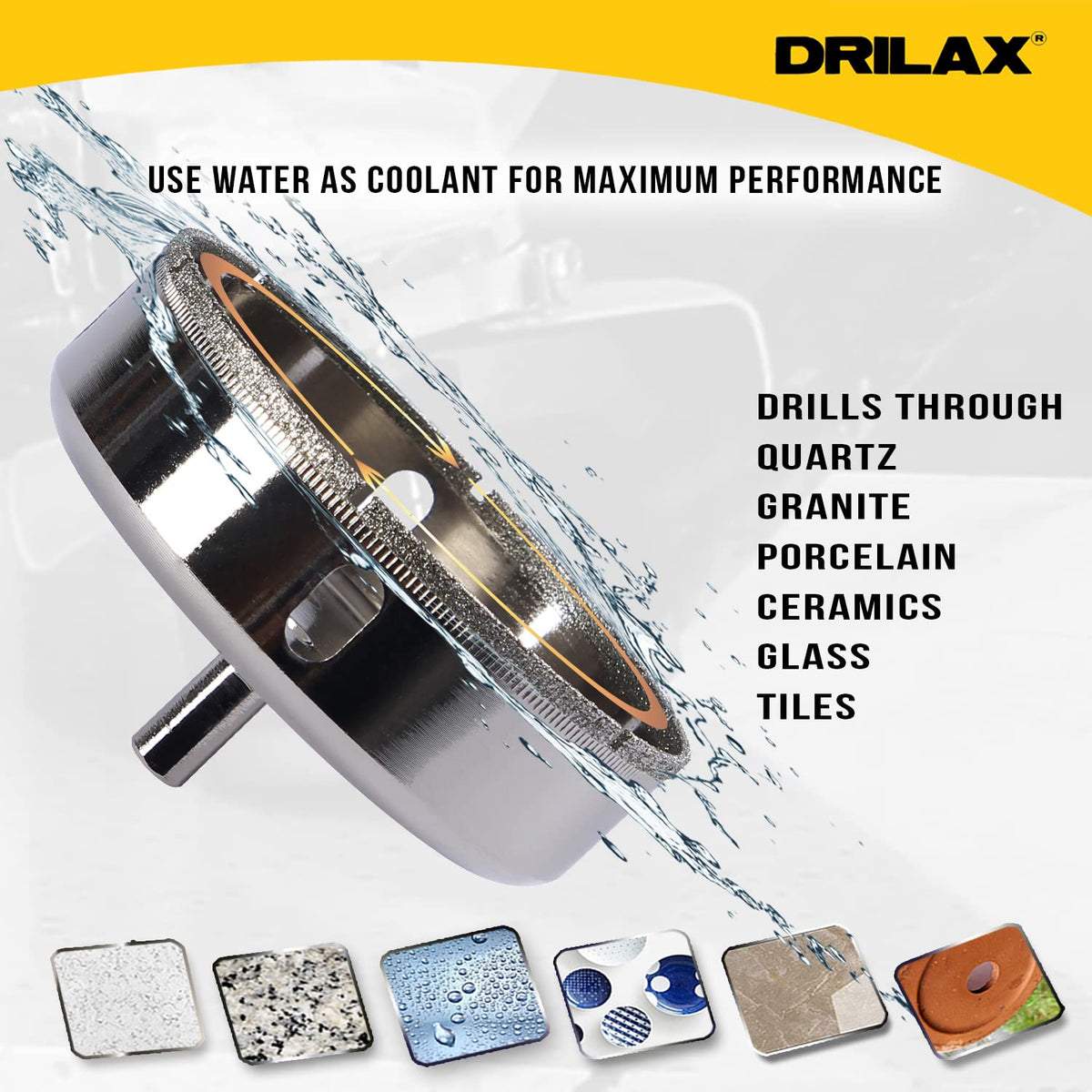

  • Use water as coolant: drills quartz, granite, porcelain, ceramic, glass and tile

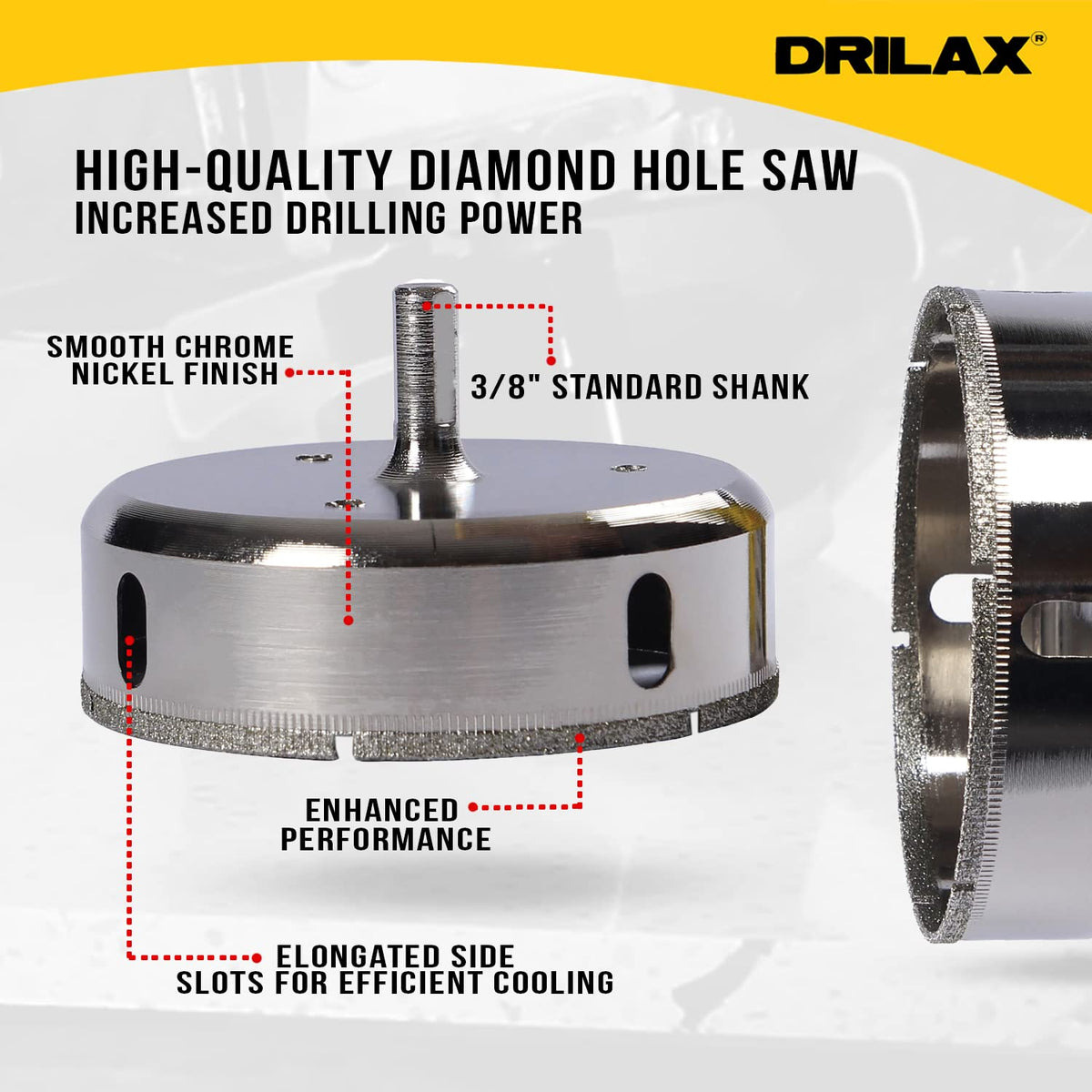

  • Smooth chrome nickel finish, 3/8 inch standard shank, elongated side slots for cooling

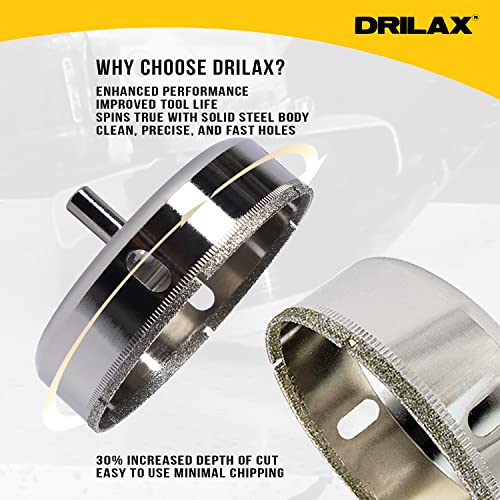

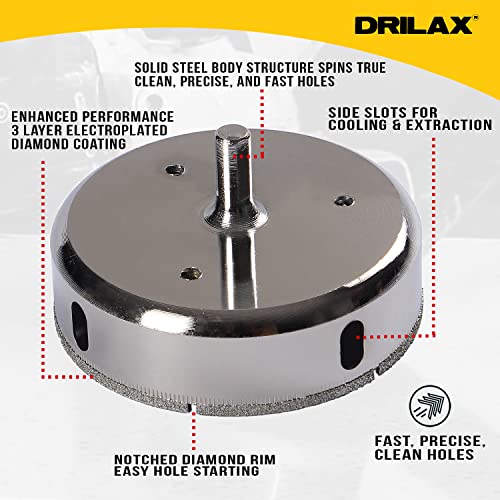

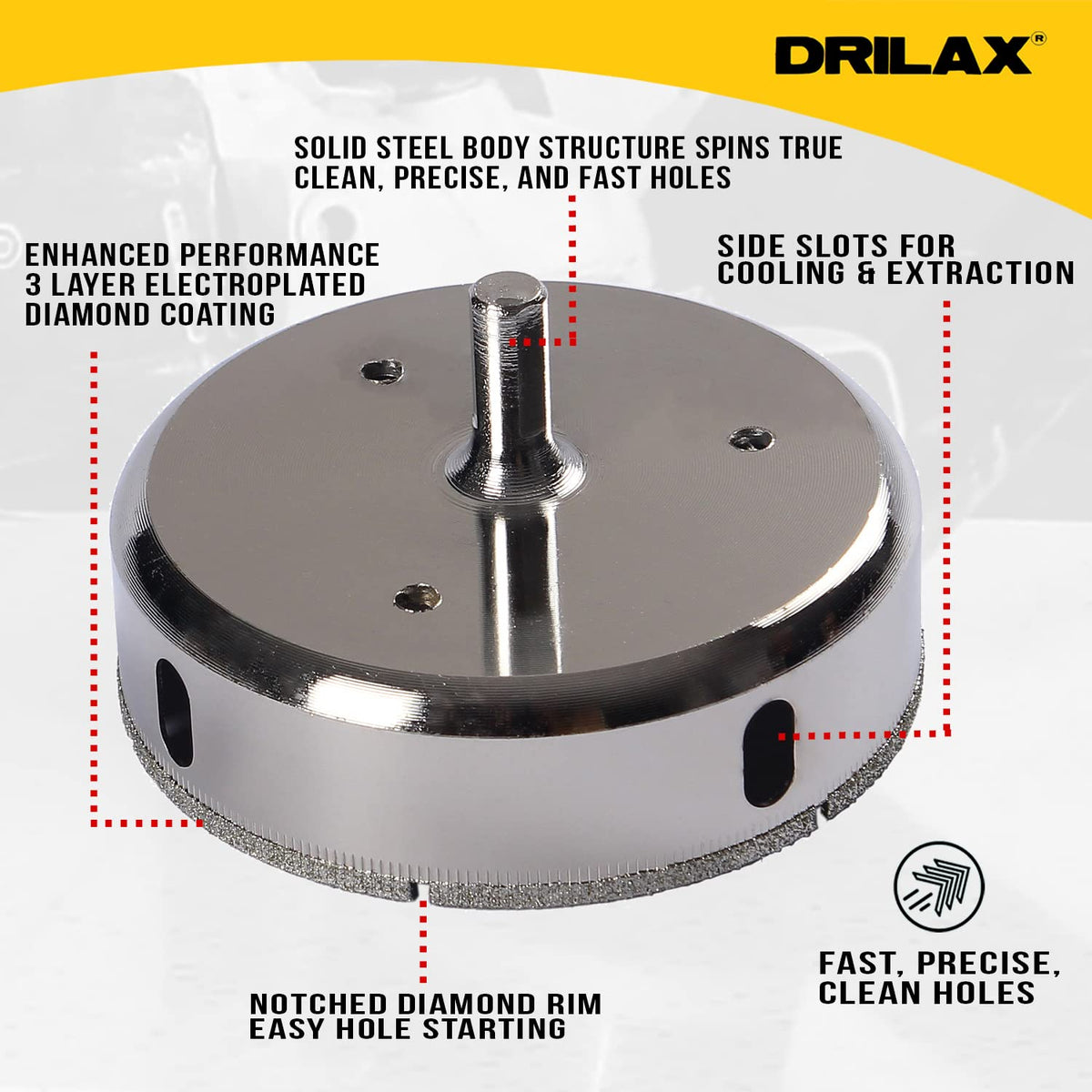

  • Solid steel body, 3 layer electroplated diamond coating, side slots and notched diamond rim
1 9

Drilax

4 Inch Diamond Hole Saw Kit with Drill Guide – Tile, Porcelain, Glass & Granite (Chrome Series)

4 Inch Diamond Hole Saw Kit with Drill Guide – Tile, Porcelain, Glass & Granite (Chrome Series)

A 4 inch Chrome Series diamond hole saw with drill guide for clean, chip-free holes in tile, porcelain, glass, granite and quartz.

$24.99 USD
$32.94 USD $24.99 USD
Sale Sold out
FREE Shipping

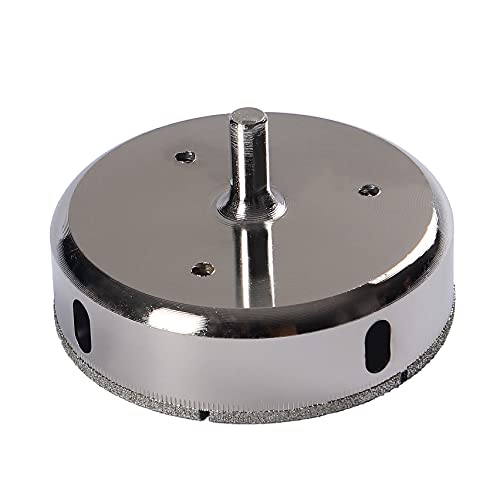

The Drilax 4 Inch Chrome Series Diamond Hole Saw Kit cuts clean, round 4 inch openings in porcelain, ceramic, tile, glass, granite, quartz and marble. A triple layer of electroplated diamond on a solid steel body grinds through hard, brittle materials instead of cracking them, so you get a smooth hole without an angle grinder. It has a 1-1/8 inch depth of cut and a standard 3/8 inch shank that fits the drill you already own. It is sized for shower valves, drains, toilet flanges and pipe pass-throughs. The included drill guide keeps the bit from wandering at the start and holds water around the cut.

Benefits

Triple-Layer Diamond Coating: Electroplated diamond grit on a notched rim grinds clean, chip-free holes in tile, stone and glass.

Drill Guide Included: Stops the bit from skating on smooth tile and holds water to cool the cut.

Solid Steel Body: Spins true with less wobble, even on a hand drill, and holds up to repeated large cuts.

1-1/8" Depth of Cut: Clears full tile and backer board, and thick countertops.

3/8" Standard Shank: Fits standard corded and cordless drills and drill presses, no adapter needed.

Compatible Materials

  • Materials: Porcelain, ceramic, tile, glass, granite, quartz, marble and natural stone.
  • Tool Compatibility: Standard corded and cordless drills and drill presses.
  • Not For: Concrete, brick, metal or wood. Do not use hammer mode or run it dry.

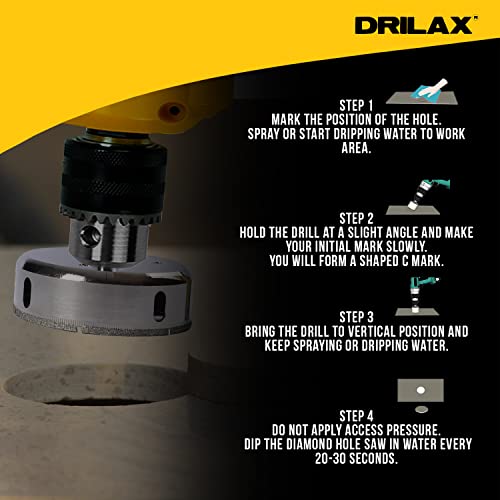

How To Use

  • Position the Guide: Place the included guide over your mark so the opening sits where you want the hole.
  • Add Water: Fill the guide opening with water, or keep spraying or dripping water on the cut.
  • Start Slowly: Run the drill at low speed and let the guide hold the bit in place while the diamond cuts a groove.
  • Light Pressure: Keep the drill upright, keep the cut wet and let the diamonds do the work. Lift the bit out to add water as needed.

Use Cases

  • Shower Valves: Diverter and valve openings in porcelain and ceramic tile.
  • Toilet Flanges: Clean openings for toilet flange installs.
  • Drains: Drain openings in tile floors.
  • Pipes: Large pipe pass-throughs in tile and stone.

Technical Specifications

  • In the Box: 1 x 4 inch diamond hole saw, 1 x drill guide

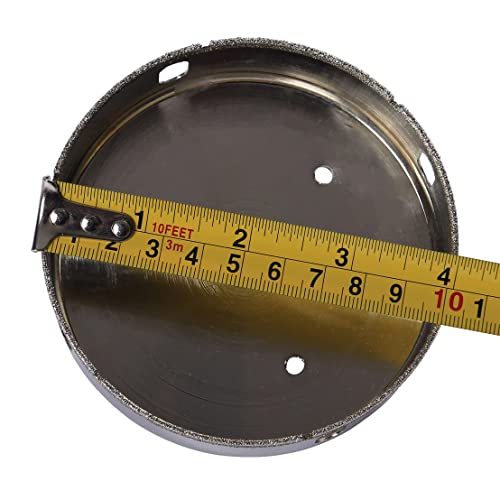

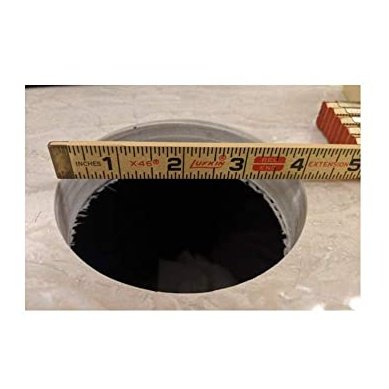

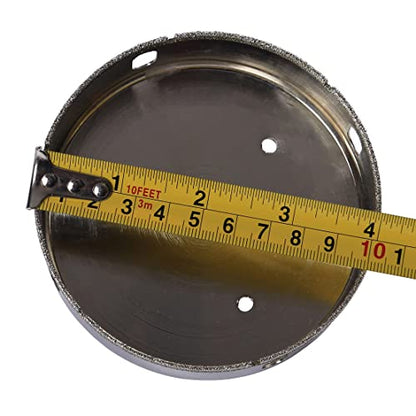

  • Hole Diameter: 4 inches

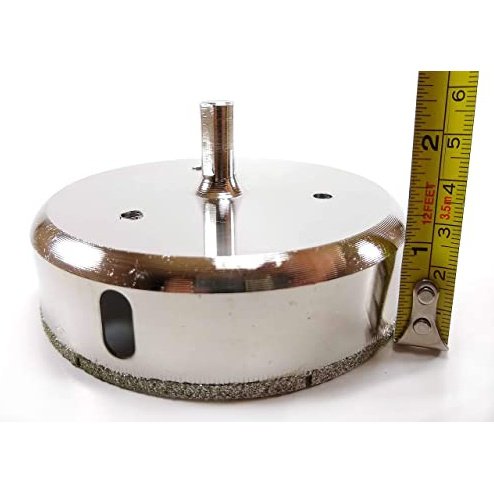

  • Depth of Cut: 1-1/8 inches
  • Shank: 3/8 inch standard
  • Body: Solid steel, chrome nickel finish
  • Cutting Surface: Triple-layer electroplated diamond
  • Pilot Bit: None (start at an angle or use a guide)
  • Use Type: Wet drilling only

F.A.Q.

Q: What materials can it drill?
A: Porcelain, ceramic tile, glass, granite, quartz, marble and natural stone. It is not designed for concrete, brick, metal or wood.
Q: Do I need water?
A: Yes. This is a wet-use bit. Keep the cut wet to cool the diamonds, control dust and get a clean, chip-free hole. Running it dry wears the diamond coating quickly.
Q: How do I keep the bit from wandering?
A: Use the included guide: set it over your mark, add water and start at low speed.
Q: Will it fit my drill?
A: Yes. The 3/8 inch standard shank fits most corded and cordless drills and drill presses.
Q: What is the difference between Chrome and Vacuum Brazed hole saws?
A: Chrome Series bits have an electroplated diamond coating and are a great value for tile, glass and occasional stone work. Vacuum brazed bits have a tougher diamond layer for heavy use on granite and quartz.

Shipping & Returns

All DRILAX orders are fulfilled directly from our New Jersey headquarters or a regional warehouse strategically located near you. We offer Free Shipping on all orders with no minimum purchase required. Most customers receive their precision tools within 2-3 business days, ensuring your project stays on schedule.

We have a 30-day return policy.
