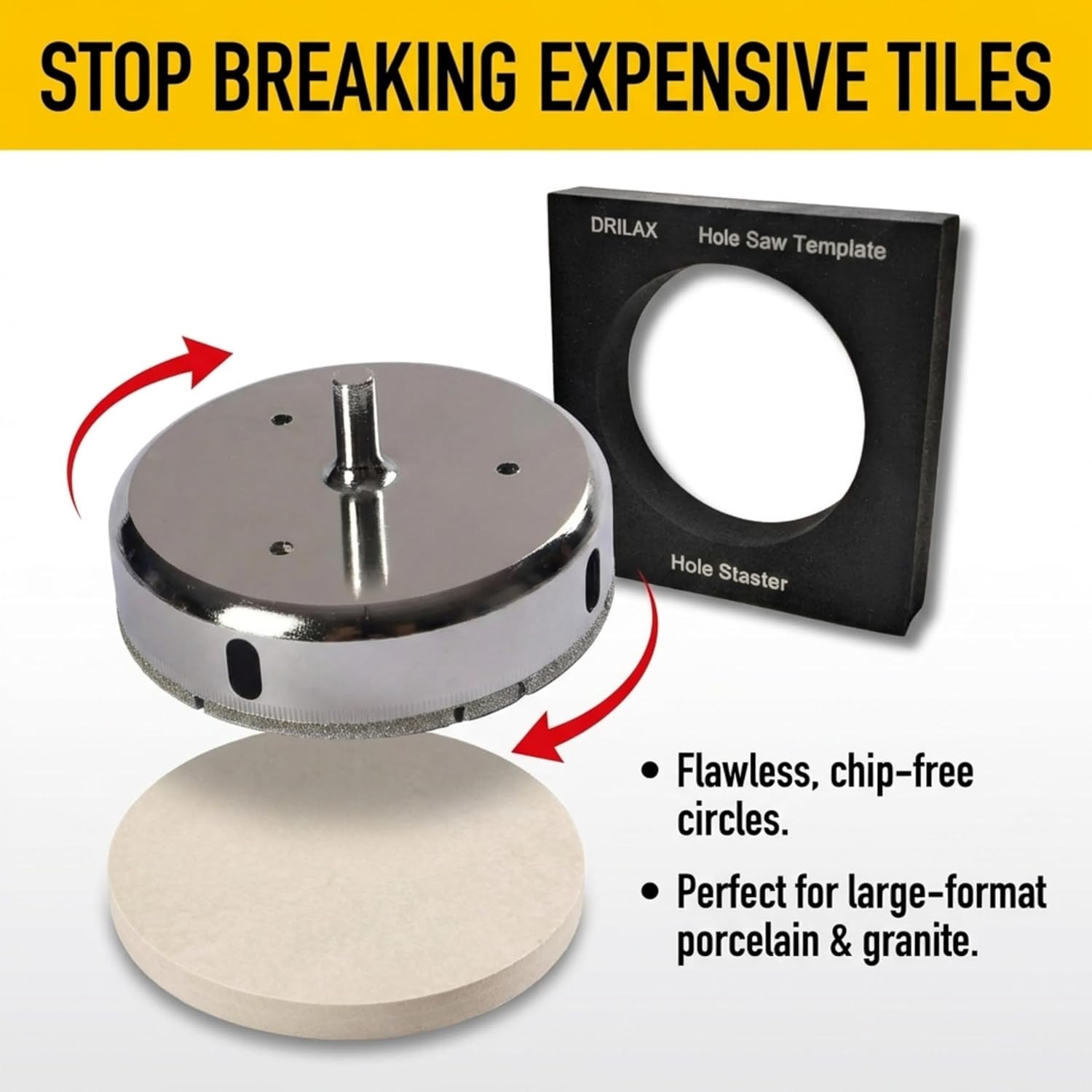

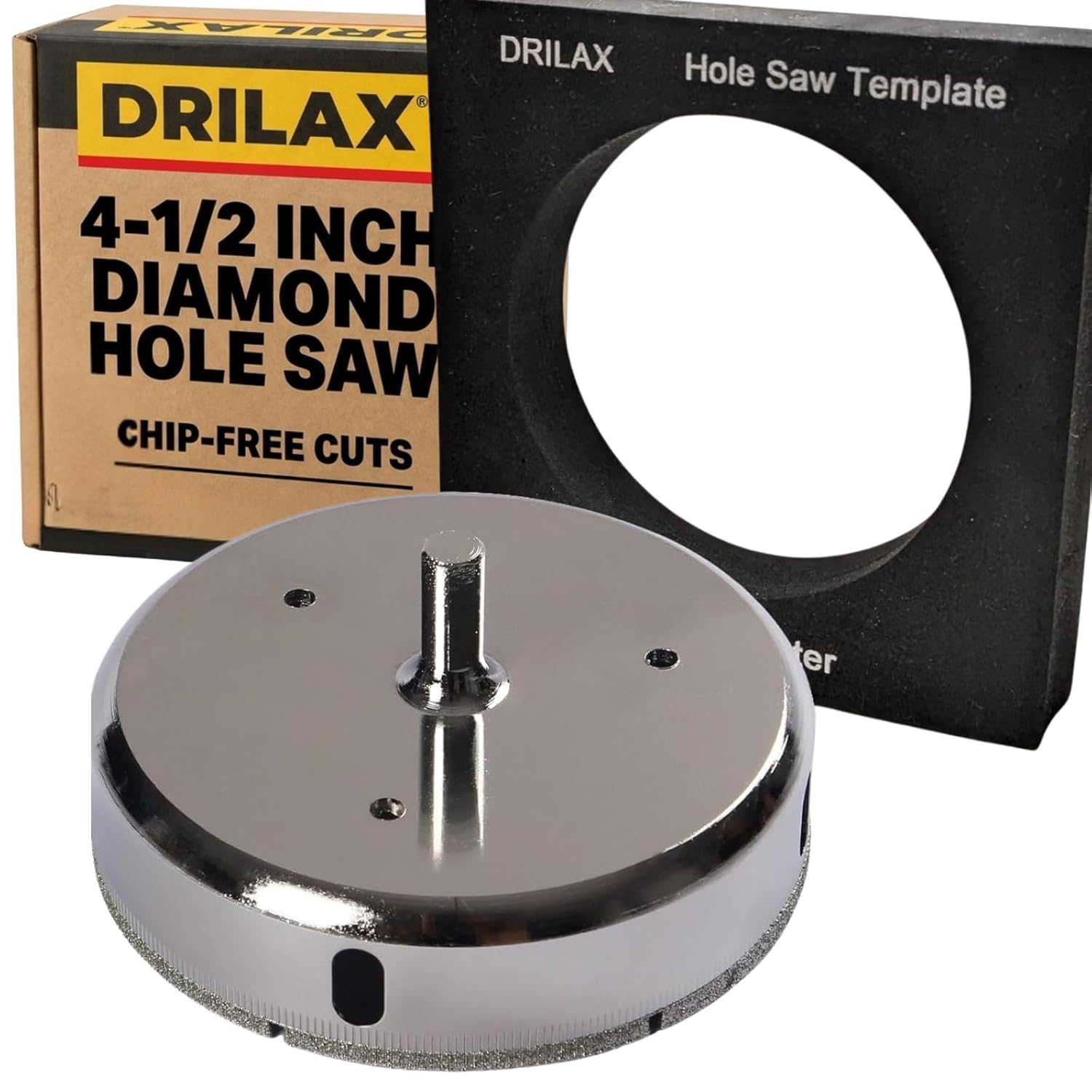

4-1/2 inch Chrome Series Diamond Hole Saw Drill Bit Template Guide Included

(134)

4-1/2 inch Chrome Series Diamond Hole Saw Drill Bit Template Guide Included

Rated 4.8/5 based on 134 customer reviews

Regular price $47.94 USD
Regular price $47.94 USD Sale price $47.94 USD
Shipping calculated at checkout.
 More payment options

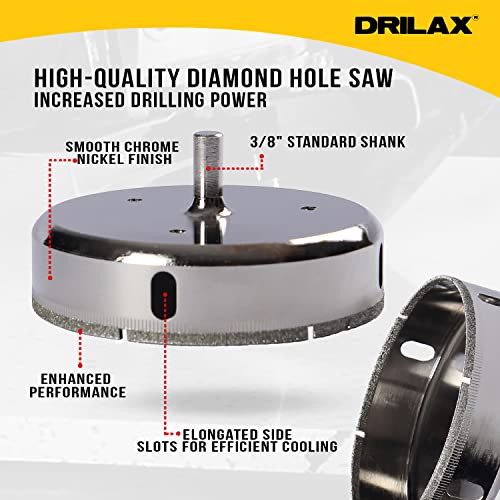

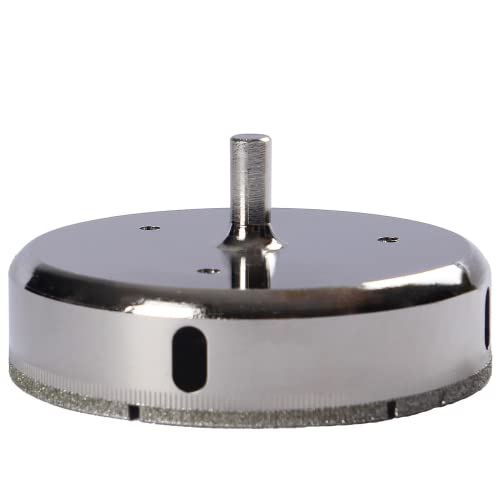

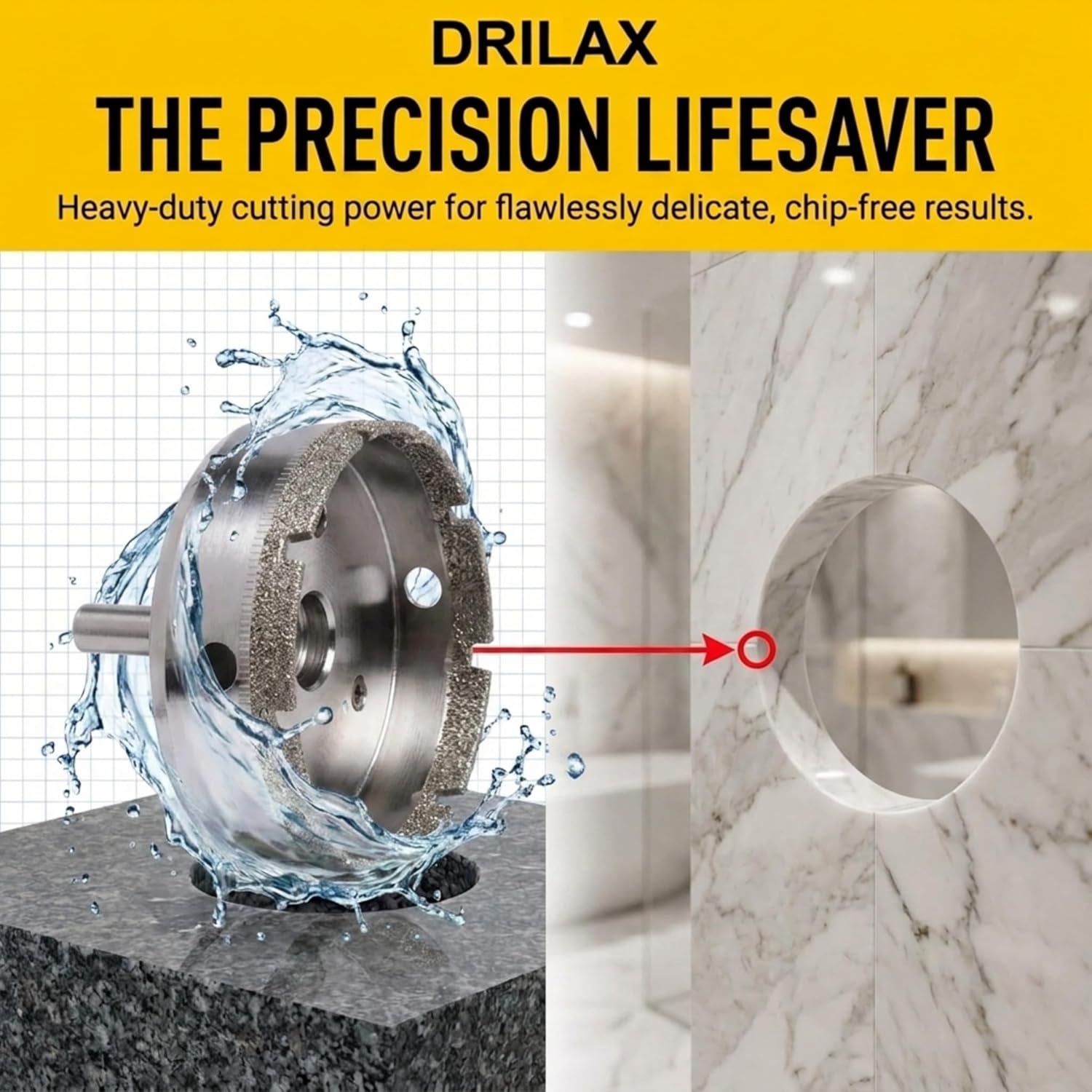

The DRILAX 4-1/2 Inch Chrome Series Diamond Hole Saw Drill Bit is designed for professionals who demand precision and durability. This high-quality drill bit features a 3/8 inch standard shank size, making it compatible with most electric and rechargeable drills. It delivers exceptional performance when drilling through tough materials like ceramic, porcelain, glass, marble, quartz, and granite.

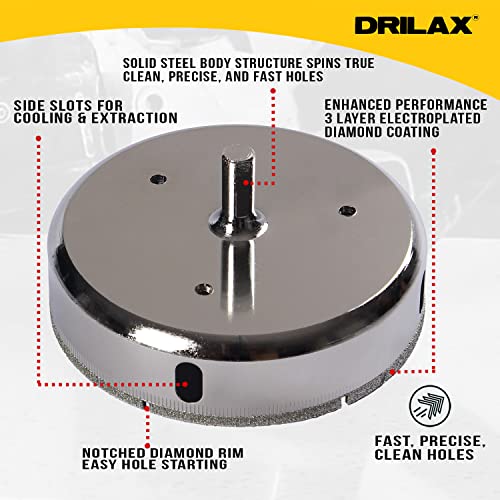

Features Of Diamond Hole Saw Drill Bit Chrome Series:

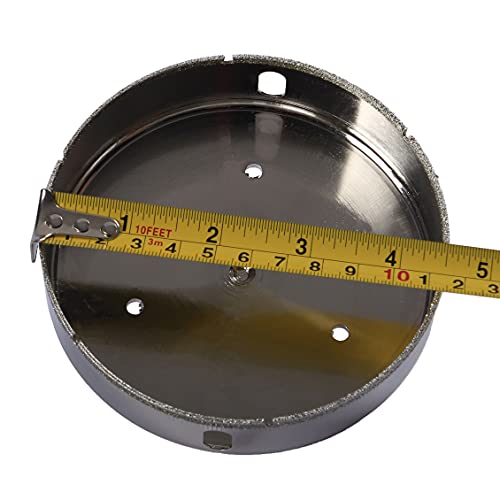

  • DUSTLESS - CLEAN - FAST DRILLING Through Ceramic, Porcelain Wall and Floor Tiles - TRUE 4.5 Inch Hole Diameter
  • Cuts Through Ceramic, Porcelain, Glass, Marble, Granite - Shower Valve, Toilet, Drain Holes

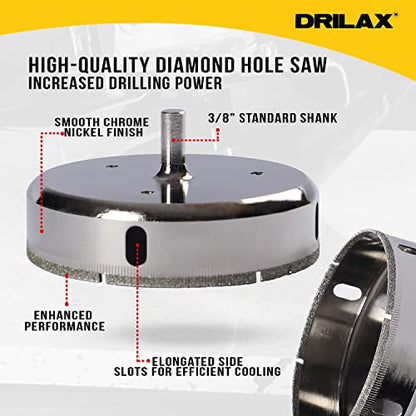

  • STANDARD 3/8 inch Shank for Standard Cordless - Electric Drills.

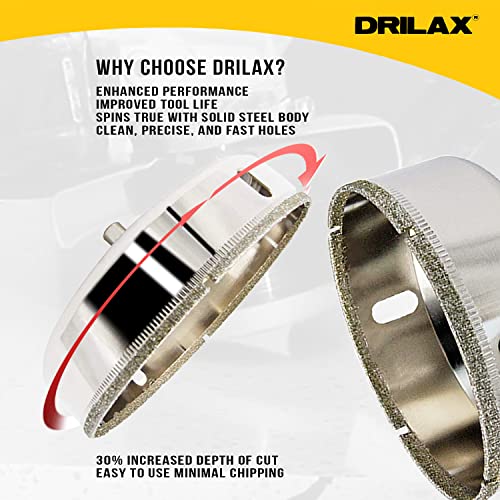

  • Depth of Cut - 1-1/8 inches
  • Does not have a pilot drill

Details:

Rare Size - Great Value

This Tool Does NOT Have Center Pilot Drill

Do NOT Use Dry

3/8 inch Shank Size

Can be used with Handheld or Upright Drillers



Drilax tools don't require center pilot holes, ideal for drilling up to 1 1/4" deep with superior performance and lifetime.



Shank size is 3/8" - common electric or rechargeable drillers can be used.

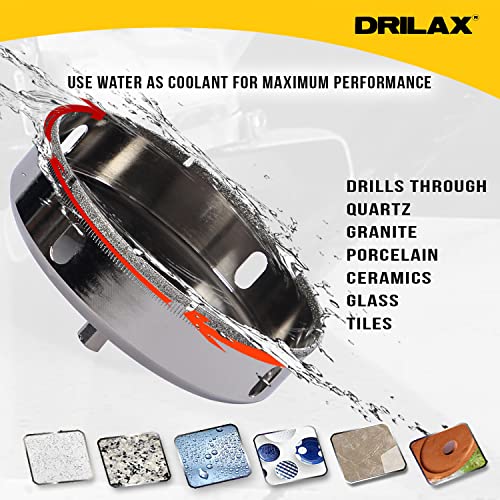

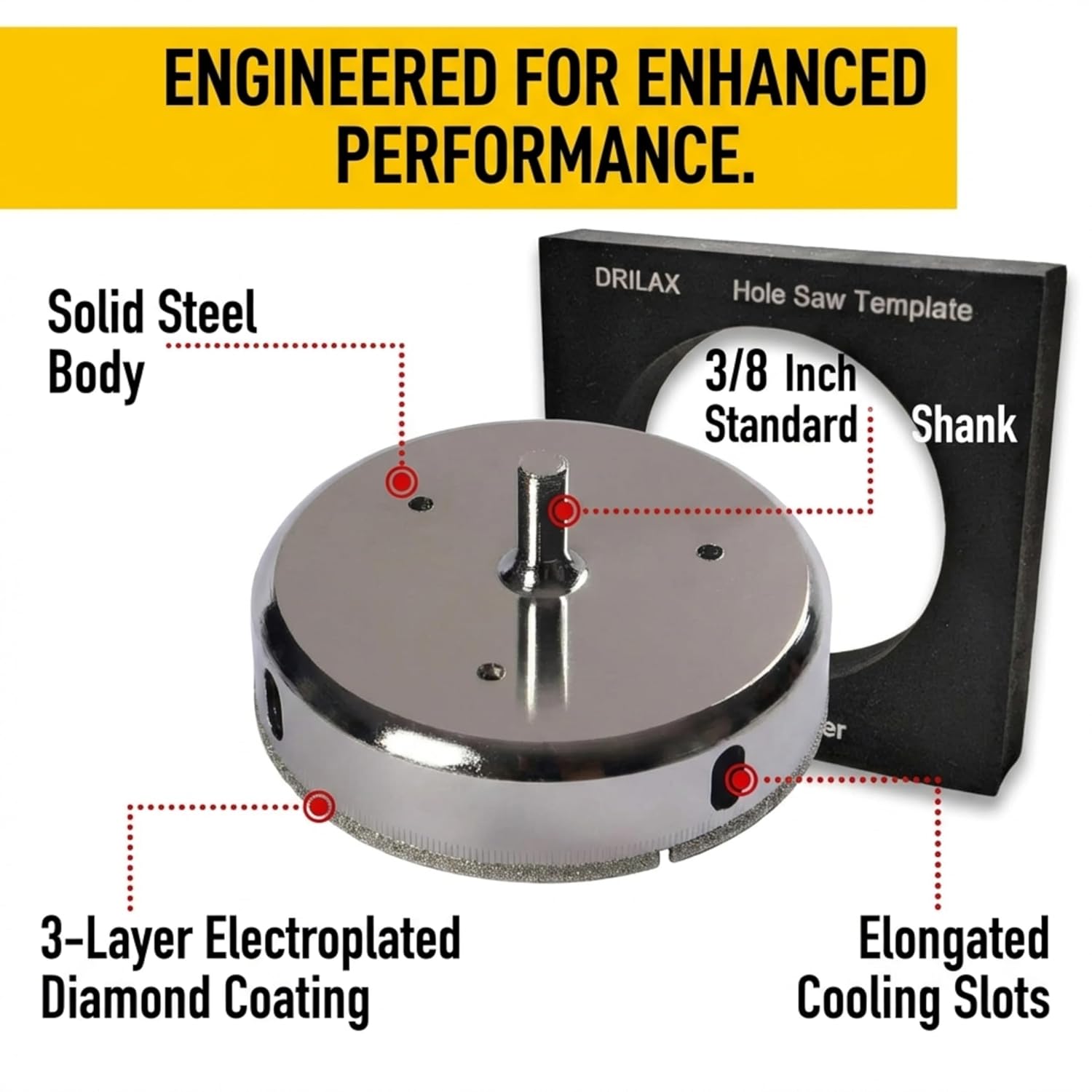

Electroplated diamond coating will wear off if the tool gets too hot. Never let your drill bit run dry. Here is how you could use water to keep the tool cool:
a- You can build a mini water dam around the hole with plumbers putty.
b- You can choose to spray water on the drill bit.
c- Or you can use running water to cool the drill bit.
EASY TO USE

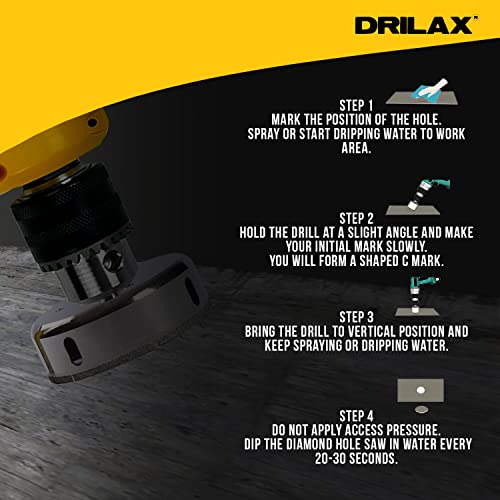

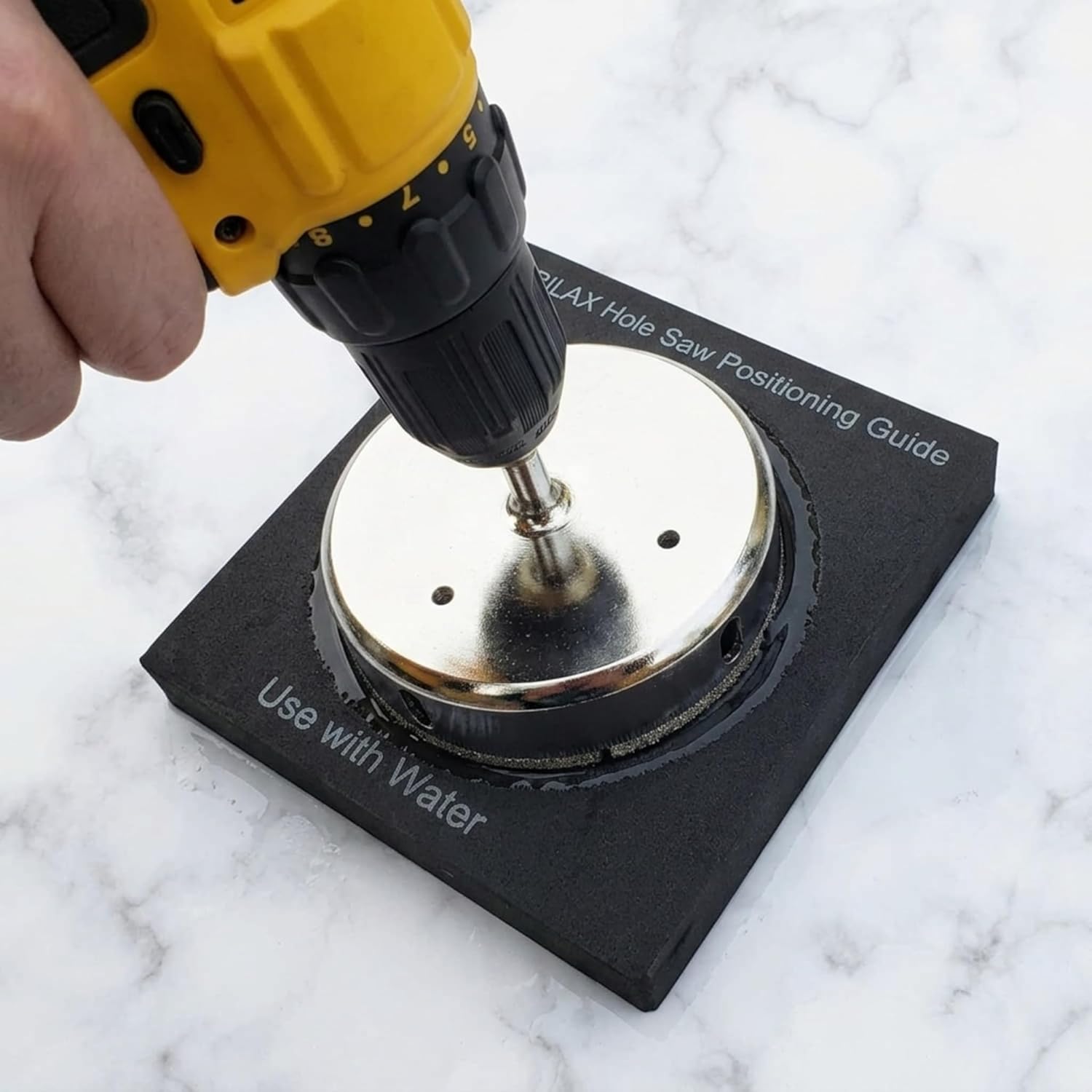

Center pilot drill bits are for wood, metal, etc.; Here is how you can keep the drill bit on target:
a- You can make your own guide out of plywood - plastic or even a card board. All you need is to keep the drill bit in place until it makes the initial marks.
b- You can start drilling at an angle, with the edge of the drill bit making a C slot and then getting the drill bit up to vertical.

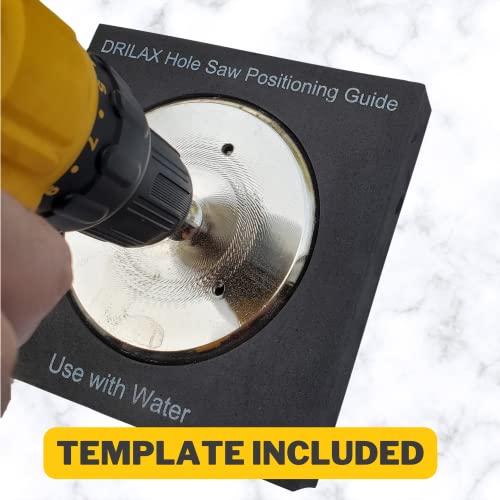

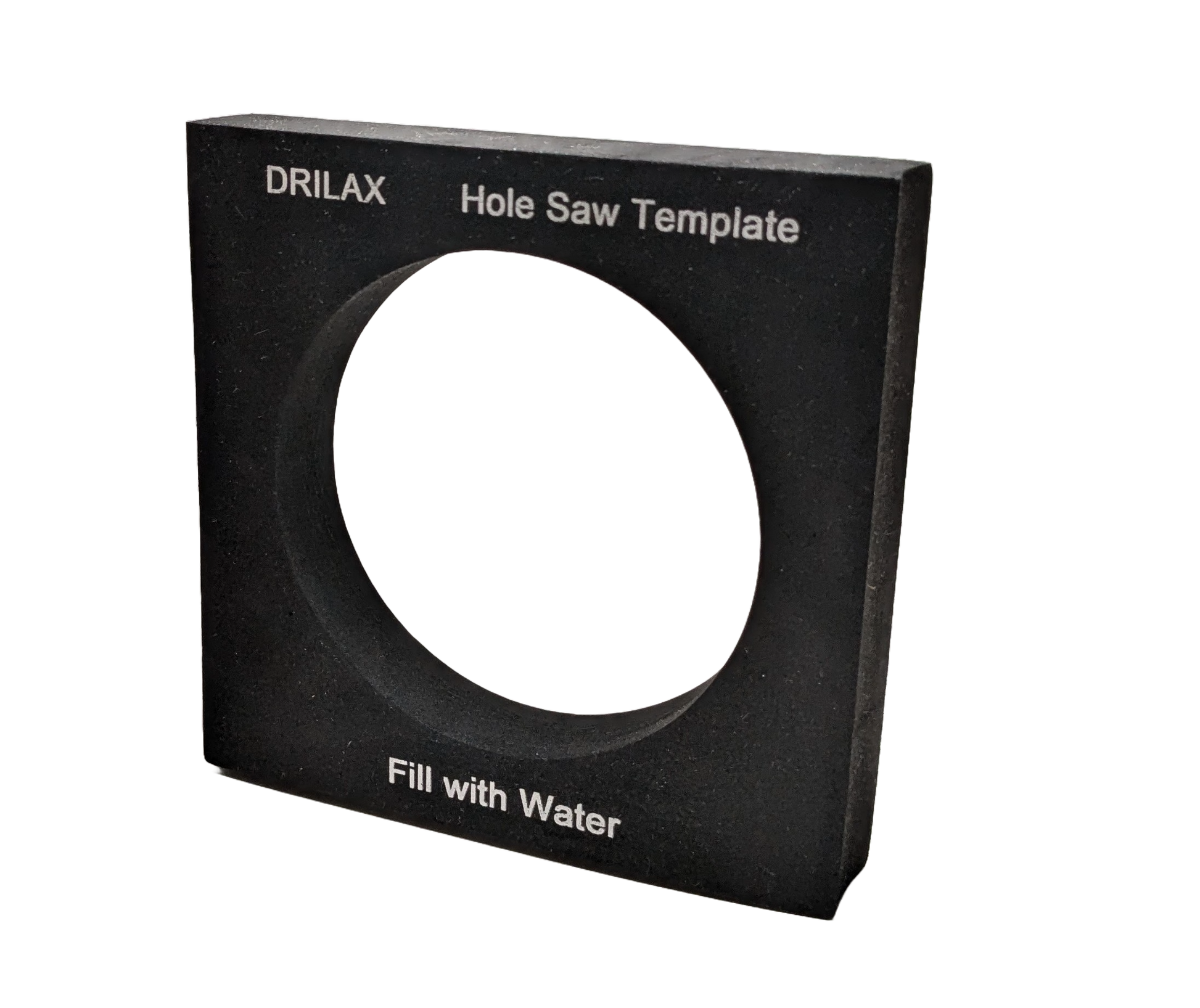

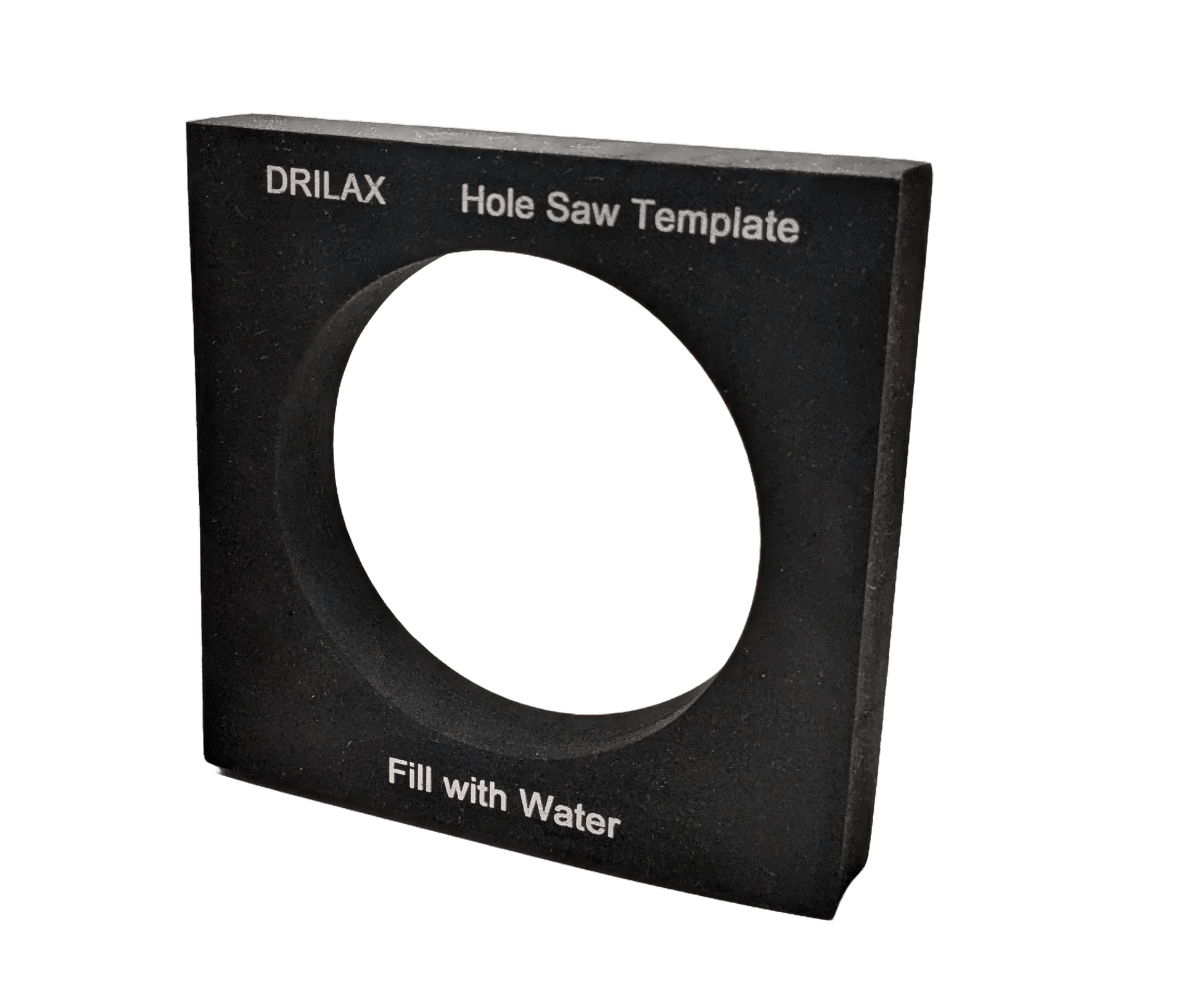

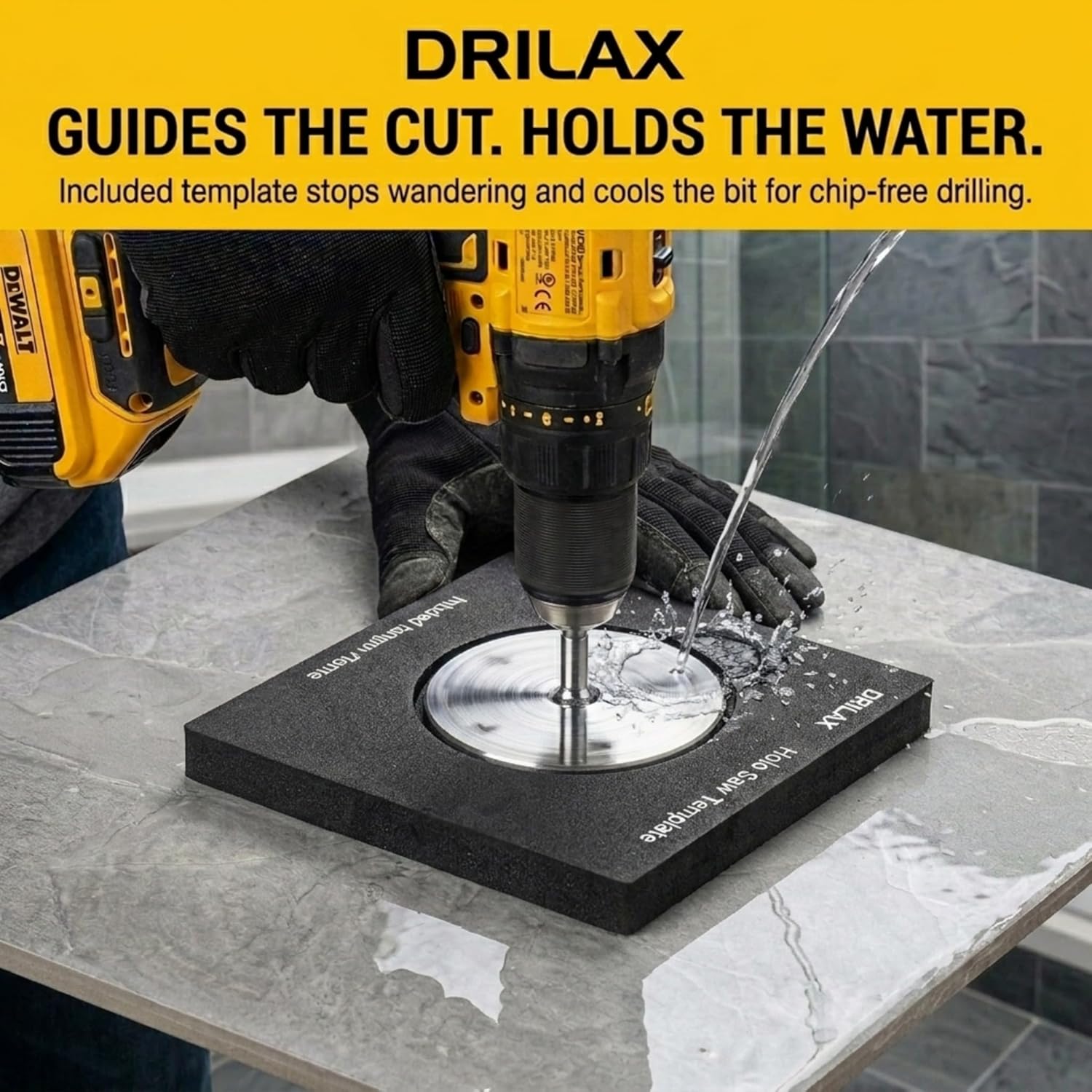

c- You can manually guide the drill bit with wet sponge. The diamond coating is designed to withstand heat and stay sharp, while the included guide allows for precise drilling with minimal effort. The combination of the two features allows for maximum efficiency and accuracy with each use.

Please use protective gear.

Amazon sells DRILAX Diamond Hole Saw Guide

UPC: 798167904674

EAN: 0046737337767

Binding: Kitchen

Item Condition: New


(134)

4.8 5


5
83%
4
14%
3
3%
2
0%
1
0%


1-10 134

Amazon Customer: Five Stars

April 14, 2017

Awesome diamond drill bit works great


cowboy construction: dose a great job

September 22, 2017

dose a great job


Oran: Awesome Tool!

August 31, 2017

I needed to cut a drain hole in tile plank. I made a wood template with a regular hole saw and centered it over my drain site. I kept the diamond hole saw wet during the cut. It took just a few minutes.


Jeff gust: Five Stars

August 21, 2017

It worked great very good


Tim the Tile Guy: Excellent Quality, Great Value

July 29, 2017

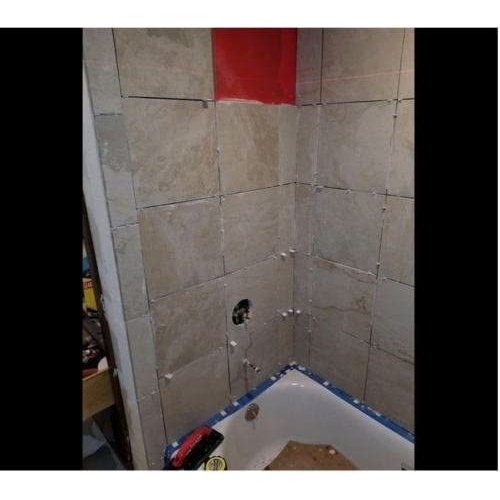

As my Amazon user name may suggest, I work as an installer of ceramic tile and stone. I have been fortunate enough in recent years to work with many clients specifying high end materials in large scale custom installations. More and more, these jobs entail the use of large format porcelain ceramic floor and wall tiles. I love the look of these behemoth tiles (commonly 12 x 24 or larger) but they certainly present some challenges when striving for a neat, clean installation.The job I am currently finishing is a good example of these challenges, as the design features 12 x 24 shower walls in two showers with large, custom niches in both. Heavy gauge (3/8") tiles of this size can be very tough to work with, due in large part to the internal stresses which accumulate within the tiles themselves as they are double fired. Attempting to cut anywhere near the edges very often ends in failure as the internal stresses relieve themselves with a sudden, uncontrolled crack. Even harder still is the job of cutting a large diameter hole to accommodate a shower control valve.I have always used a 4" diamond edged wheel in an angle grinder to make these cutouts in the past. I've had instances where I've had two or three tiles break before I have finally gotten the piece right. That can get expensive, and I have adopted the policy of not making any more than three attempts without at least taking a break and/ or trying something different. On this particular job, after breaking a record four tiles attempting to make that large hole, I looked online for an alternative.This 4 1/2" hole saw is exactly the right diameter to accommodate the shower valve seal that comes with the Schluter Shower System, which I try to use in every shower I do. It came in two days, and the price was significantly less than I pay for similar bits of much lesser diameter. I was skeptical.I am very practiced in using hole saws in tile, so the set up for me was easy. There is no central pilot drill in these bits, so one must use other methods to keep the bit from wandering whilst starting the hole. You also must use a low RPM drill and keep the work and the bit wet. Go slowly.Long story short....it worked flawlessly on the very first attempt. Neat edged hole through rock hard porcelain tile very near to the edge of a 12 x 24 tile.Highly recommended.


tony: Five Stars

May 25, 2017

Great product! Great price! Absolutely no complaints.


Dj: It worked great. Only took a few seconds to cut through ...

April 24, 2017

It worked great. Only took a few seconds to cut through my tile and grout. Made a nice clean hole to run my dryer vent. It is a wet saw so I had my wife dripping water from a glass.


Carol Nace: These work great for contractors doing multiple tile jobs

April 18, 2017

These work great for contractors doing multiple tile jobs. Will cut all types of tiles and have used it on granite. Quick, smooth, and easy to use. Just make a template board.


Marcia Formica: hooked up easily to the drill press

February 26, 2017

Needed this to cut a hole for a floor drain in ceramic tile for a laundry room. Got here in a day, hooked up easily to the drill press, and it worked like a charm.


Jim Burke: Cuts like a hot knife through butter

March 2, 2017

Just what I needed for my new bathroom tile job
