5 Inch Diamond Hole Saw – Tile, Porcelain, Glass & Granite (Chrome Series)
5 Inch Diamond Hole Saw – Tile, Porcelain, Glass & Granite (Chrome Series)
A 5 inch Chrome Series diamond hole saw for clean, chip-free holes in tile, porcelain, glass, granite and quartz.
Couldn't load pickup availability

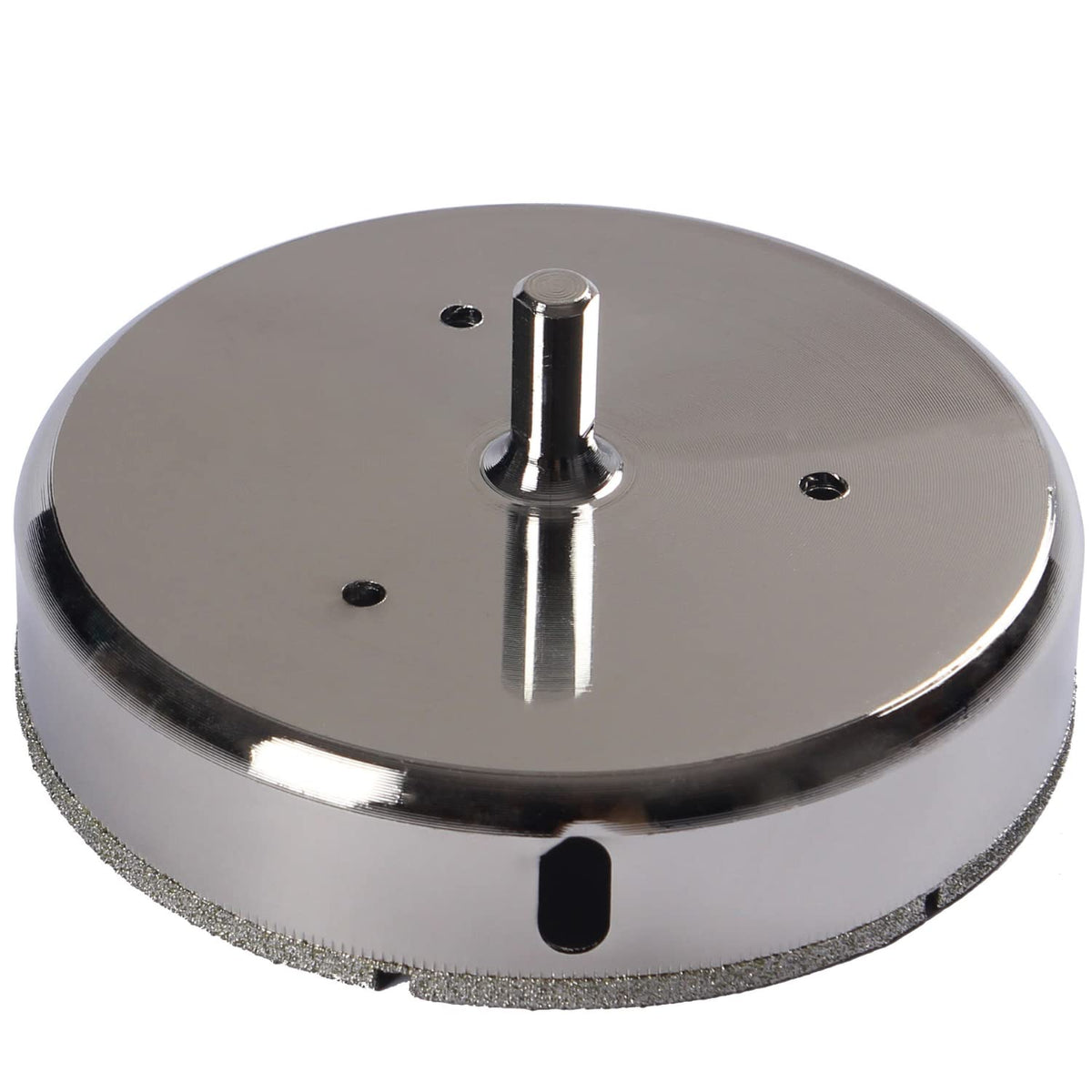

The Drilax 5 Inch Chrome Series Diamond Hole Saw cuts clean, round 5 inch openings in porcelain, ceramic, tile, glass, granite, quartz and marble. A triple layer of electroplated diamond on a solid steel body grinds through hard, brittle materials instead of cracking them, so you get a smooth hole without an angle grinder. It has a 1-1/8 inch depth of cut and a standard 3/8 inch shank that fits the drill you already own. It is sized for shower valves, toilet flanges and other large openings in countertops, walls and bathroom surfaces.
Benefits

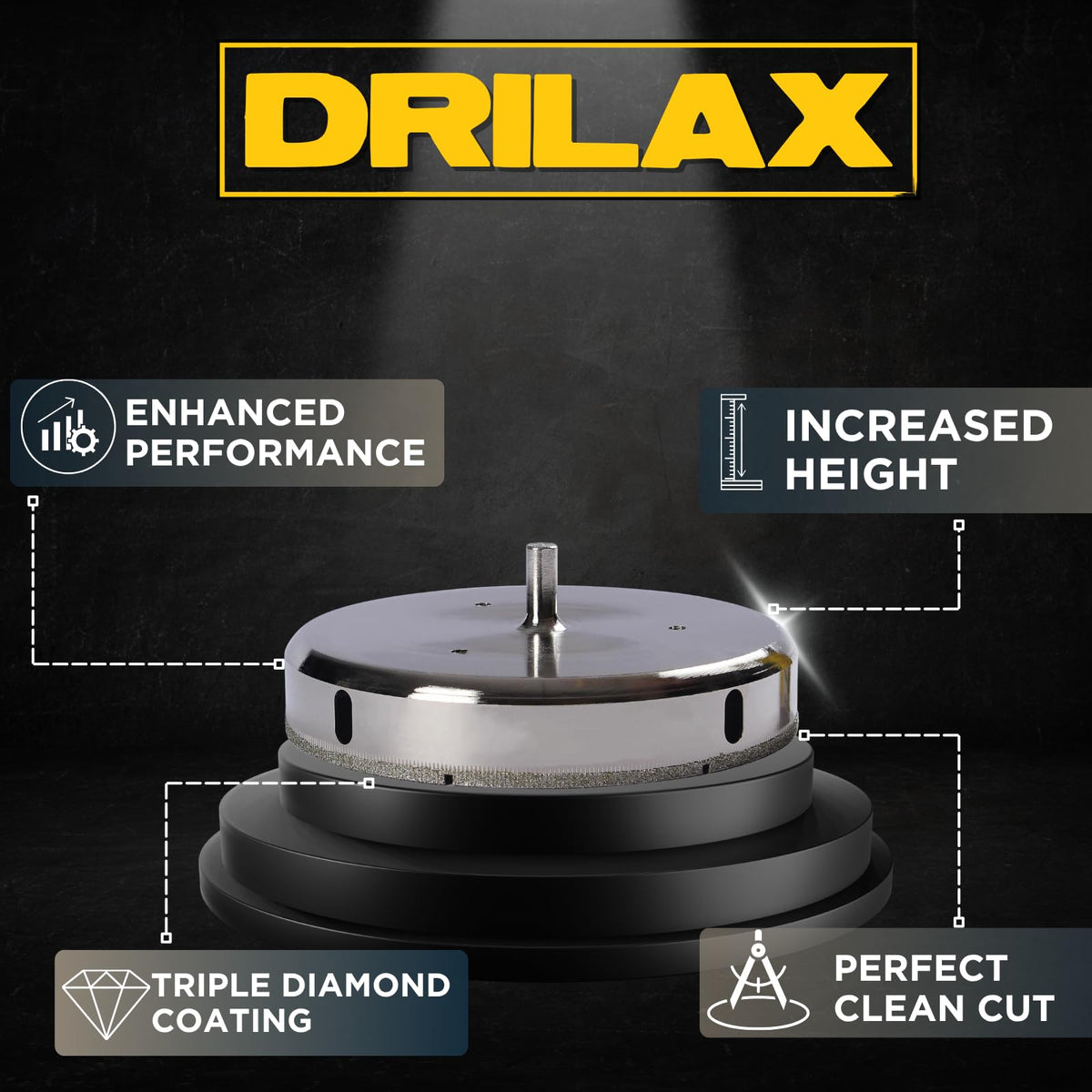

Triple-Layer Diamond Coating: Electroplated diamond grit on a notched rim grinds clean, chip-free holes in tile, stone and glass.
Solid Steel Body: Spins true with less wobble, even on a hand drill, and holds up to repeated large cuts.
1-1/8" Depth of Cut: Clears full tile and backer board, and thick countertops.
3/8" Standard Shank: Fits standard corded and cordless drills and drill presses, no adapter needed.
Compatible Materials
Compatible Materials
- Materials: Porcelain, ceramic, tile, glass, granite, quartz, marble and natural stone.
- Tool Compatibility: Standard corded and cordless drills and drill presses.
- Not For: Concrete, brick, metal or wood. Do not use hammer mode or run it dry.

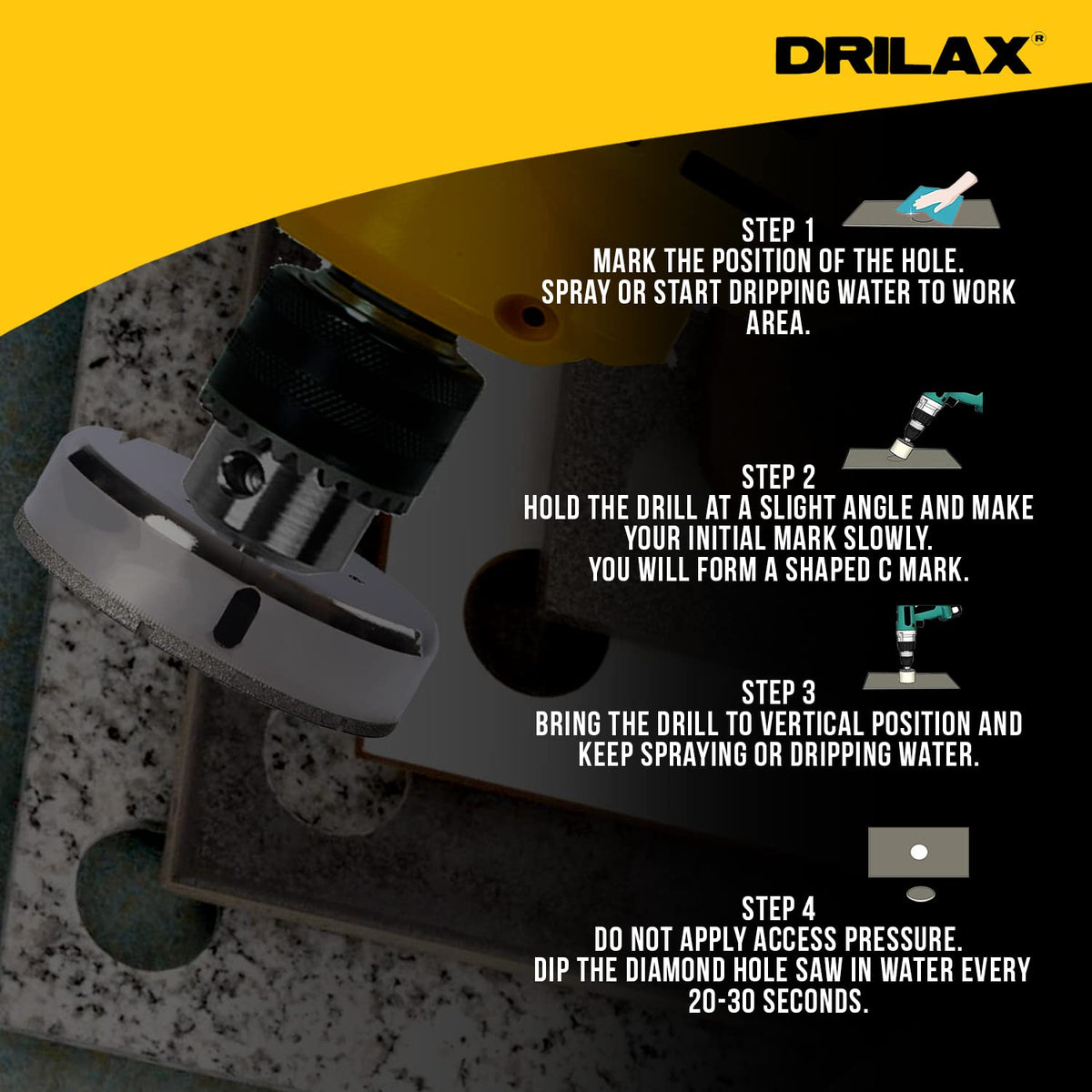

How To Use
How To Use
- Mark & Wet: Mark the hole and add water, or spray or drip water on the spot. A ring of plumber's putty makes a small water dam.
- Start at an Angle: Hold the drill at a slight angle and drill slowly to cut a C-shaped groove. A scrap-wood template with a matching hole also keeps the bit from wandering.
- Bring to Vertical: Slowly bring the drill upright and keep the cut wet.
- Light Pressure: Use low speed and let the diamonds do the work. Dip the bit in water every 20–30 seconds.
Use Cases
Use Cases
- Shower Valves: Valve openings in tile.
- Toilet Flanges: Openings for toilet flange installs.
- Recessed Lighting: Large light openings in tile.
- Countertops & Walls: Large openings in stone and tile surfaces.
Technical Specifications
Technical Specifications

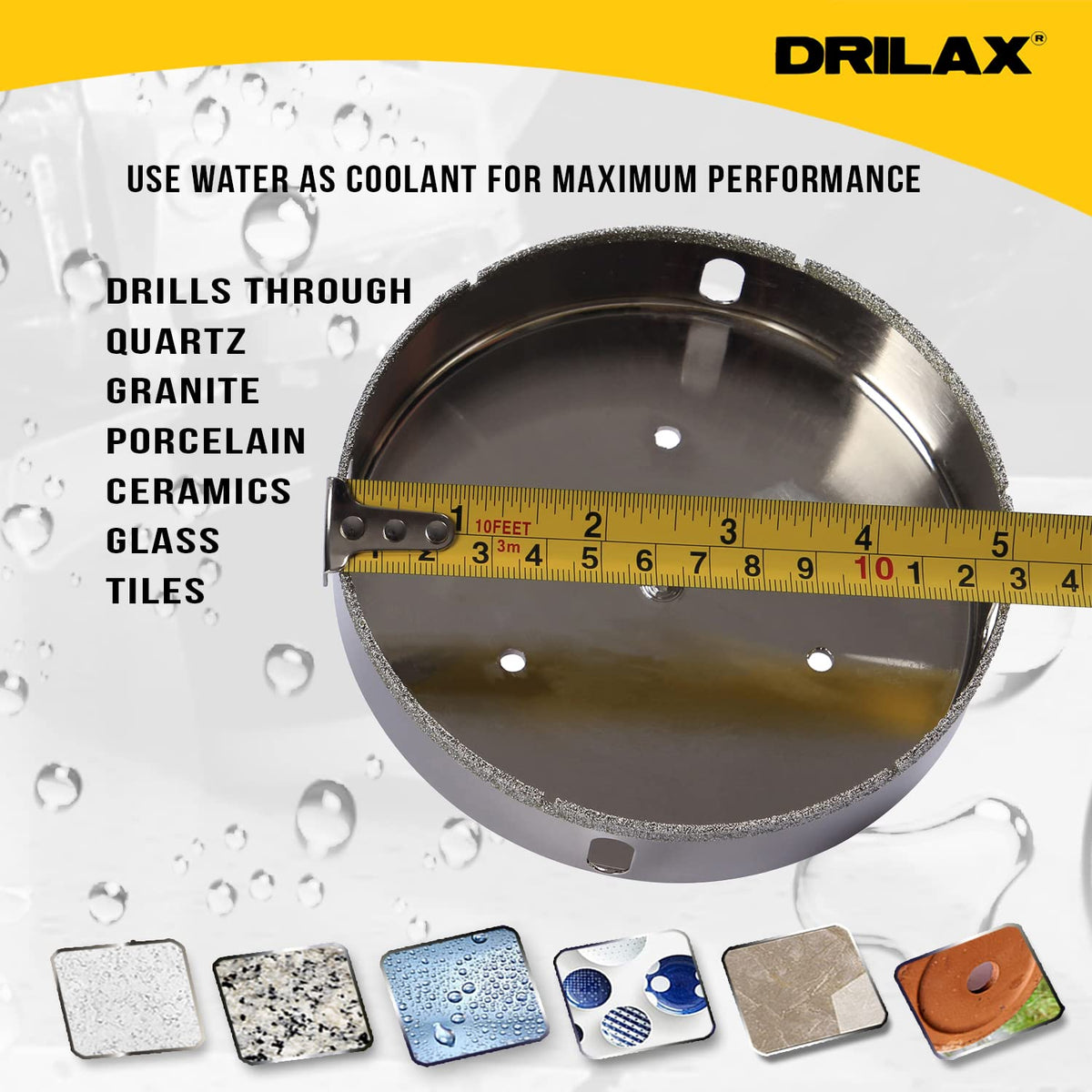

- Hole Diameter: 5 inches

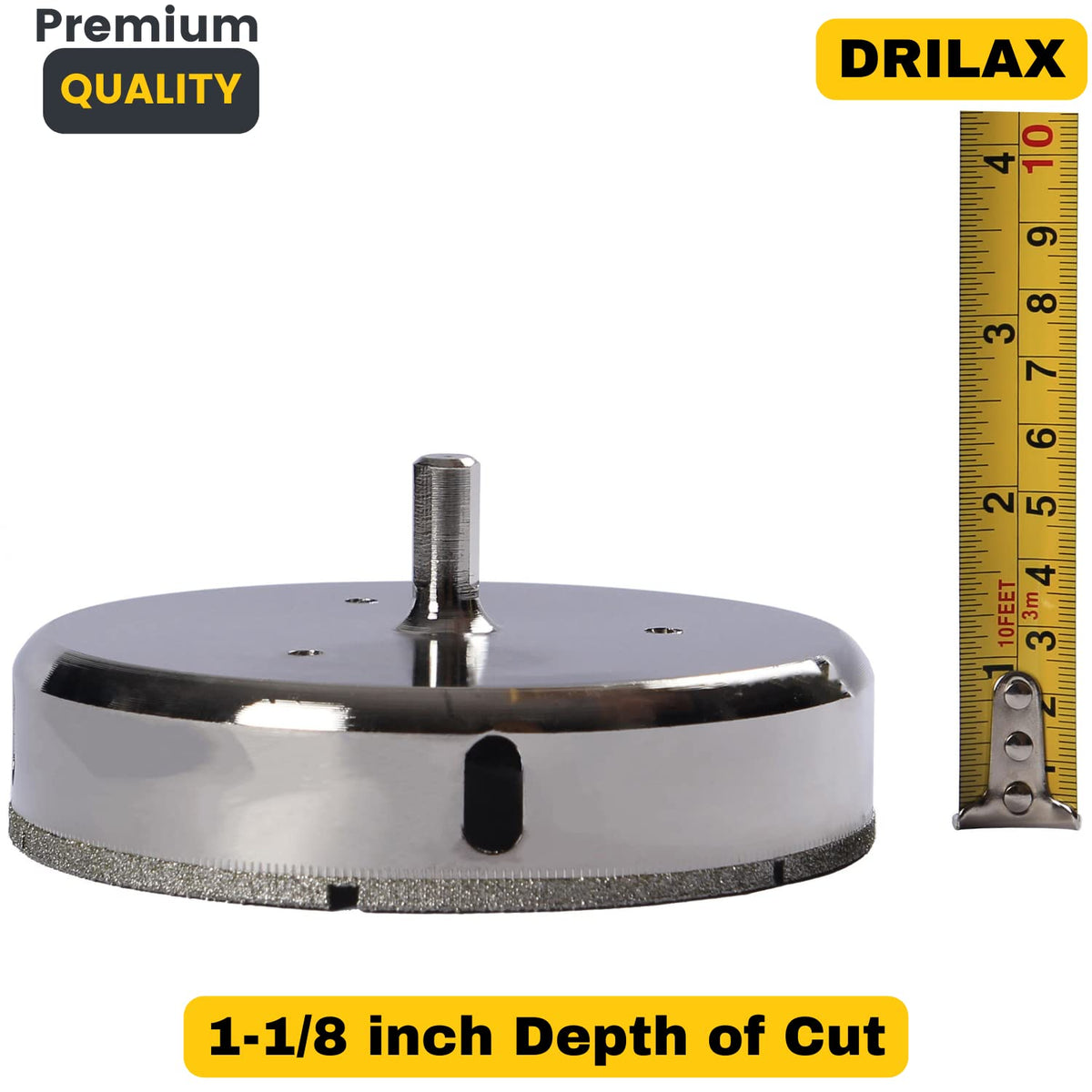

- Depth of Cut: 1-1/8 inches

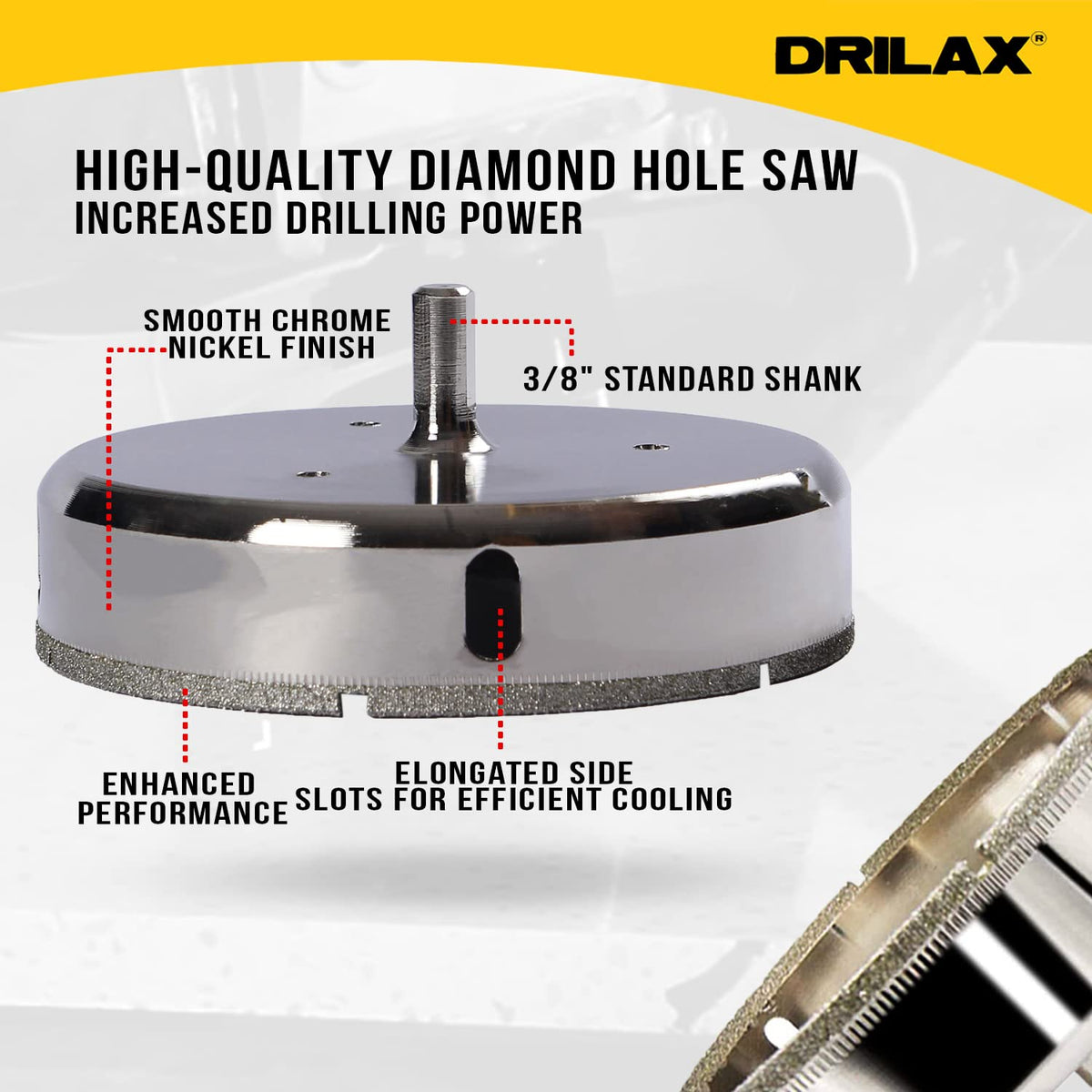

- Shank: 3/8 inch standard

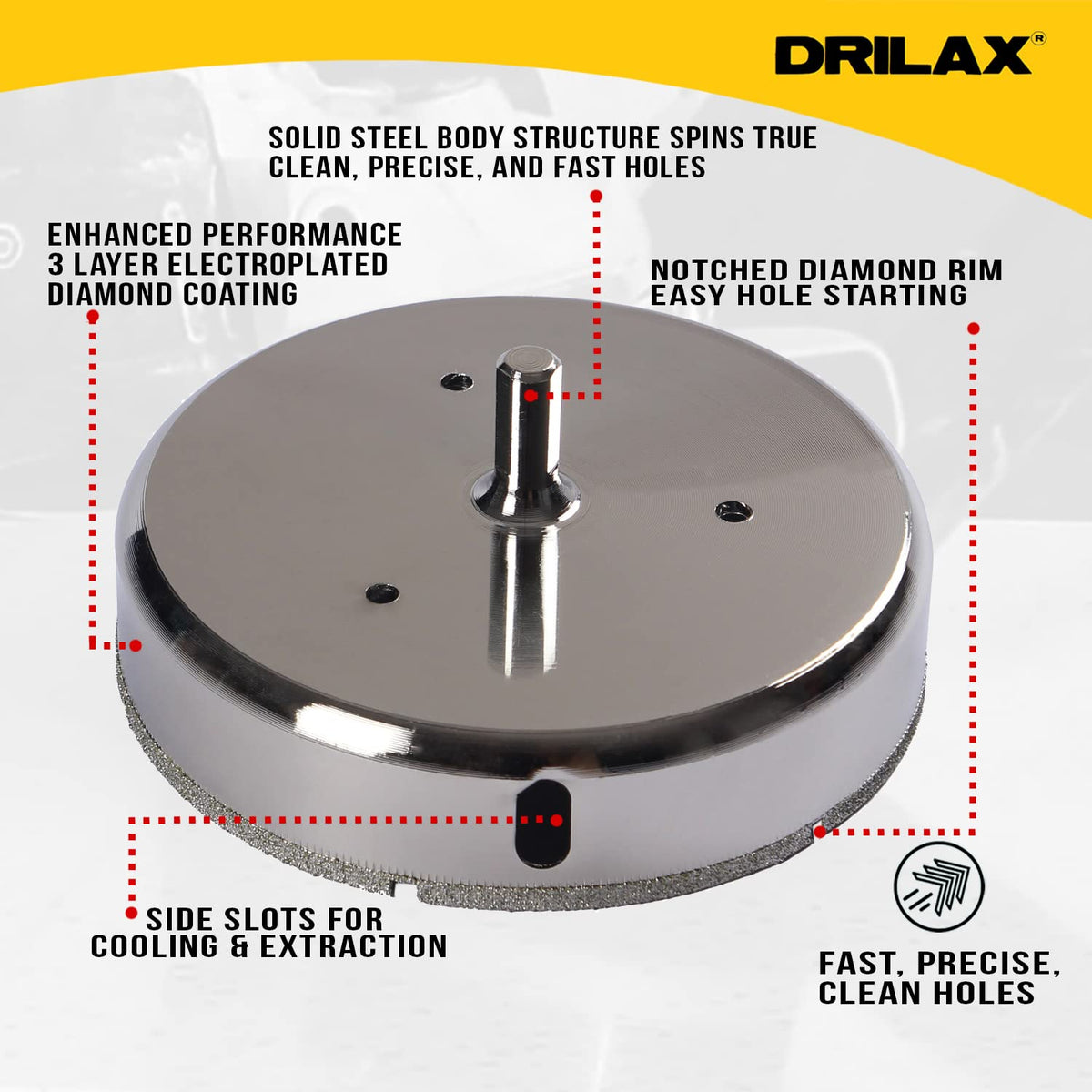

- Body: Solid steel, chrome nickel finish
- Cutting Surface: Triple-layer electroplated diamond
- Pilot Bit: None (start at an angle or use a guide)
- Use Type: Wet drilling only
F.A.Q.
F.A.Q.
Q: What materials can it drill?
A: Porcelain, ceramic tile, glass, granite, quartz, marble and natural stone. It is not designed for concrete, brick, metal or wood.
Q: Do I need water?
A: Yes. This is a wet-use bit. Keep the cut wet to cool the diamonds, control dust and get a clean, chip-free hole. Running it dry wears the diamond coating quickly.
Q: How do I start without a pilot bit?
A: Start at a slight angle to cut a small groove, then bring the drill upright. A scrap-wood template with a matching hole also works.
Q: Will it fit my drill?
A: Yes. The 3/8 inch standard shank fits most corded and cordless drills and drill presses.
Q: What is the difference between Chrome and Vacuum Brazed hole saws?
A: Chrome Series bits have an electroplated diamond coating and are a great value for tile, glass and occasional stone work. Vacuum brazed bits have a tougher diamond layer for heavy use on granite and quartz.
Shipping & Returns
Shipping & Returns
All DRILAX orders are fulfilled directly from our New Jersey headquarters or a regional warehouse strategically located near you. We offer Free Shipping on all orders with no minimum purchase required. Most customers receive their precision tools within 2-3 business days, ensuring your project stays on schedule.
We have a 30-day return policy.
