1-3/8 Inch Vacuum Brazed Diamond Hole Saw – Extra-Deep Cut for Tile, Granite, Quartz & Glass
1-3/8 Inch Vacuum Brazed Diamond Hole Saw – Extra-Deep Cut for Tile, Granite, Quartz & Glass
A 1-3/8 inch vacuum brazed diamond hole saw with a 1-3/8 inch cut depth for clean holes in tile, porcelain, granite, quartz and glass.
Couldn't load pickup availability

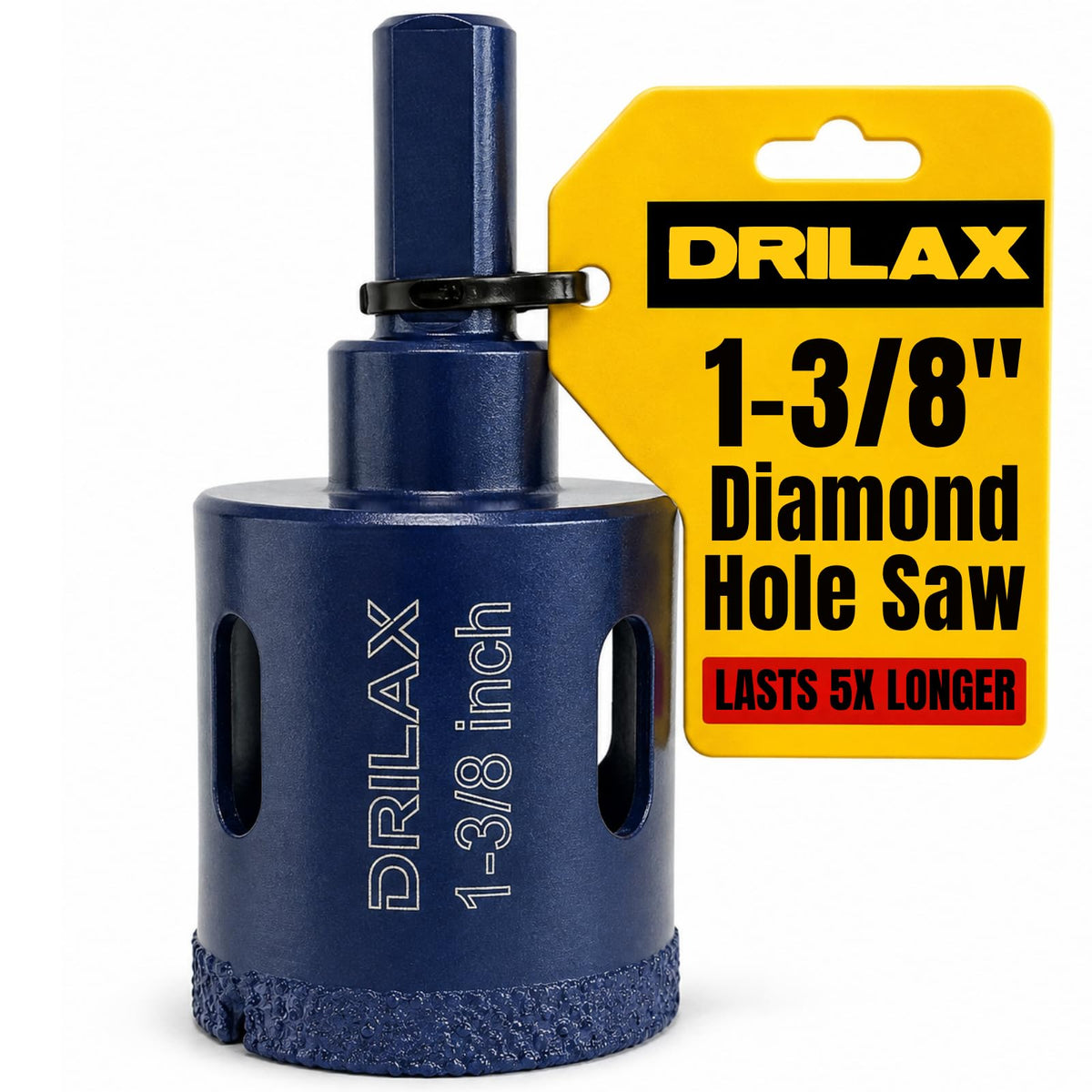

The Drilax 1-3/8 Inch Vacuum Brazed Diamond Hole Saw drills clean, chip-free 1-3/8 inch holes in porcelain, ceramic, tile, granite, quartz, marble and glass. Industrial diamonds are vacuum brazed in a thick layer onto a solid steel body, so the bit cuts faster and lasts longer than standard electroplated hole saws. The taller body gives a 1-3/8 inch depth of cut, about 30% deeper than standard bits, so it goes through thick countertops and slabs in one pass. 1-3/8 inch is the standard size for kitchen faucet and soap dispenser holes.

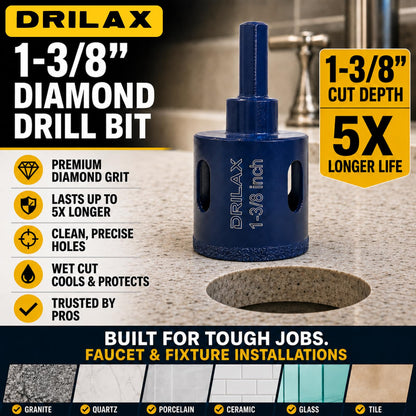

Benefits

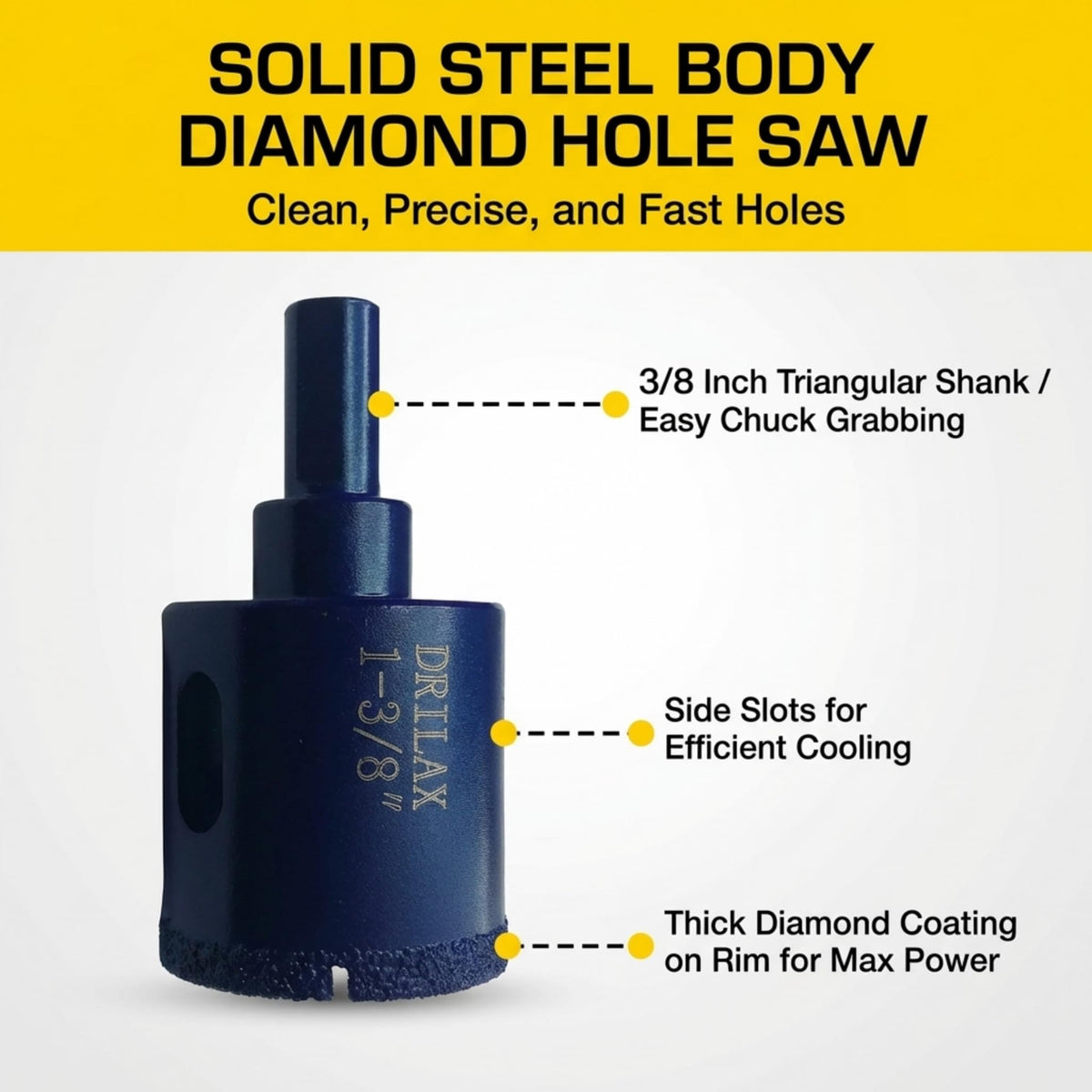

Vacuum Brazed Diamonds: A thick diamond layer bonded to the rim for faster cutting and up to 5x longer life than electroplated bits.
1-3/8" Depth of Cut: About 30% deeper than standard bits, for 3 cm countertops and thick slabs in a single pass.
Side Cooling Slots: Let water in and debris out, and make it easy to push the core out.
3/8" Triangular Shank: Fits standard corded and cordless drills, and the flat sides keep it from slipping in the chuck.
Compatible Materials
Compatible Materials
- Materials: Porcelain, ceramic, tile, granite, quartz, marble, natural stone and glass.
- Tool Compatibility: Standard corded and cordless drills and drill presses.
- Not For: Wood, metal, plastic or masonry block. Do not use hammer mode.

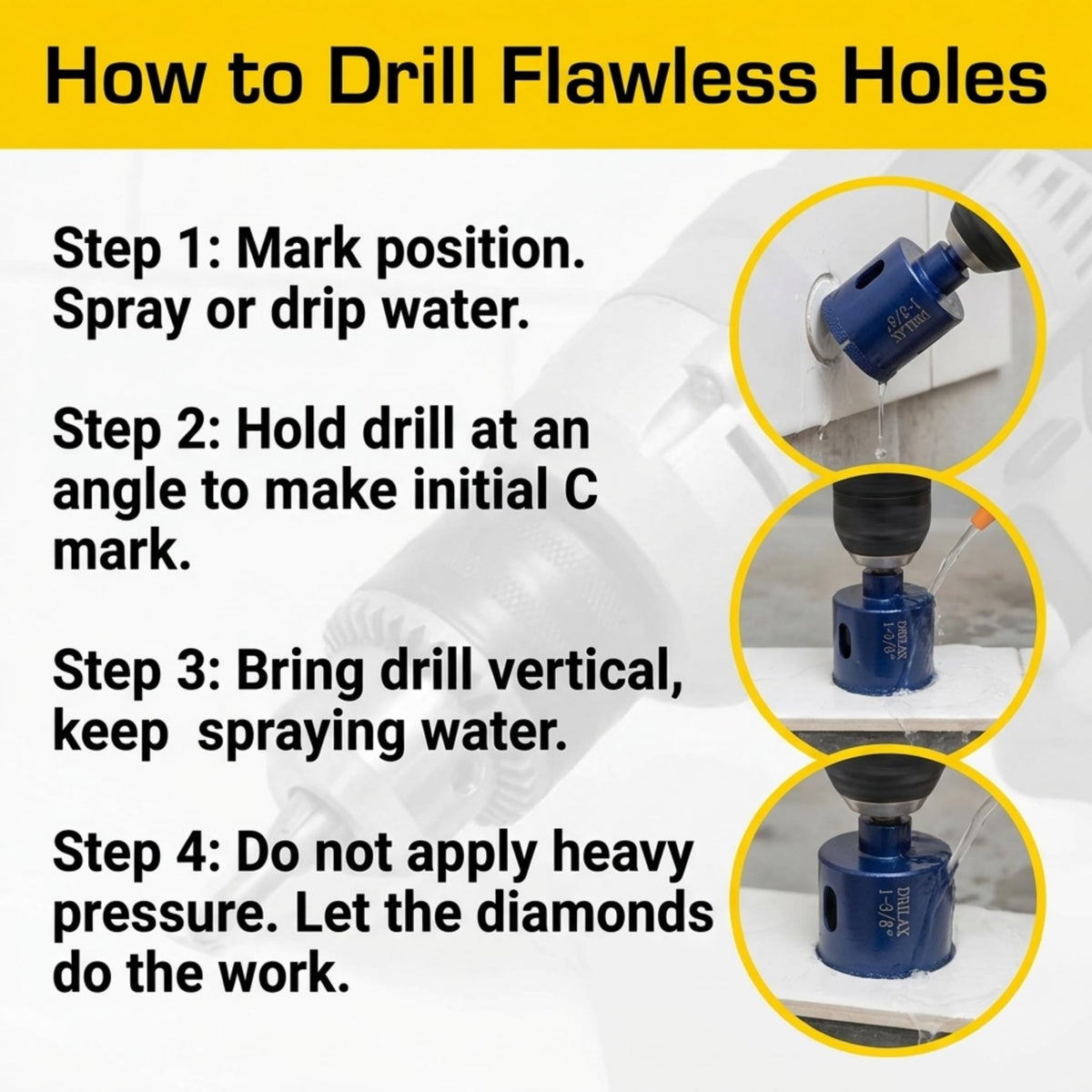

How To Use
How To Use
- Mark & Wet: Mark the hole position and spray or drip water on the work area.
- Start at an Angle: There is no pilot bit. Hold the drill at a slight angle and drill slowly to cut a small C-shaped groove, or use a drill guide or a scrap-wood template.
- Bring to Vertical: Slowly bring the drill upright and keep spraying or dripping water on the cut.
- Light Pressure: Let the diamonds do the work. Don't push hard, and dip the bit in water every 20–30 seconds.
Use Cases
Use Cases
- Kitchen Faucets: Standard 1-3/8 inch faucet holes in granite, quartz and marble countertops.
- Sink Accessories: Soap dispenser, sprayer and disposal air switch holes.
- Shower & Bath: Shower handle and valve stem holes in wall tile.
- Planters & Glass: Drainage holes in ceramic pots and holes in glass.

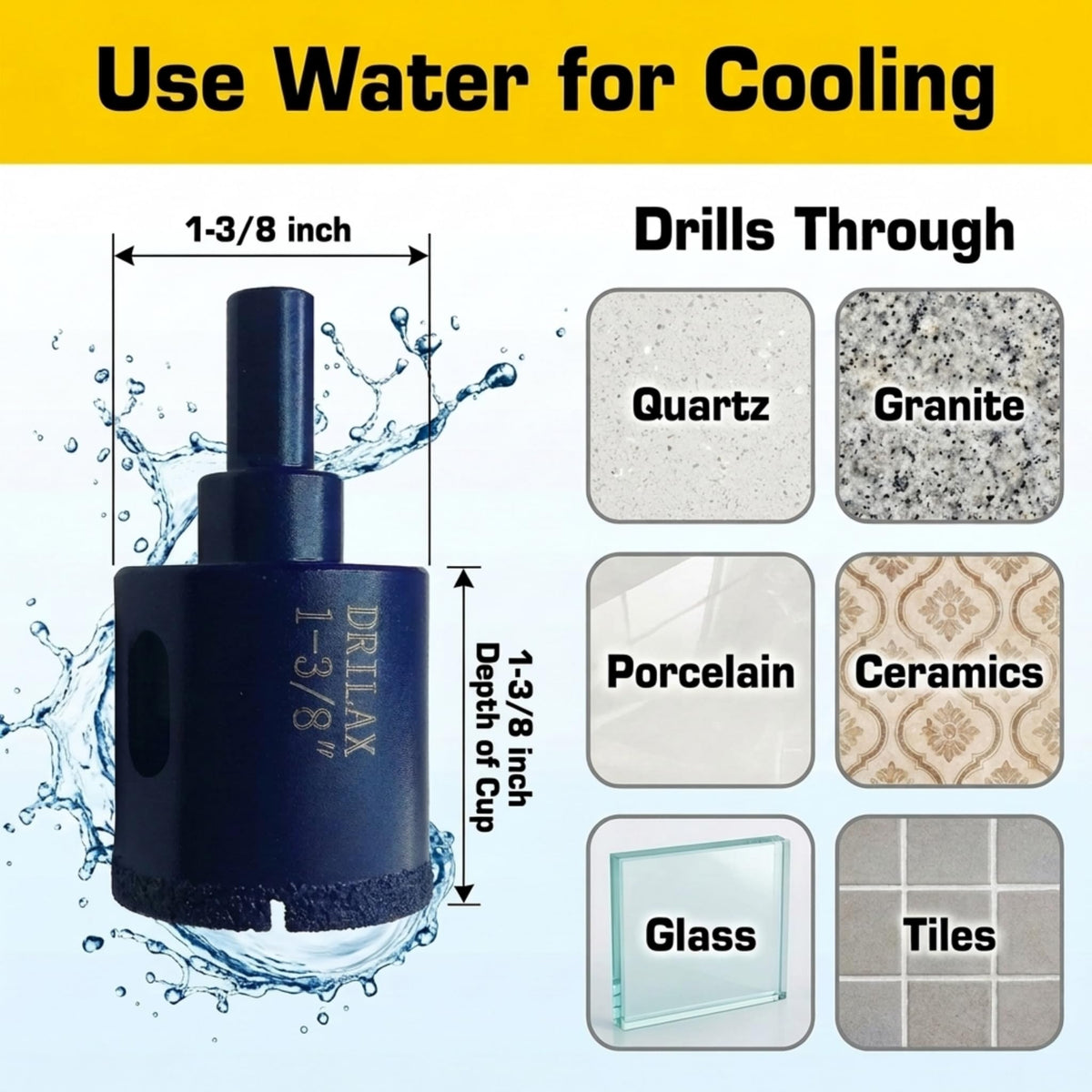

Technical Specifications
Technical Specifications
- Hole Diameter: 1-3/8 inches
- Depth of Cut: 1-3/8 inches
- Shank: 3/8 inch triangular
- Body: Solid steel
- Cutting Surface: Vacuum brazed diamond
- Pilot Bit: None (start at an angle or use a guide)
- Use Type: Wet drilling
F.A.Q.
F.A.Q.

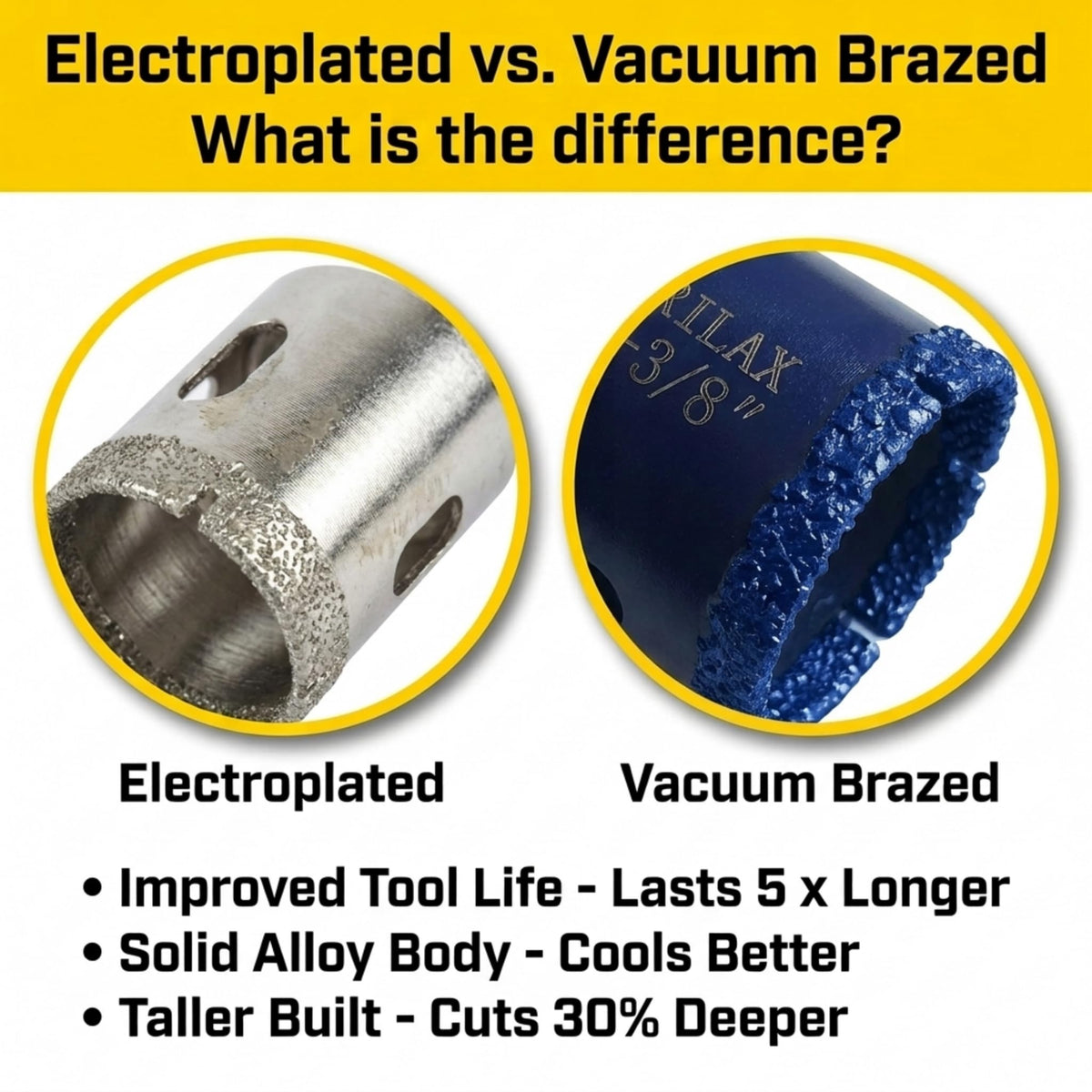

Q: What is the difference between vacuum brazed and electroplated hole saws?
A: Vacuum brazed bits have a thicker, stronger diamond layer, so they cut faster and last up to 5x longer than electroplated bits.
Q: Is it compatible with my drill?
A: Yes. The 3/8 inch triangular shank fits standard corded drills, cordless drills and drill presses with no adapter.
Q: Do I need water?
A: Yes. Keep the cut wet the whole time to cool the bit, control dust and get a clean, chip-free hole.
Q: How do I start without a pilot bit?
A: Start at a slight angle to cut a small groove, then bring the drill upright. A drill guide or a scrap-wood template with a matching hole also works.
Q: How thick a countertop can it drill?

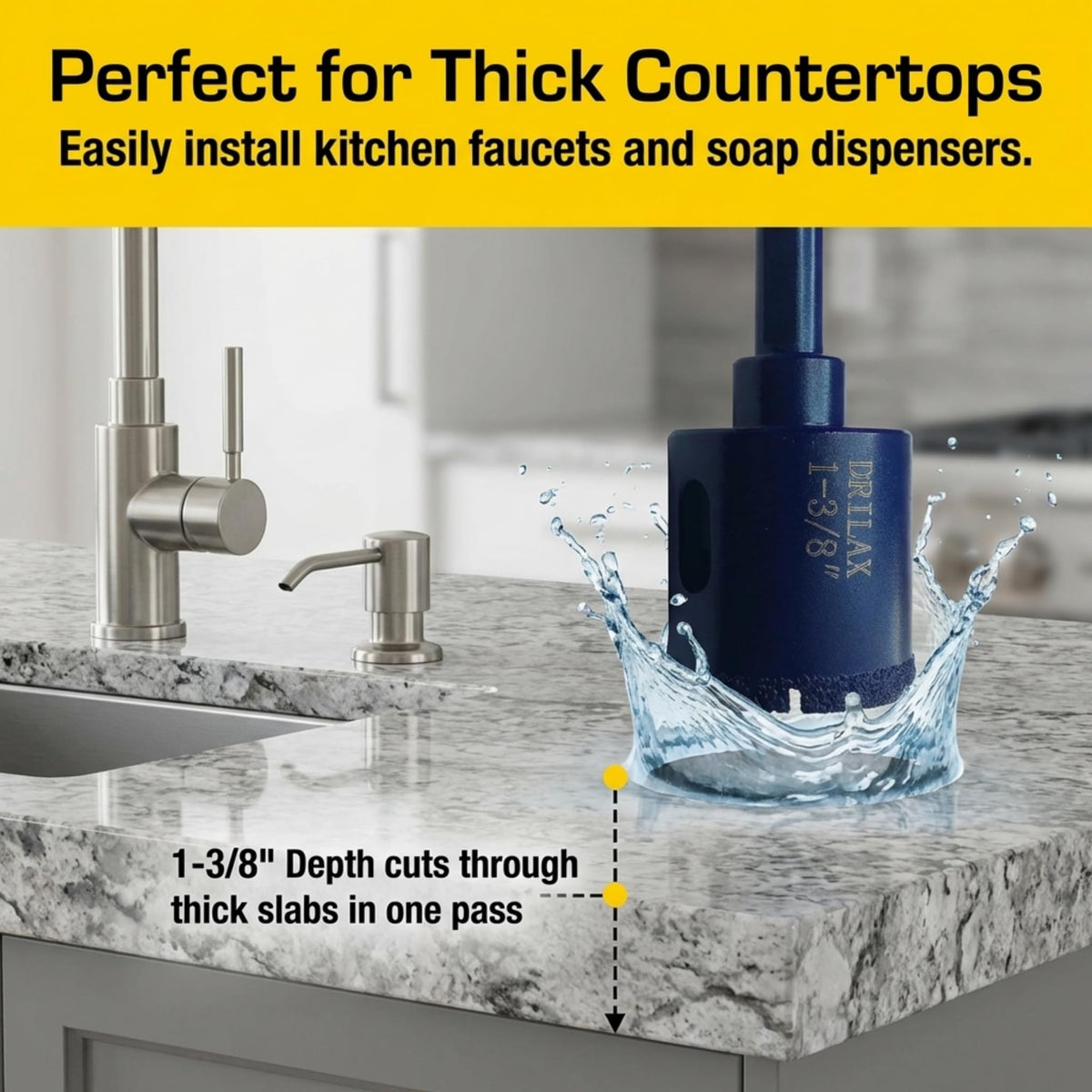

A: The 1-3/8 inch cutting depth goes through standard 3 cm granite and quartz countertops in one pass.
Shipping & Returns
Shipping & Returns
All DRILAX orders are fulfilled directly from our New Jersey headquarters or a regional warehouse strategically located near you. We offer Free Shipping on all orders with no minimum purchase required. Most customers receive their precision tools within 2-3 business days, ensuring your project stays on schedule.
We have a 30-day return policy.
